Disassembly/Assembly > Controller System > Layout Drawing(LBP3580/6780x)
Disassembly/Assembly > Controller System > Layout Drawing(LBP3580/6780x)

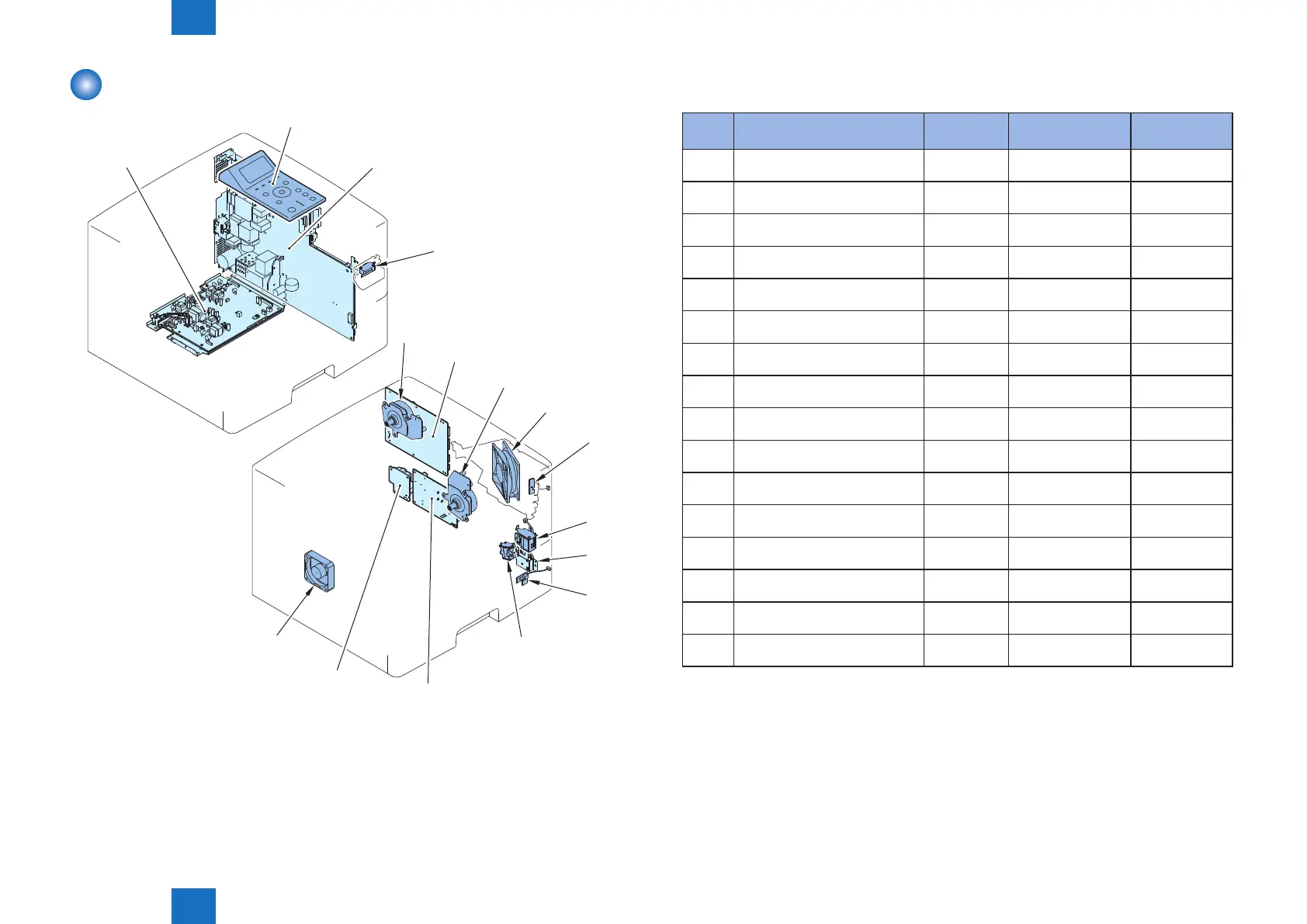

Layout Drawing(LBP3580/6780x)
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[1]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[2]
F-3-47
Key No. Name Main Unit Adjastment during
parts replacement
Reference
[1] High Voltage Power Supply Unit Product
Conguration
- (Refer to page
3-42)
[2] Control Panel Unit Product
Conguration
- (Refer to page
3-29)
[3] Engine Controller PCB Product
Conguration
- (Refer to page
3-37)
[4] Cartridge Door Switch Product
Conguration
- (Refer to page
3-57)
[5] Fixing Motor Product
Conguration
- (Refer to page
3-49)
[6] Main Controller PCB Product
Conguration
(Refer to page 3-5) (Refer to page
3-31)
[7] Main Motor Product
Conguration
- (Refer to page
3-46)
[8] Main Fan Product
Conguration
- (Refer to page
3-50)
[9] Environment Sensor Product
Conguration
- (Refer to page
3-42)
[10] Multi-purpose Tray Pickup
Solenoid
Product
Conguration
- (Refer to page
3-53)
[11] Main Switch Unit Right Lower
Cover
- (Refer to page
3-40)
[12] Cassette Sensing Switch Product
Conguration
- (Refer to page
3-57)
[13] Cassette Pickup Solenoid Product
Conguration
- (Refer to page
3-55)
[14] All-night Power Supply PCB Product
Conguration
- (Refer to page
3-32)
[15] AC Relay PCB Product
Conguration
- (Refer to page
3-34)
[16] Sub Fan Product
Conguration
- (Refer to page
3-51)
T-3-24
