Disassembly/Assembly > External Cover, Internal Cover > Removing the Right Front Inner Cover > Procedure
Disassembly/Assembly > External Cover, Internal Cover > Removing the Right Front Inner Cover > Procedure

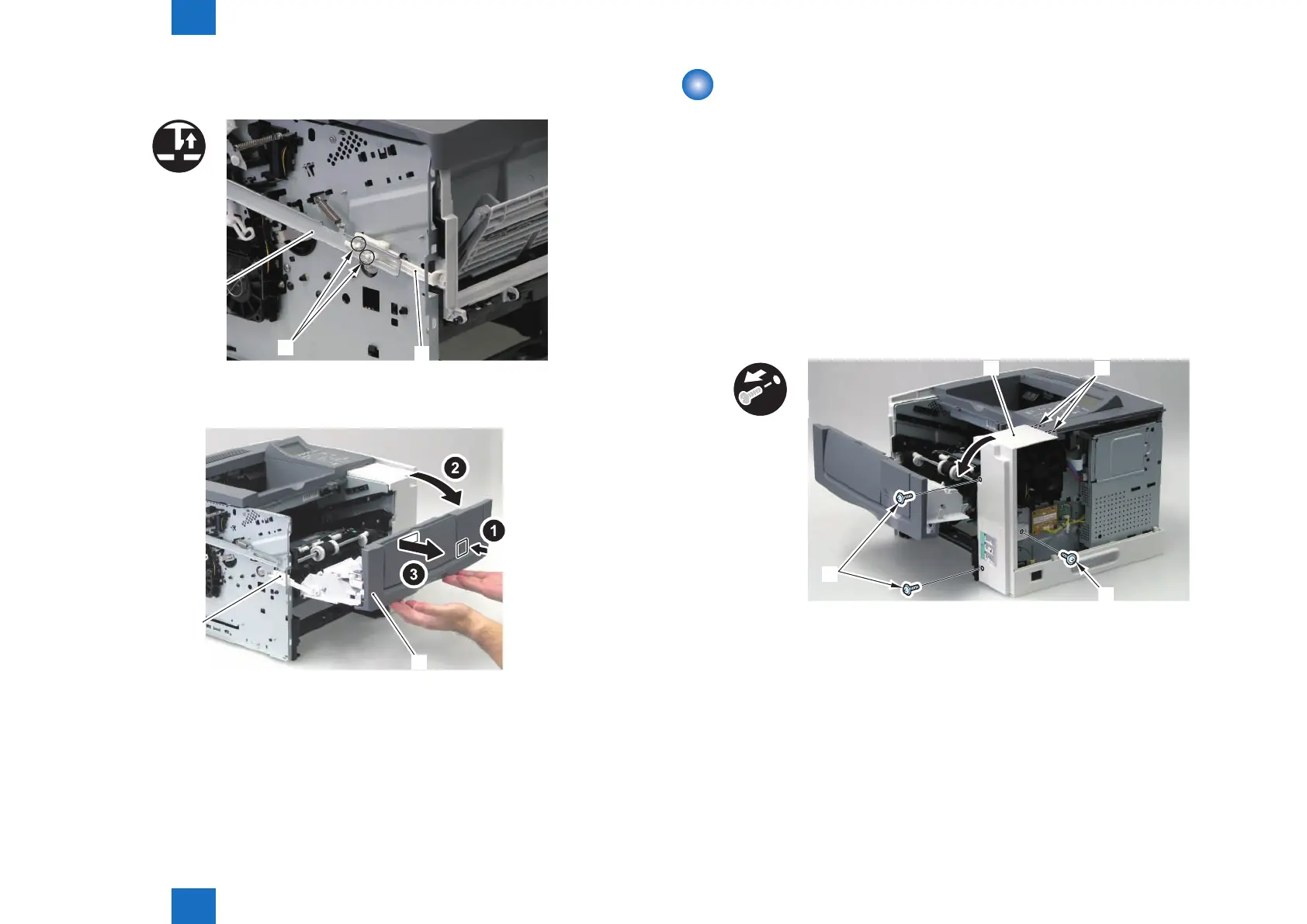

3) Release the Hinge Arm [1] from the Link Arm [2].
• 2 Claws [3]
x2
[1]
[2]
[3]
4) Remove the Front Cover Unit [1] by opening it.
• 1 Hinge Arm [2]
[1]
[2]
F-3-35
F-3-36
Removing the Right Front Inner Cover
■
Preparation
1) Remove the Multi-purpose Tray Auxiliary Tray Unit.(Refer to page 3-20)
2) Remove the Right Cover.(Refer to page 3-17)
■
Procedure
1) Remove the Cassette.
2) Open the Front Cover Unit.
3) Remove the Right Front Inner Cover [1].
• 2 Screws (silver) [2]
• 1 Screw (black) [3]
• 2 Hooks [4]
x3
[1]
[2]
[4]
[3]
F-3-37
