Disassembly/Assembly > Controller System > Removing the Control Panel Unit (LBP3580/6780x) > Procedure
Disassembly/Assembly > Controller System > Removing the Control Panel Unit (LBP3580/6780x) > Procedure

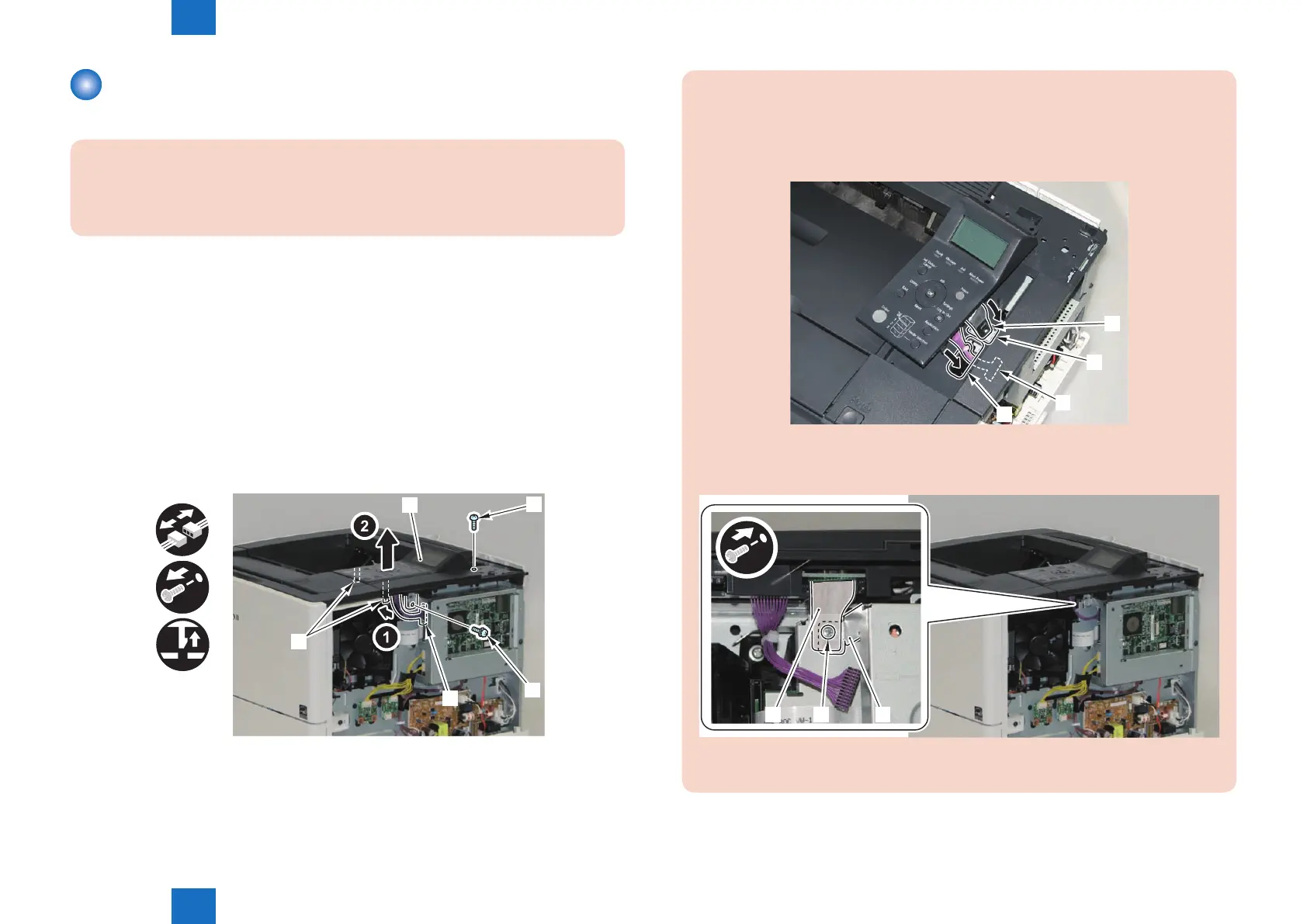

Removing the Control Panel Unit
(LBP3580/6780x)
CAUTION:
When replacing this part, execute the actions to be taken when replacing the Main
Controller PCB.
■
Preparation
1) Remove the Right Cover.(Refer to page 3-17)
2 Remove the USB Cover Unit.(LBP3580/6780x)(Refer to page 3-24)
■
Procedure
1) Remove the Control Panel Unit [1].
1 Connector [2]
1 Screw (W Sems) [3]
1 Screw (Binding) [4]
2 Claws [5]
x2
x2
[1]
[5]
[2]
[3]
[4]
F-3-52
CAUTION:
When installing the Control Panel Unit, be sure to note the following points.
• Be sure to put the connector [1] through the hole [A] of the Upper Cover and put the
grounding sheet [2] through the hole [B] of the Upper Cover.
[2]
[B]
[A]
[1]
• Place the grounding sheet [1] on the outside of the Main Controller Cover [2] and
secure them together with the removed screw [3].
[1] [2][3]
F-3-53
F-3-54
