Technology > Controller System > DC Controller > Motor control
Technology > Controller System > DC Controller > Motor control
Symbol for component Component
Motor M8001 Main Motor
M8002 Fixing Motor
Fan FM1 Main Fan
FM2 Sub Fan
Solenoid SL1 Multi-purpose Tray Pickup Solenoid
SL2 Cassette Pickup Solenoid
Photointerrupter PS1 Face-up Sensor
PS2 Fixing Delivery Sensor
PS3 Cassette Media Presence Sensor
PS4 Face-down Tray Media Full Sensor
PS205 Multi-purpose Tray Media Presence Sensor
PS215 TOP Sensor
PS225 Media Width Sensor
PS502 Duplex Media Feed Sensor
PS8001 Rear Door Sensor
Switch SW235 Cassette Presence Switch
SW240 Power Switch
SW250 Test Print Switch
SW501 Cartridge Door Switch
T-2-3
■

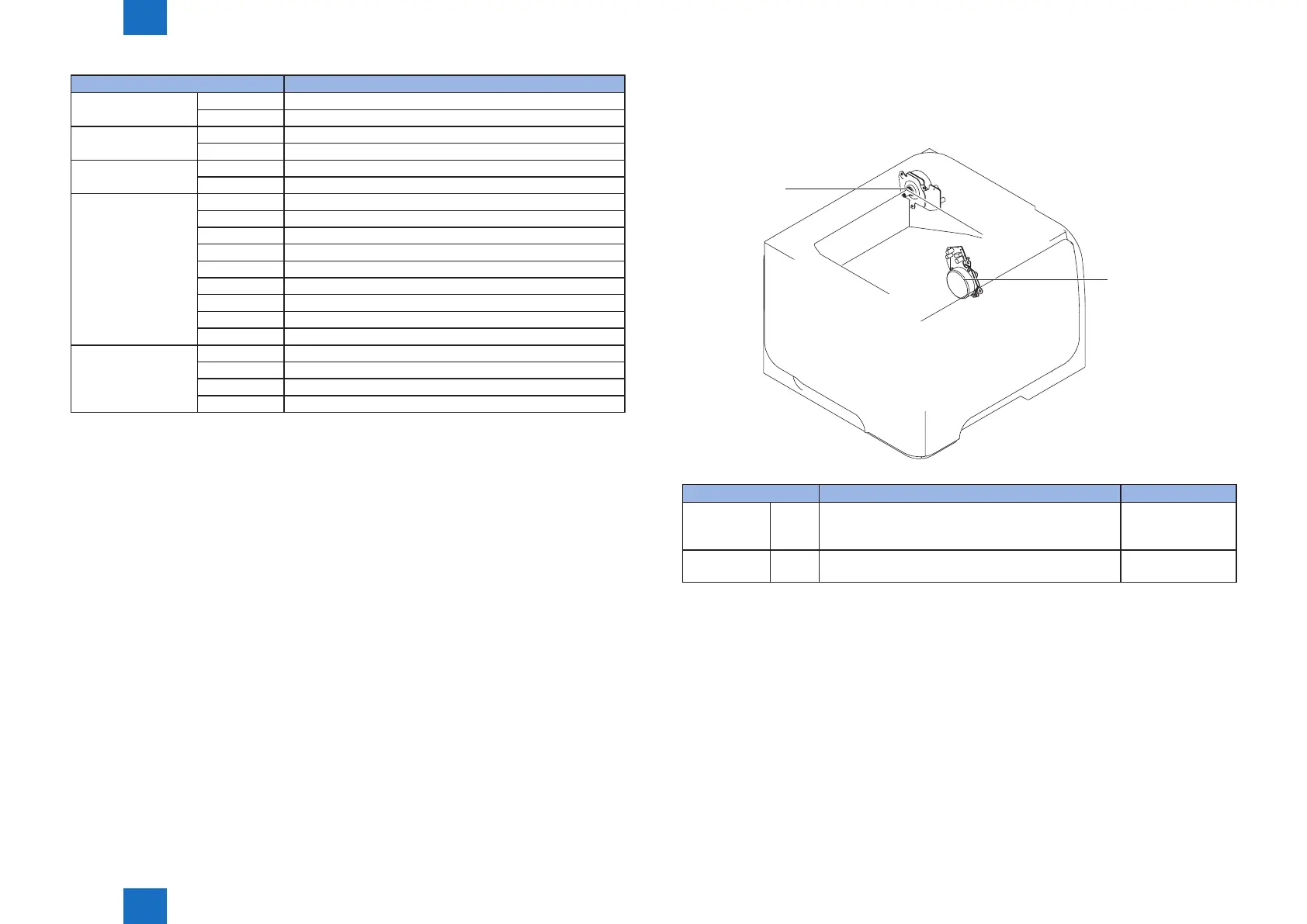

Motor control
The printer has one motor for media feed and image formation.
Arrangement of motor and the specications are shown below.
Main motor
Fixing motor
Description Driving part Failure detection
Main Motor M8001 Pickup Roller,Feed Roller,Transfer
Roller,Photosensitive Drum,Developing Roller,Dupiex
Re-pickup Roller and Duplex Feed Roller
Yes
Fixing Motor M8002 Pressur Roller,Delivery Roller and Fixing Delivery
Roller
Yes
F-2-20
T-2-4
