Disassembly/Assembly > Controller System > Layout Drawing(LBP3560/6750dn)
Disassembly/Assembly > Controller System > Layout Drawing(LBP3560/6750dn)
Controller System

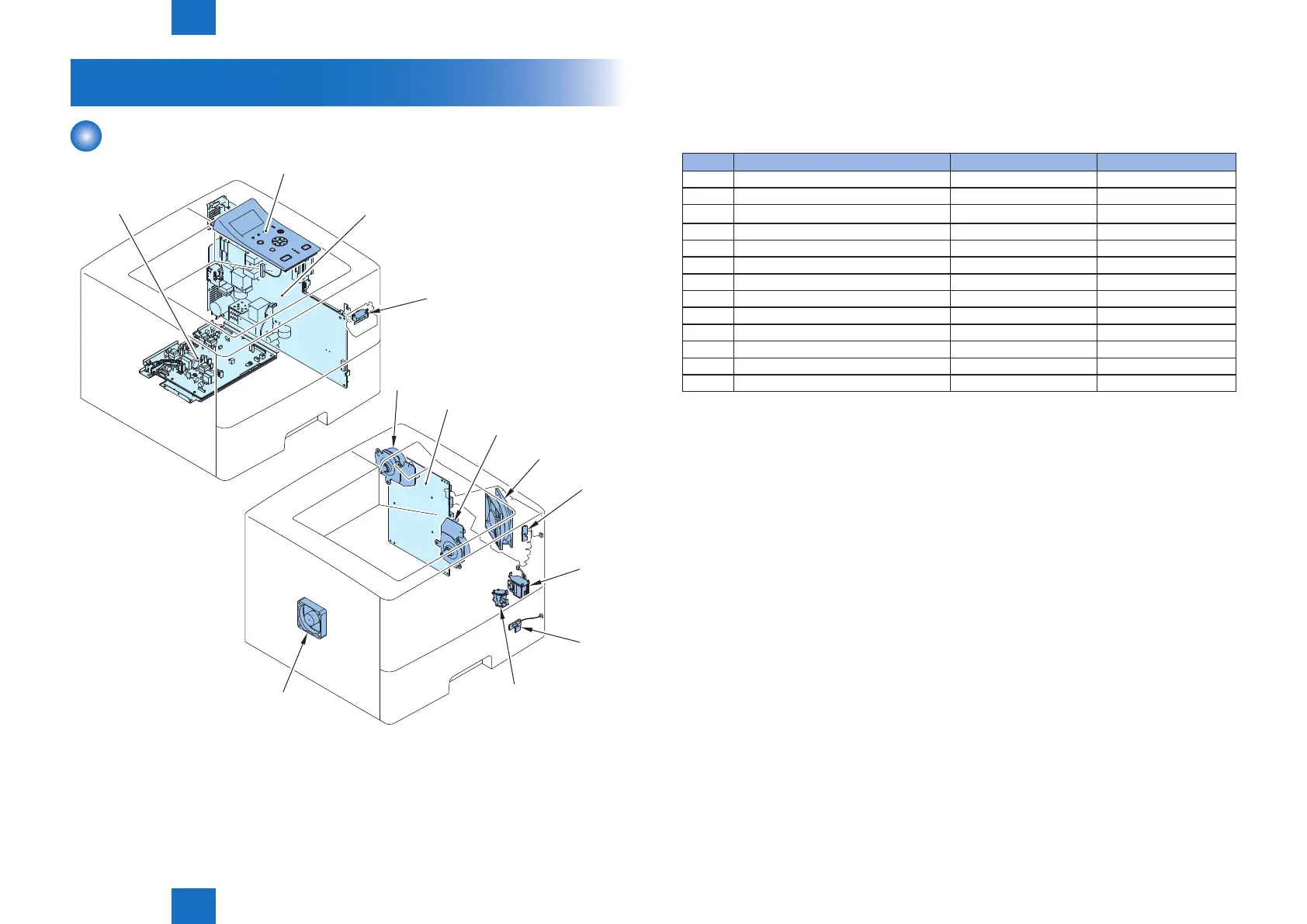

Layout Drawing(LBP3560/6750dn)
[10]
[11]
[12]
[13]
[1]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[2]
Key No. Name Main Unit Reference
[1] High Voltage Power Supply Unit Product Conguration (Refer to page 3-42)
[2] Control Panel Unit Product Conguration (Refer to page 3-28)
[3] Engine Controller PCB Product Conguration (Refer to page 3-35)
[4] Cartridge Door Switch Product Conguration (Refer to page 3-57)
[5] Fixing Motor Product Conguration (Refer to page 3-49)
[6] Main Controller PCB Product Conguration (Refer to page 3-30)
[7] Main Motor Product Conguration (Refer to page 3-46)
[8] Main Fan Product Conguration (Refer to page 3-50)
[9] Environment Sensor Product Conguration (Refer to page 3-42)
[10] Multi-purpose Tray Pickup Solenoid Product Conguration (Refer to page 3-53)
[11] Cassette Sensing Switch Product Conguration (Refer to page 3-57)
[12] Cassette Pickup Solenoid Product Conguration (Refer to page 3-55)
[13] Sub Fan Product Conguration (Refer to page 3-51)
T-3-23
