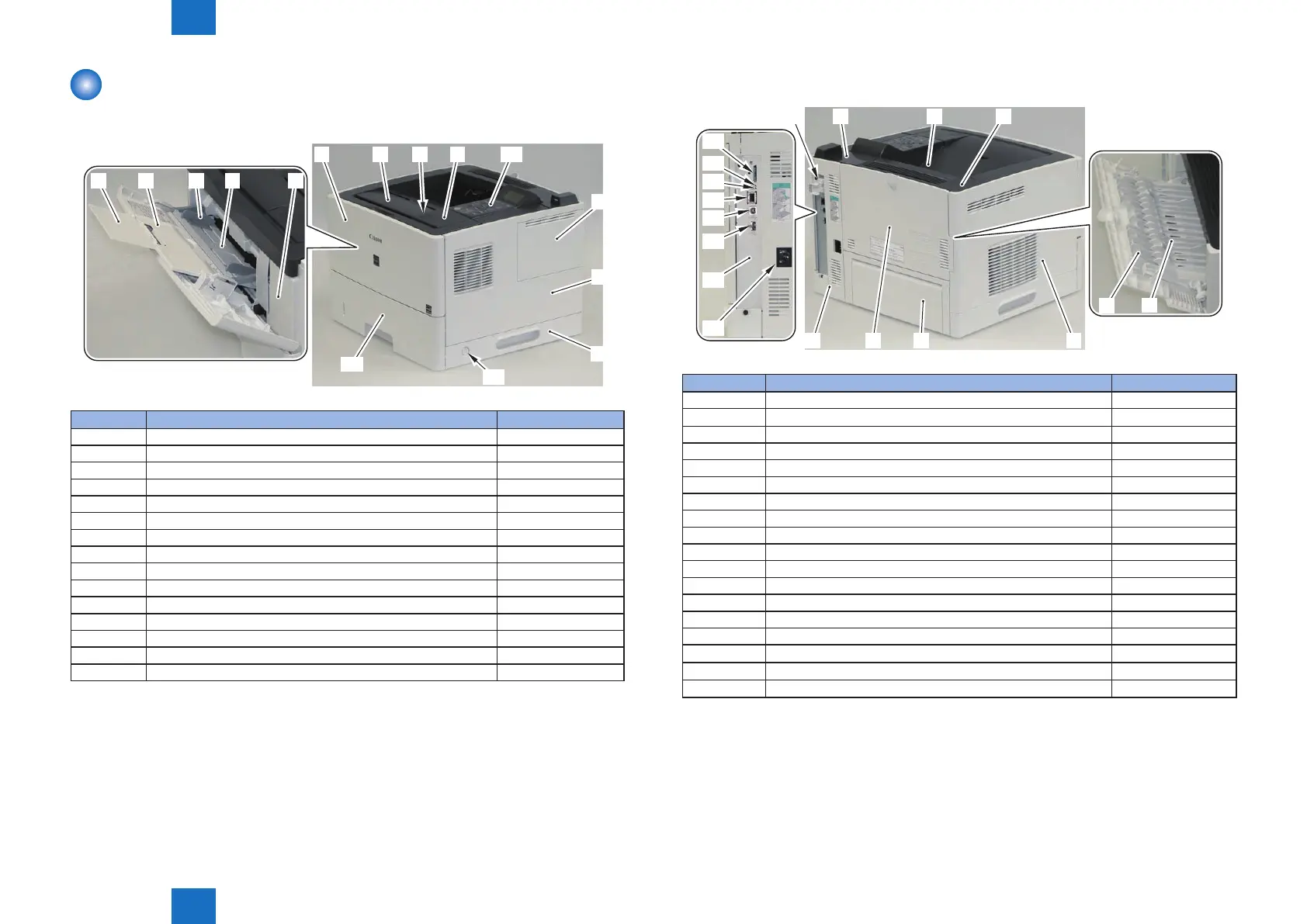

Disassembly/Assembly > External Cover, Internal Cover > Layout Drawing (LBP3580/6780x) > Rear Side
Disassembly/Assembly > External Cover, Internal Cover > Layout Drawing (LBP3580/6780x) > Rear Side
Layout Drawing (LBP3580/6780x)
■
Front Side
[10]
[11]
[12]
[13]
[15]
[14]
[6] [7] [9][8]
[1] [2] [3] [4] [5]
Key No. Name Reference
[1] Tray Extension -
[2] Auxiliary Tray -
[3] Paper Guide -
[4] Multi-purpose Tray -
[5] Right Front Inner Cover (Refer to page 3-21)
[6] Multi-purpose Tray Cover (Refer to page 3-20)
[7] Delivery Auxiliary Tray -
[8] Open Button -
[9] Front Cover Unit (Refer to page 3-20)
[10] Control Panel Unit (Refer to page 3-29)
[11] DIMM Cover -
[12] Right Cover (Refer to page 3-17)
[13] Right Lower Cover (Refer to page 3-22)
[14] Power Switch (Refer to page 3-40)
[15] Cassette -
F-3-21
T-3-21
■
Rear Side
[18]
[10]
[17]
[16]
[15]
[14]
[13]
[12]
[11]
[1] [2] [3]
[4]
[6][7][8][9]
[5]
Key No. Name Reference
[1] USB Cover Unit (Refer to page 3-24)
[2] Upper Cover (Refer to page 3-25)
[3] Upper Left Cover -
[4] Sub Delivery Tray -
[5] Tray Extension -
[6] Left Cover (Refer to page 3-17)
[7] Rear Lower Cover -
[8] Rear Cover Unit (Refer to page 3-19)
[9] Rear Right Cover (Refer to page 3-19)
[10] Power Socket -
[11] Expansion Slot Protection Plate -
[12] USB Connector (for USB Device) -
[13] USB Connector (for Computer Connection) -
[14] LAN Connector -
[15] LNK Indicator (Green) -
[16] ACT Indicator (Green) -
[17] SD Card Slot -
[18] SD Card Slot Cover -
F-3-22
T-3-22
