Disassembly/Assembly > External Cover, Internal Cover > Removing the USB Cover Unit (LBP3580/6780x) > Procedure
Disassembly/Assembly > External Cover, Internal Cover > Removing the USB Cover Unit (LBP3580/6780x) > Procedure
Removing the USB Cover Unit
(LBP3580/6780x)
■
Preparation
1) Remove the Right Cover.(Refer to page 3-17)
■
Procedure

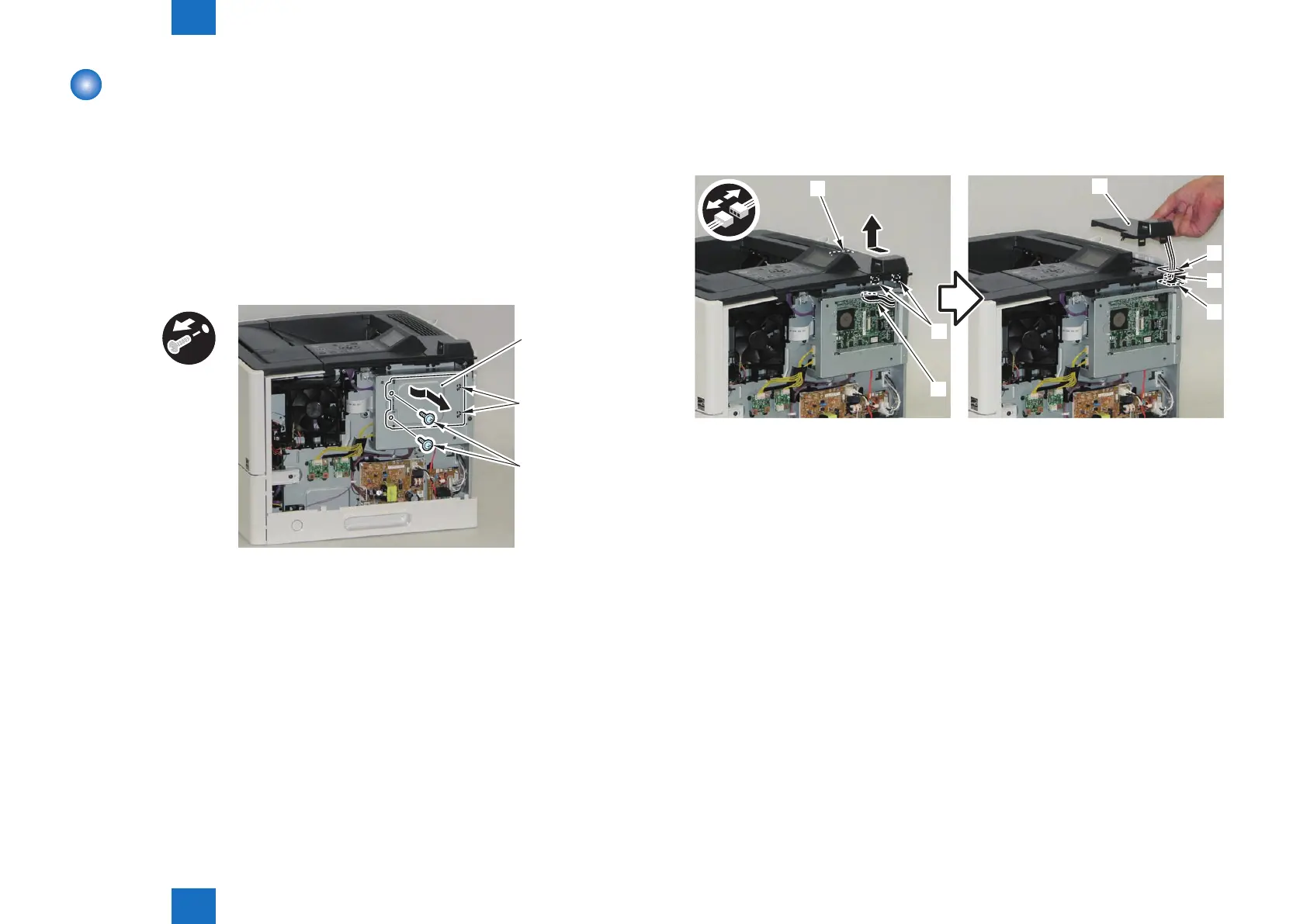

1) Remove the Main Controller Cover (small) [1].
• 2 Screws (black) [2]
• 2 Hooks [3]
x2
[1]
[3]
[2]
F-3-43
2) Disconnect the connector [1].
3) Put the USB Connector [2] through the hole [A] of the Controller Box and the hole [B] of the
Upper Cover, and remove the USB Cover Unit [3].
• 2 Hooks [4]
• 1 Protrusion [5]
[3]
[2]
[A]
[B]
[4]
[1]
[5]
F-3-44
