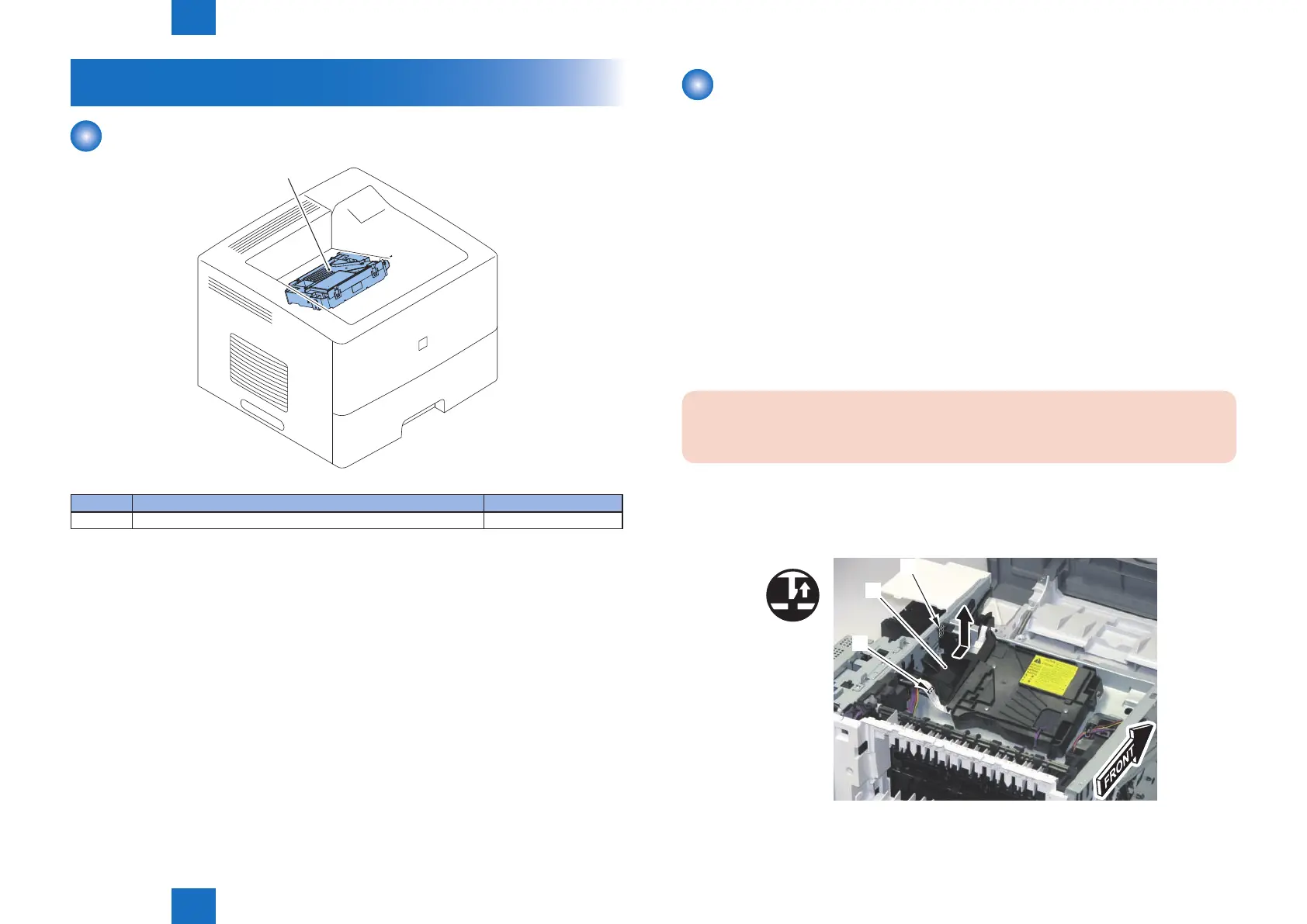

Laser Exposure System
Layout Drawing
[1]
Key No. Name Reference
[1] Laser Scanner Unit (Refer to page 3-58)
F-3-122
T-3-26
Removing the Laser Scanner Unit
■
Preparation(LBP3560/6750dn)
1) Remove the Right Cover.(Refer to page 3-17)
2) Remove the Control Panel Unit.(LBP3560/6750dn)(Refer to page 3-28)
3) Remove the Left Cover.(Refer to page 3-17)
4) Remove the Upper Cover.(Refer to page 3-25)
■
Preparation(LBP3580/6780x)
1) Remove the Right Cover.(Refer to page 3-17)
2) Remove the USB Cover Unit.(LBP3580/6780x)(Refer to page 3-24)
3) Remove the Control Panel Unit.(LBP3580/6780x)(Refer to page 3-29)
4) Remove the Left Cover.(Refer to page 3-17)
5) Remove the Upper Cover.(Refer to page 3-25)
■
Procedure
CAUTION:
Be sure not to disassemble the Laser Scanner Unit because it requires adjustment.
1) Remove the Fan Duct [1].
• 1 Claw [2]
• 1 Hook [3]
[1]
[2]
[3]
F-3-123
