Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit > Procedure
Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit > Procedure

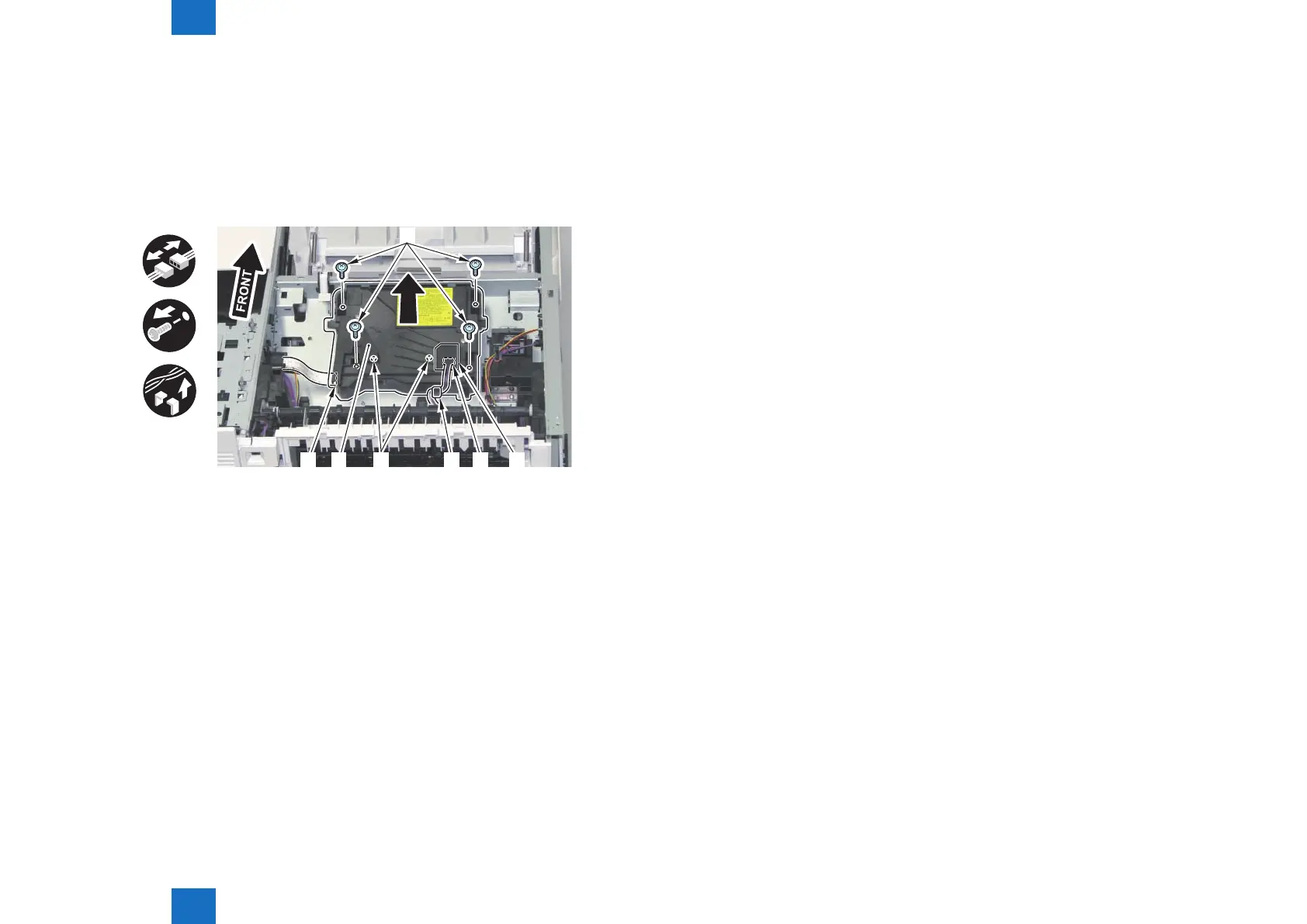

2) Remove the Laser Scanner Unit [1].
• 1 Flat Cable [2]
• 1 Sponge Cover [3]
• 1 Guide [A]
• 1 Connector [4]
• 4 Screws [5]
• 2 Bosses [6]
x4
x2
[1] [6][2] [4][A] [3]
[5]
F-3-124
