Disassembly/Assembly > Pickup Feed System > Removing the Pickup Unit > Procedure
Disassembly/Assembly > Pickup Feed System > Removing the Pickup Unit > Procedure
Removing the Pickup Unit
■
Preparation(LBP3560/6750dn)
1) Remove the Multi-purpose Tray Auxiliary Tray Unit.(Refer to page 3-20)
2) Remove the Right Cover.(Refer to page 3-17)
3) Remove the Right Front Inner Cover.(Refer to page 3-21)
4) Remove the Right Lower Cover.(LBP3560/6750dn)(Refer to page 3-22)
5) Remove the Main Controller PCB.(LBP3560/6750dn)(Refer to page 3-30)
6) Remove the Control Panel Unit.(LBP3560/6750dn)(Refer to page 3-28)
7) Remove the Upper Cover.(Refer to page 3-25)
8) Remove the Rear Cover Unit.(Refer to page 3-19)
9) Remove the Rear Right Cover.(Refer to page 3-19)
10) Remove the Engine Controller PCB.(LBP3560/6750dn)(Refer to page 3-35)
11) Remove the Cassette Pickup Solenoid.(Refer to page 3-55)
■
Preparation(LBP3580/6780x)
1) Remove the Multi-purpose Tray Auxiliary Tray Unit.(Refer to page 3-20)
2) Remove the Right Cover.(Refer to page 3-17)
3) Remove the Right Front Inner Cover.(Refer to page 3-21)
4) Remove the Right Lower Cover.(LBP3580/6780x)(Refer to page 3-22)
5) Remove the Main Controller PCB.(LBP3580/6780x)(Refer to page 3-30)
6) Remove the USB Cover Unit.(LBP3580/6780x)(Refer to page 3-24)
7) Remove the Control Panel Unit.(LBP3580/6780x)(Refer to page 3-28)
8) Remove the Upper Cover.(Refer to page 3-25)
9) Remove the Rear Cover Unit.(Refer to page 3-19)
10) Remove the Rear Right Cover.(Refer to page 3-19)
11) Remove the Engine Controller PCB.(LBP3580/6780x)(Refer to page 3-37)
12) Remove the Cassette Pickup Solenoid.(Refer to page 3-55)
■

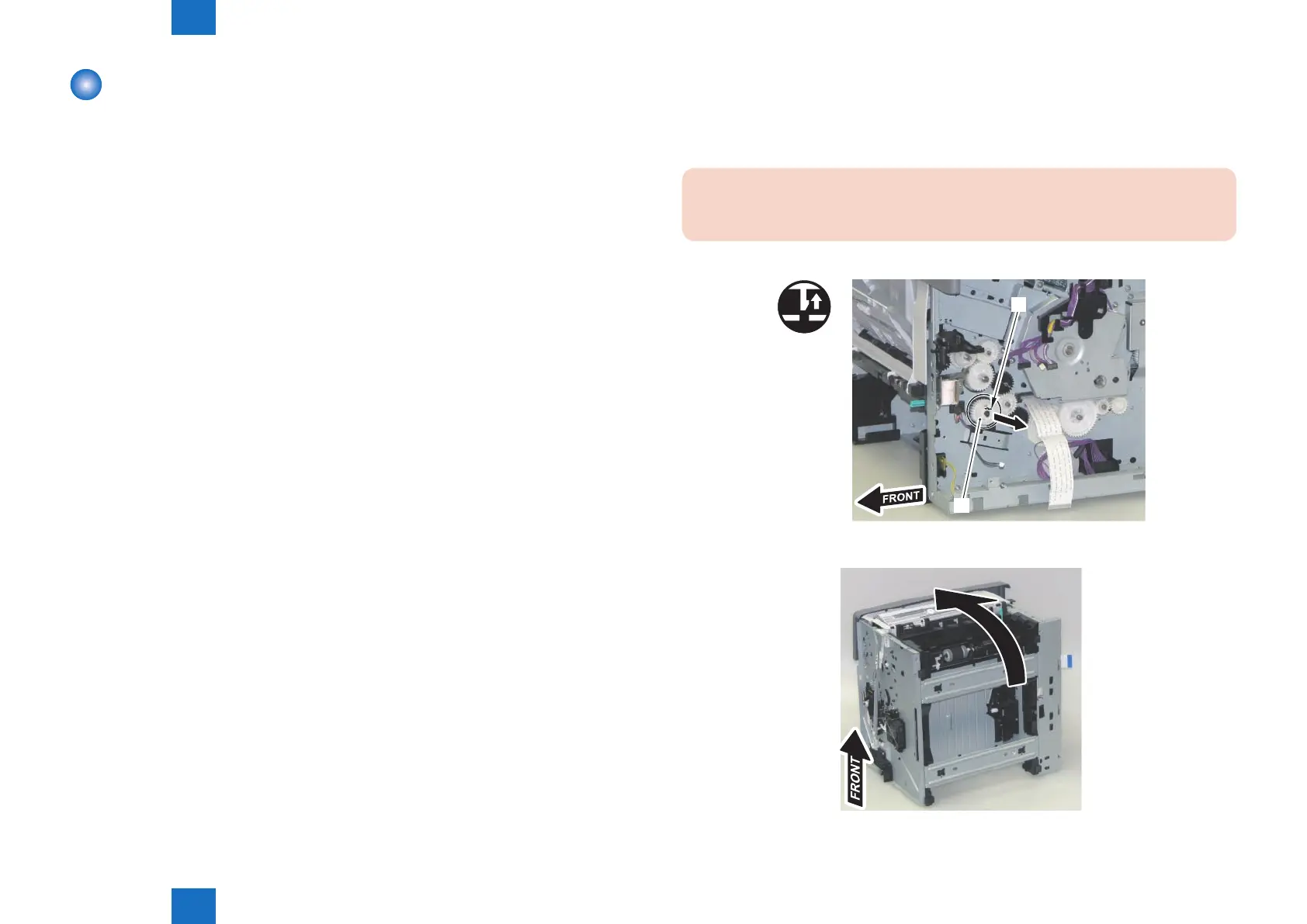

Procedure
1) Close the Front Cover Unit.
2) Remove the Gear Unit [1].
• 1 Claw [2]
CAUTION:
Never disassemble the Gear Unit because it is difcult to assemble it.
[1]
[2]
3) Turn the machine so that it is placed with its rear side down.
F-3-144
F-3-145
To Next Page
