Disassembly/Assembly > Pickup Feed System > Removing the Pickup Unit > Procedure
Disassembly/Assembly > Pickup Feed System > Removing the Pickup Unit > Procedure

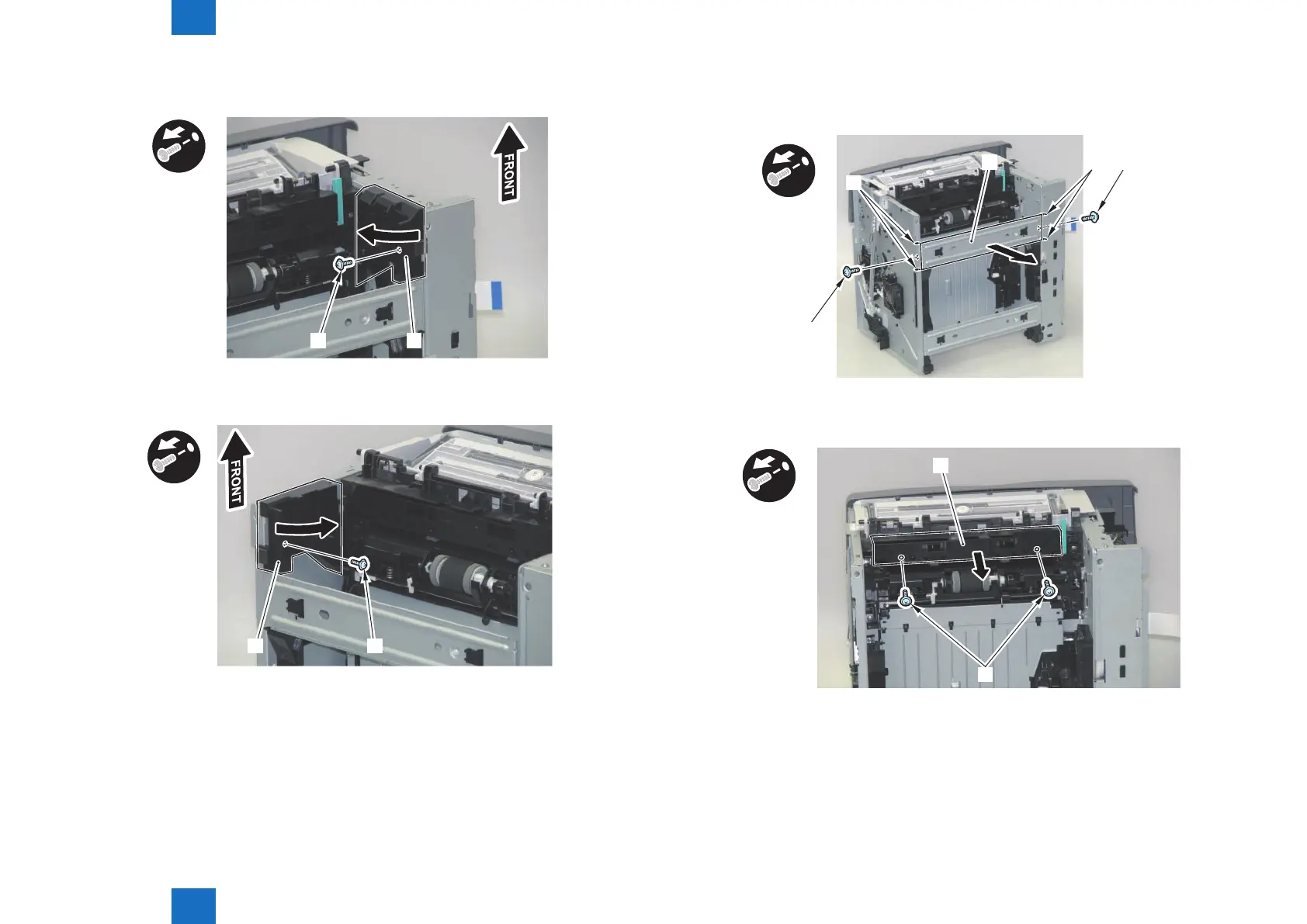

4) Remove the Lower Right Guide [1].
• 1 Screw [2]
[1]
[2]
5) Remove the Lower Left Guide [1].
• 1 Screw [2]
[1] [2]
F-3-146
F-3-147
6) Remove the Lower Front Reinforcing Plate [1].
• 2 Screws [2]
• 4 Hooks [3]
[2]
[1] [2][3]
[3]
x2
7) Remove the Feed Roller Unit [1].
• 2 Screws [2]
x2
[1]
[2]
F-3-148
F-3-149
