List of Parts

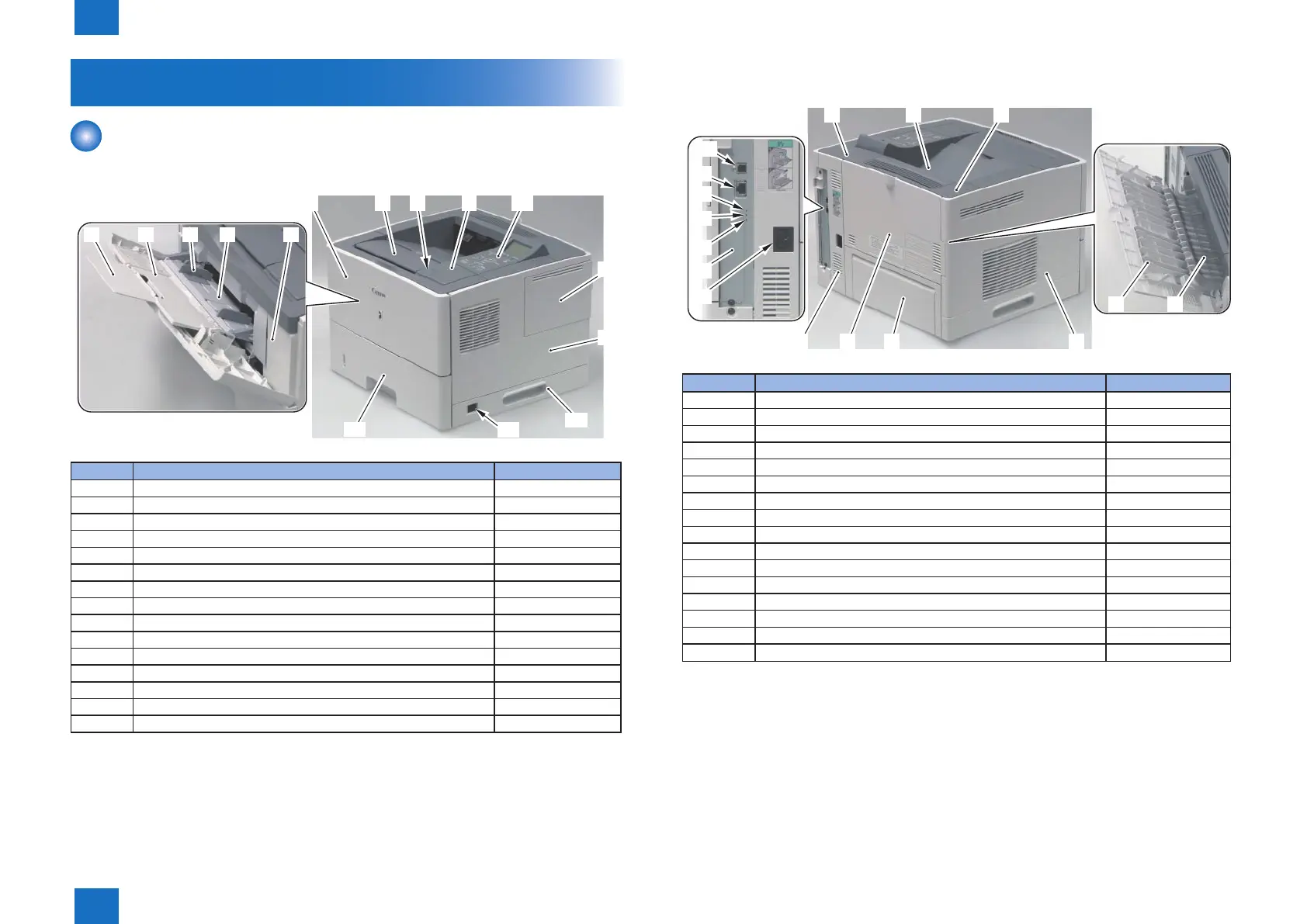

External View (LBP3560/6750dn)
■
Front Side
[10]
[1]
[11]
[2]
[12]
[3]
[13]
[4]
[14]
[5]
[15]
[6] [7] [8] [9]
Key No. Name Reference
[1] Tray Extension -
[2] Auxiliary Tray -
[3] Paper Guide -
[4] Multi-purpose Tray -
[5] Right Front Inner Cover (Refer to page 3-21)
[6] Multi-purpose Tray Cover (Refer to page 3-20)
[7] Delivery Auxiliary Tray -
[8] Open Button -
[9] Front Cover Unit (Refer to page 3-20)
[10] Control Panel Unit (Refer to page 3-28)
[11] DIMM Cover -
[12] Right Cover (Refer to page 3-17)
[13] Right Lower Cover (Refer to page 3-22)
[14] Power Switch -
[15] Cassette -
F-1-3
T-1-6
■
Rear Side
[1]
[10]
[2]
[11]
[3]
[12]
[13]
[15]
[14]
[16]
[4][5]
[6]
[7]
[8][9]
Key No. Name Reference
[1] Upper Right Cover -
[2] Upper Cover (Refer to page 3-25)
[3] Upper Left Cover -
[4] Sub Delivery Tray -
[5] Tray Extension -
[6] Left Cover (Refer to page 3-17)
[7] Rear Lower Cover -
[8] Rear Cover Unit (Refer to page 3-19)
[9] Rear Right Cover (Refer to page 3-19)
[10] Power Socket -
[11] Expansion Slot Protection Plate -
[12] TX/RX Indicator -
[13] 10 Indicator -
[14] 100 Indicator -
[15] LAN Connector -
[16] USB Connector -
F-1-4
T-1-7
