Canon imageCLASS LBP6780dn - Pcb(Lbp3560;6750 Dn); Pcb(Lbp3580;6780 X)

3
3
3-8
3-8
Disassembly/Assembly > List Of Parts > Electrical Components Layout Drawing > PCB(LBP3580/6780x)
Disassembly/Assembly > List Of Parts > Electrical Components Layout Drawing > PCB(LBP3580/6780x)
■

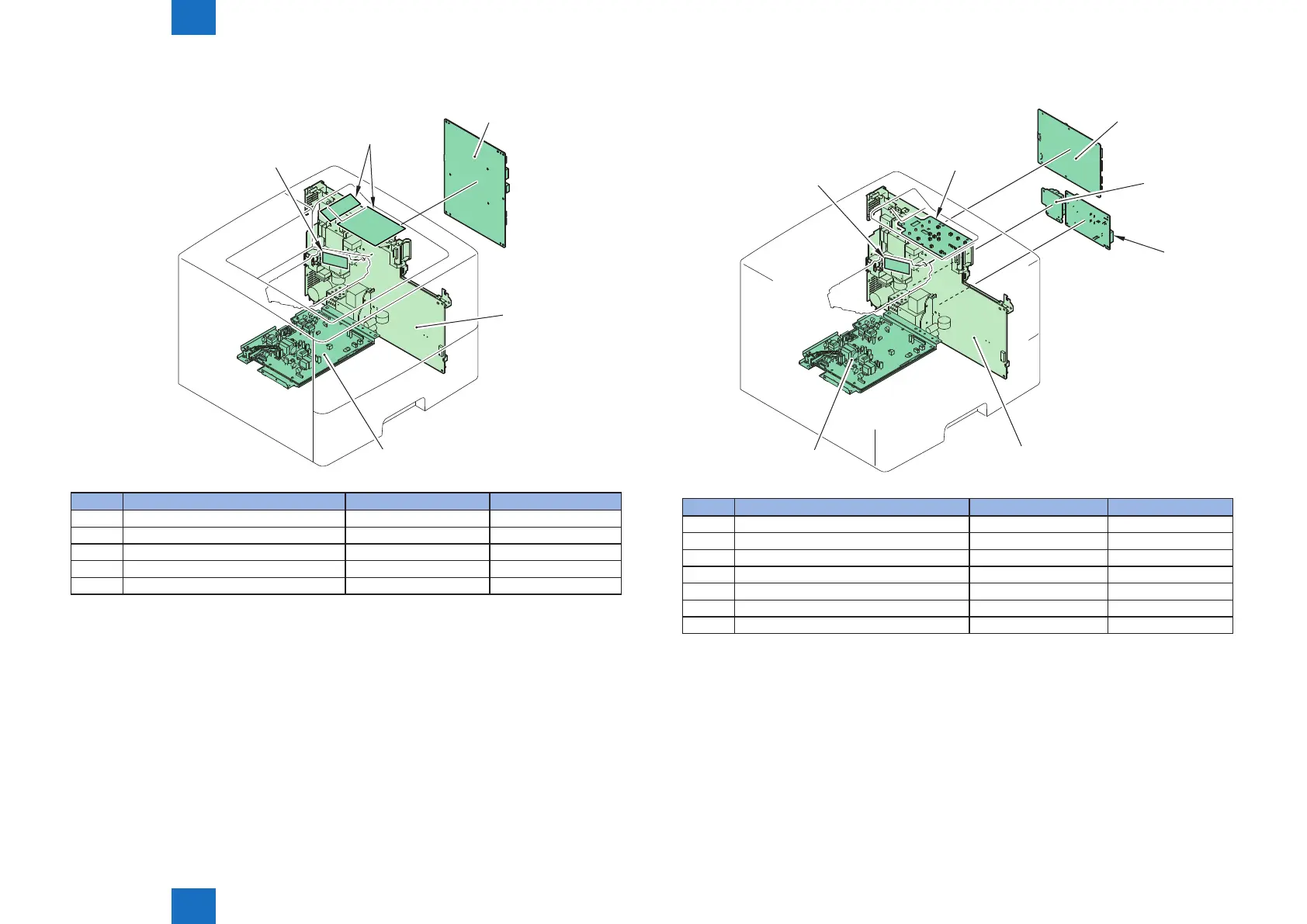

PCB(LBP3560/6750dn)
[1]
[2]
[3]
[4]
[5]
Key No. Name Main Units Reference
[1] BD PCB Laser Scanner Unit -
[2] Control Panel PCB Control Panel Unit -
[3] Main Controller PCB Product Conguration (Refer to page 3-30)
[4] Engine Controller PCB Product Conguration (Refer to page 3-35)
[5] High Voltage Power Supply Unit Product Conguration (Refer to page 3-42)
F-3-11
T-3-11
■
PCB(LBP3580/6780x)
[6]
[7]
[2]
[3]
[4]
[5]
[1]
Key No. Name Main Units Reference
[1] BD PCB Laser Scanner Unit -
[2] Control Panel PCB Control Panel Unit -
[3] Main Controller PCB Product Conguration (Refer to page 3-31)
[4] AC Relay PCB Product Conguration (Refer to page 3-34)
[5] All-night Power Supply PCB Product Conguration (Refer to page 3-32)
[6] Engine Controller PCB Product Conguration (Refer to page 3-37)
[7] High Voltage Power Supply Unit Product Conguration (Refer to page 3-42)
F-3-12
T-3-12
