Removing the Registration Unit
■
Preparation
1) Remove the Left Cover.(Refer to page 3-17)
■

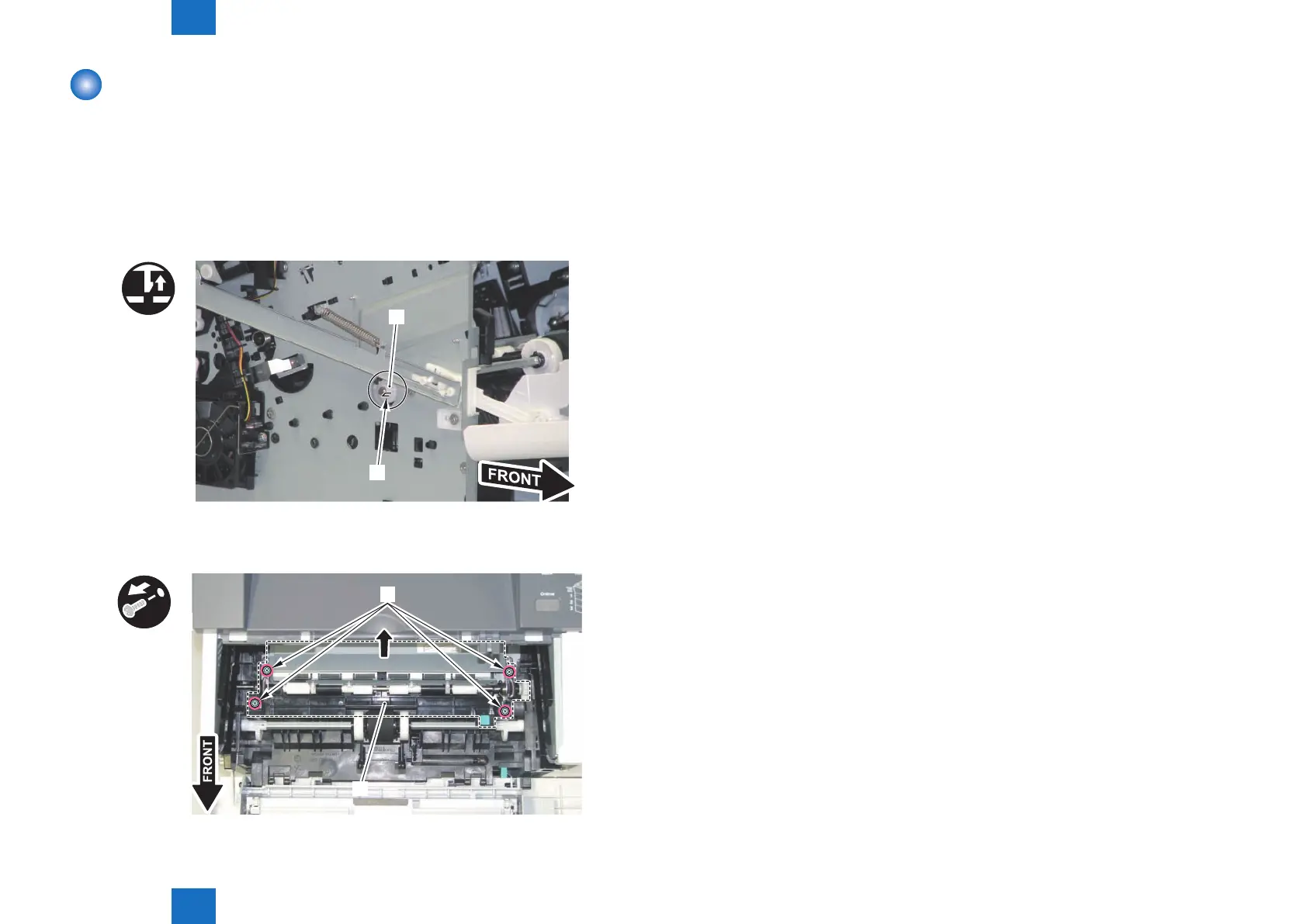

Procedure
1) Remove the gear [1].
• 1 Claw [2]
[1]
[2]
2) Remove the Registration Unit [1].
• 4 Screws [2]
x4
[1]
[2]
F-3-128
F-3-129
