Troubleshooting > Backup/Restoration by Expansion ROM for servicing and Sublog Board > Backup and Restoration (Export and Import) > Backup Procedure (Export)
Troubleshooting > Backup/Restoration by Expansion ROM for servicing and Sublog Board > Backup and Restoration (Export and Import) > Backup Procedure (Export)

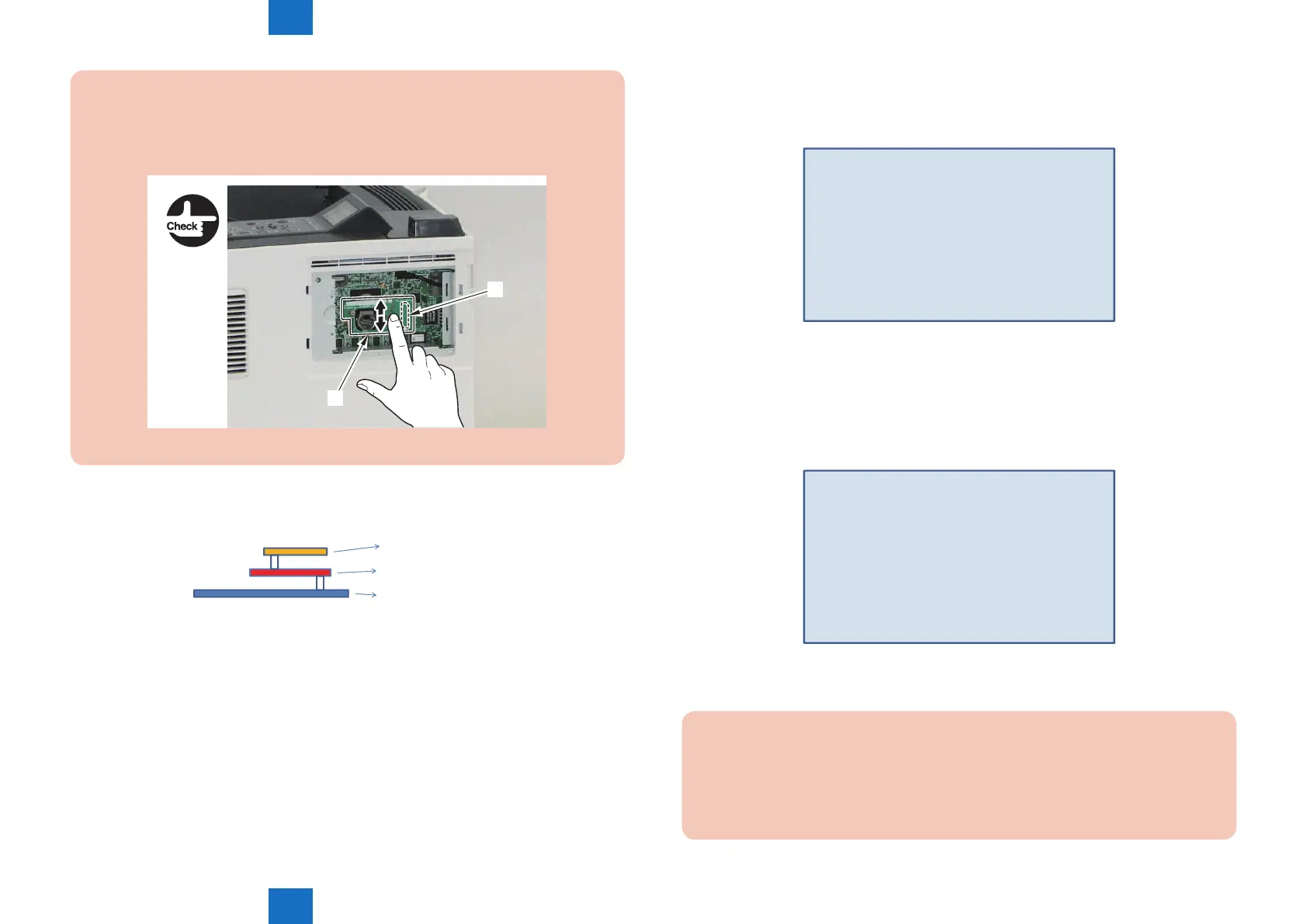

CAUTION:
Lightly press the Sublog Board to check for any backlash.
It is necessary in order to prevent a data communication error caused by disconnection
of the connector.
[2]
[1]
.
F-5-70
Expansion ROM
Sublog Board
Main Controller PCB
F-5-71
■
Backup Procedure (Export)
1) The menu is displayed when turning ON the power while the Sublog Board attached with
the Expansion ROM for servicing is installed.
NVRAM export ￫/￬
2) Use the right and left arrow keys to select [NVRAM export].
3) Press the OK key. This operation causes the information stored in the machine to be
exported to the Sublog Board.
4) The following message is displayed when backup is completed successfully.
NVRAM export complete
5) Turn OFF the power, and remove the faulty Main Controller PCB and the Sublog Board to
which data was exported.
CAUTION:
Install the Sublog Board to which data was backed up (exported) and Expansion ROM
PCB to an unused Main Controller PCB which has not been installed to the machine.
Data cannot be migrated to a Main Controller PCB which has ever been used, even if
only once.
F-5-72
F-5-73
