Troubleshooting > Electrical Parts Layout/Function Assignment
Troubleshooting > Electrical Parts Layout/Function Assignment

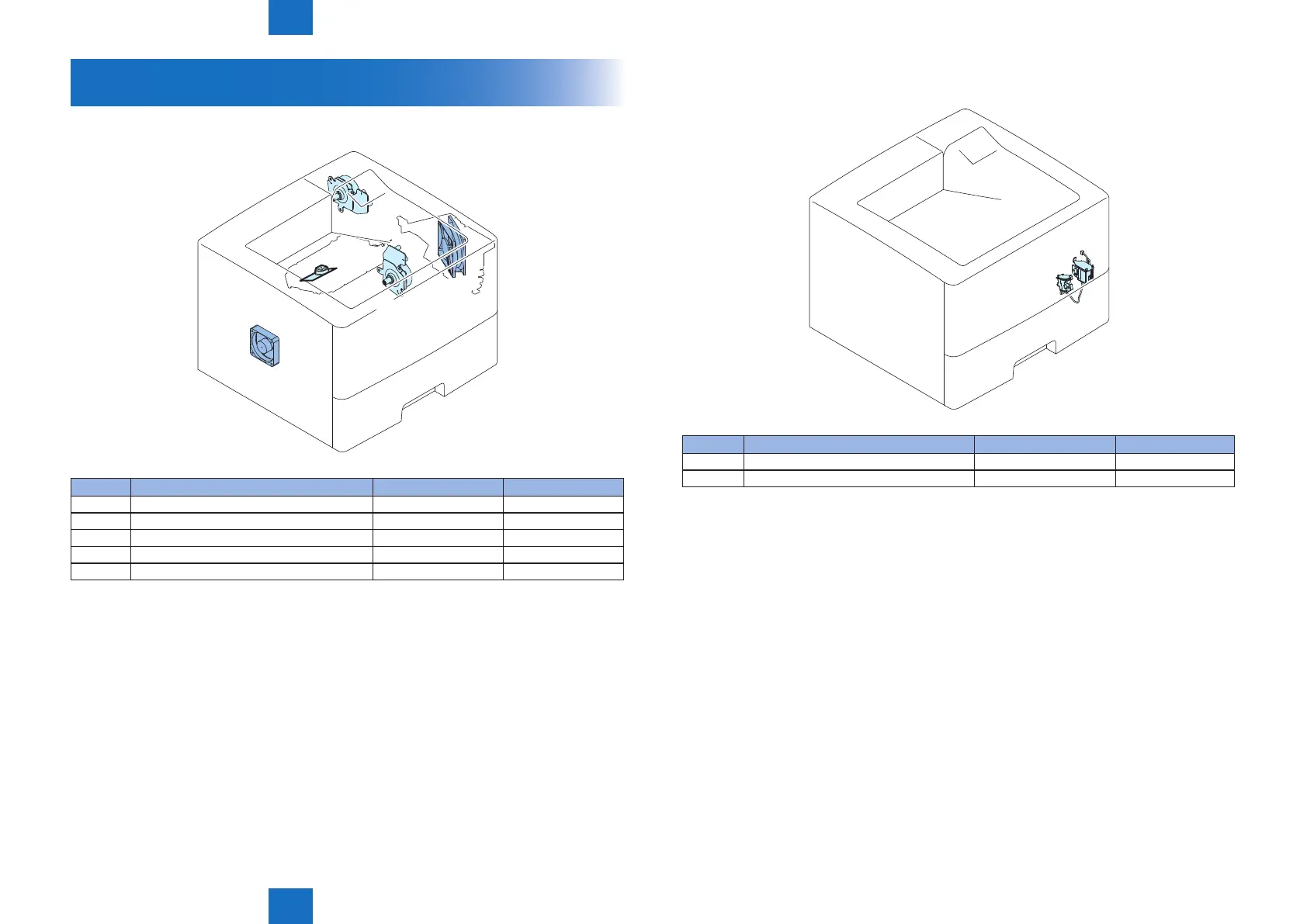

Electrical Parts Layout/Function Assignment
■
Motor / Fan
M8003
M3
M8002
FM2
FM1
Key No. Name Main Units Reference
FM1 Main Fan Product Conguration (Refer to page 3-50)
FM2 Sub Fan Product Conguration (Refer to page 3-51)
M3 Laser Scanner Motor Laser Scanner Unit -
M8002 Fixing Motor Product Conguration (Refer to page 3-49)
M8003 Main Motor Product Conguration (Refer to page 3-46)
F-5-18
T-5-16
■
Sorenoid
SL2
SL1
Key No. Name Main Units Reference
SL1 Multi-purpose Tray Pickup Solenoid Product Conguration (Refer to page 3-53)
SL2 Cassette Pickup Solenoid Product Conguration (Refer to page 3-55)
F-5-19
T-5-17
