Disassembly/Assembly > Pickup Feed System > Removing the Multi-purpose Tray Pickup Roller
Disassembly/Assembly > Pickup Feed System > Removing the Multi-purpose Tray Pickup Roller
Pickup Feed System

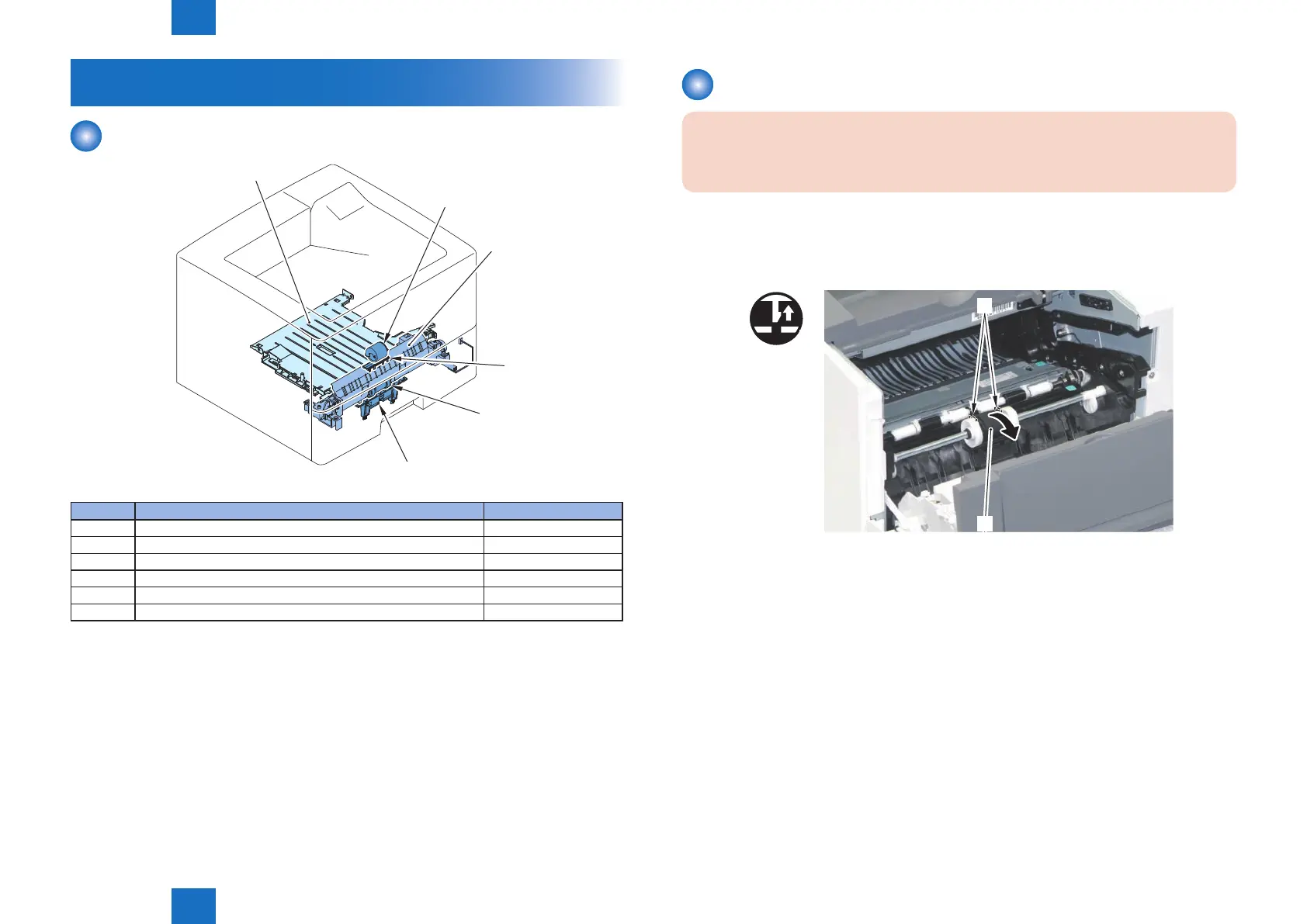

Layout drawing
[1]
[2]
[3]
[4]
[5]
[6]
Key No. Name Reference
[1] Duplex Feed Unit (Refer to page 3-67)
[2] Multi-purpose Tray Pickup Roller (Refer to page 3-64)
[3] Pickup Unit (Refer to page 3-68)
[4] Cassette Separation Pad (Refer to page 3-67)
[5] Cassette Pickup Roller Unit (Refer to page 3-66)
[6] Cassette Separation Pad (Refer to page 3-67)
F-3-134
T-3-29
Removing the Multi-purpose Tray Pickup Roller
CAUTION:
Be sure not to touch the surface of the Roller.
1) Open the Front Cover Unit.
2) Remove the Multi-purpose Tray Pickup Roller [1].
• 2 Claws [2]
[1]
[2]
x2
F-3-135
