Disassembly/Assembly > Controller System > Removing the All-night Power Supply PCB (LBP3580/6780x) > Procedure
Disassembly/Assembly > Controller System > Removing the All-night Power Supply PCB (LBP3580/6780x) > Procedure

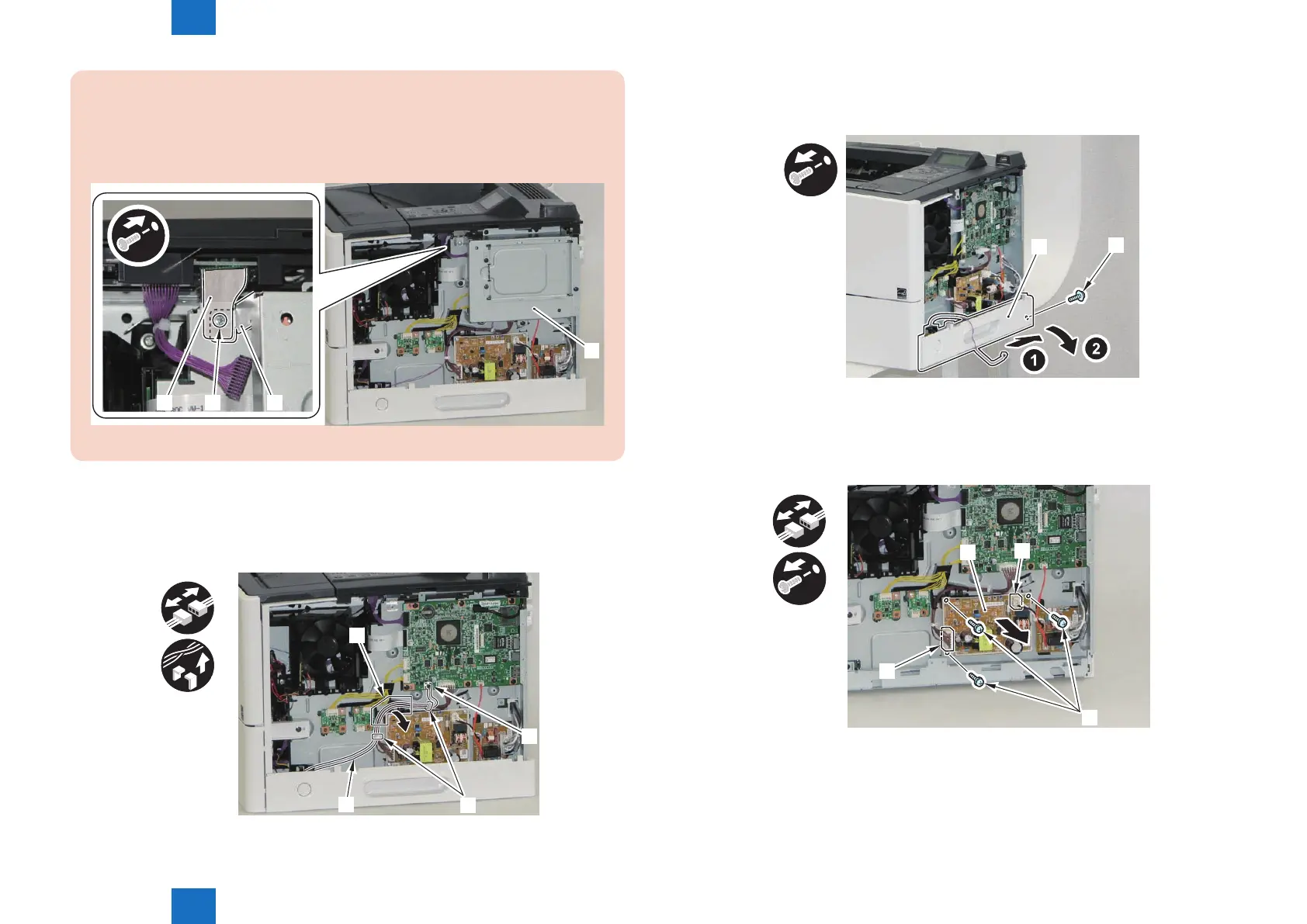

CAUTION:
When installing the Main Controller Cover [1], be sure to note the following point.
• Place the grounding sheet [2] on the outside of the Main Controller Cover [1] and
secure them together with the removed screw [3].
[1]
[2] [1][3]
F-3-61
2) Free the harness [1] connected to the Main Switch Unit.
• 1 Connector [2]
• 2 Wire Saddles [3]
• 1 Harness Guide [A]
x3
[A]
[2]
[3]
[1]
F-3-62
3) Shift the host machine 50 mm to the right.
4) Remove the Right Lower Cover [1].
• 1 Screw (black) [2]
[2]
[1]
5) Place the host machine in the center of working table.
6) Remove the All-night Power Supply PCB [1].
• 2 Connectors [2]
• 3 W Sems Screws [3]
x3
x2
[1]
[2]
[2]
[3]
F-3-63
F-3-64
To Next Page
