Disassembly/Assembly > Controller System > Removing the Sub Fan > Procedure
Disassembly/Assembly > Controller System > Removing the Sub Fan > Procedure

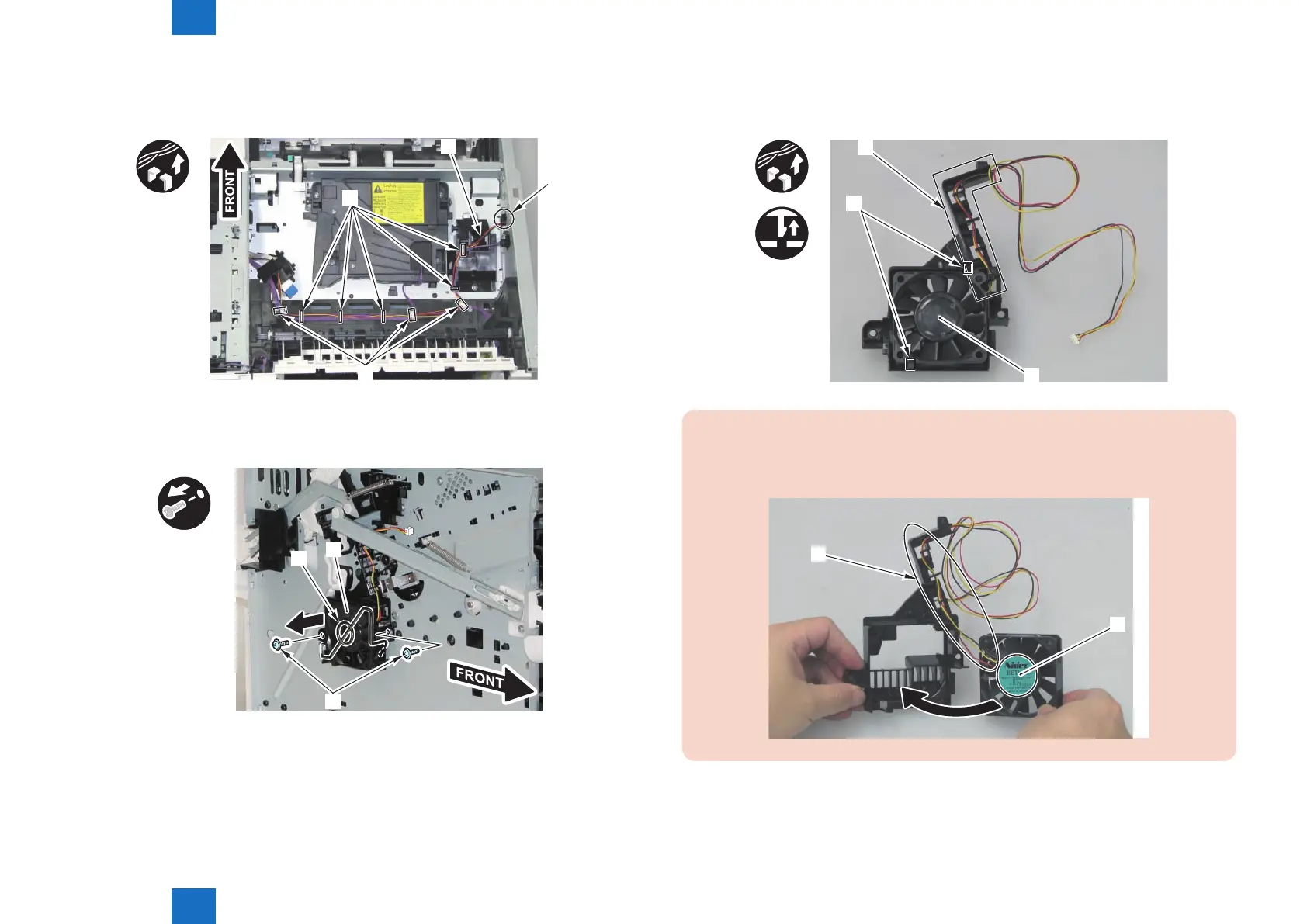

5) Pass the harness [1] through the hole [2] on the Left Side Plate.
• 3 Clamps [3]
• 5 Harness Guides [4]
x8
[1]
[2]
[3]
[4]
6) Remove the Sub Fan Unit [1].
• 2 Screws [2]
• 1 Fan Rod [3]
x2
[2]
[3]
[1]
F-3-111
F-3-112
7) Remove the Sub Fan [1].
• Harness Guide [2]
• 2 Claws [3]
x2
[1]
[2]
[3]
CAUTION:
When installing the Sub Fan to the main body, be sure that the label [1] of the fan
comes to the inside and the harness [2] comes to the upper right.
[1]
[2]
F-3-113
