The power supply has a handle to be used for insertion and extraction. The module must be supported with
one hand because of its length. The following figure shows the Cisco ASR 1001 Router DC power supplies.

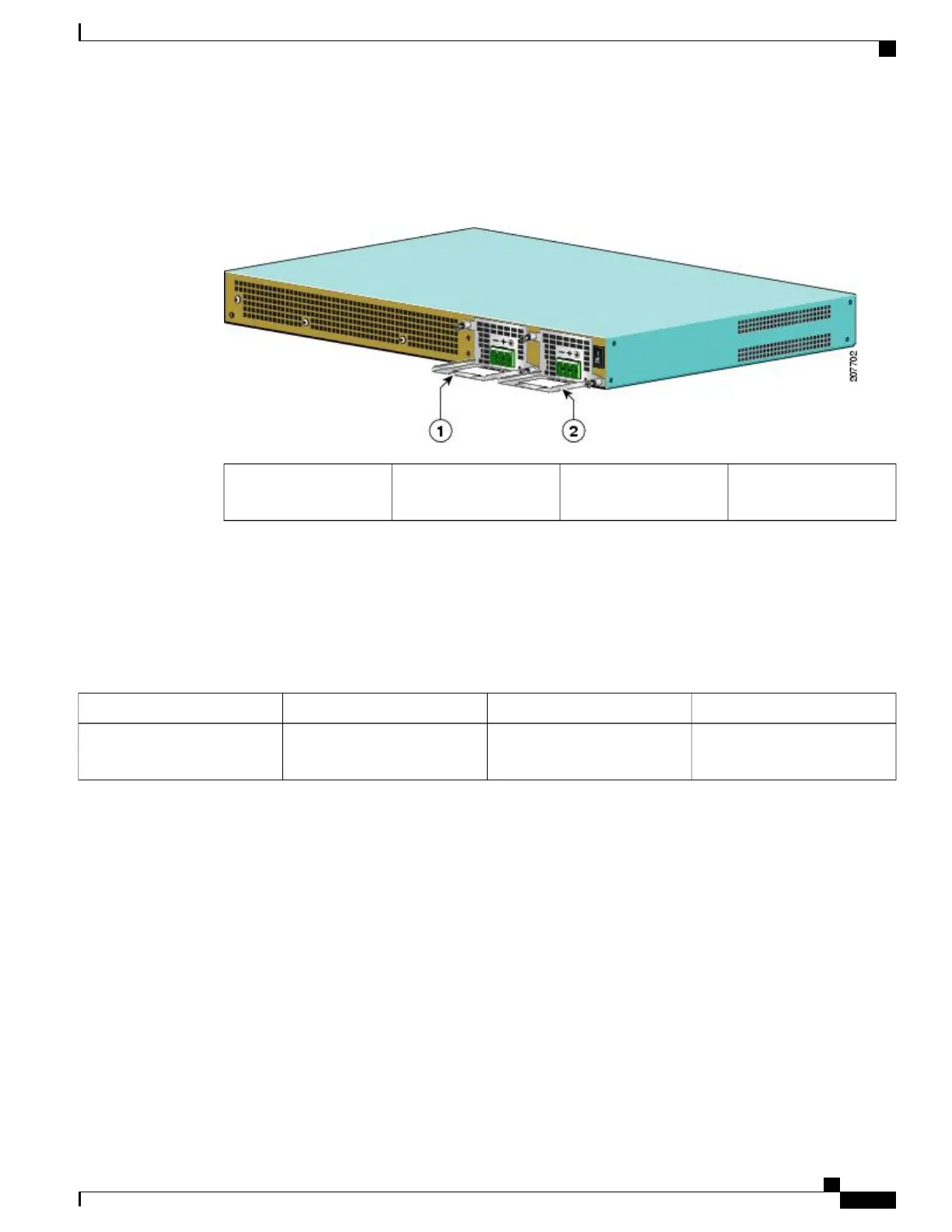

Figure 24: Cisco ASR 1001 Router With DC Power Supplies
DC power supply in slot
PS1
2DC power supply in slot
PS0
1
AC/DC Power System Input Range and Voltage for Cisco ASR 1001
The power supply DC Input Range is –40.5 to –72 VDC, and the AC Input Range is 85 to 264 VAC. The
following table describes the Cisco ASR 1001 Router power supply LED.
Table 35: Cisco ASR 1001 Router — AC and DC Power Supply LED
DescriptionColorLEDLED Label
Off if output power is within
specification range
RedIndicates power supply statusPWR OK
Cisco ASR 1000 Series Router Hardware Installation Guide
85
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1001 Router DC Power Supply

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
