Cisco ASR 1001 Hardware Installation Guide

The following image shows the locations at which to attach the front rack-mount brackets to the Cisco ASR 1002 Router
in a rack.

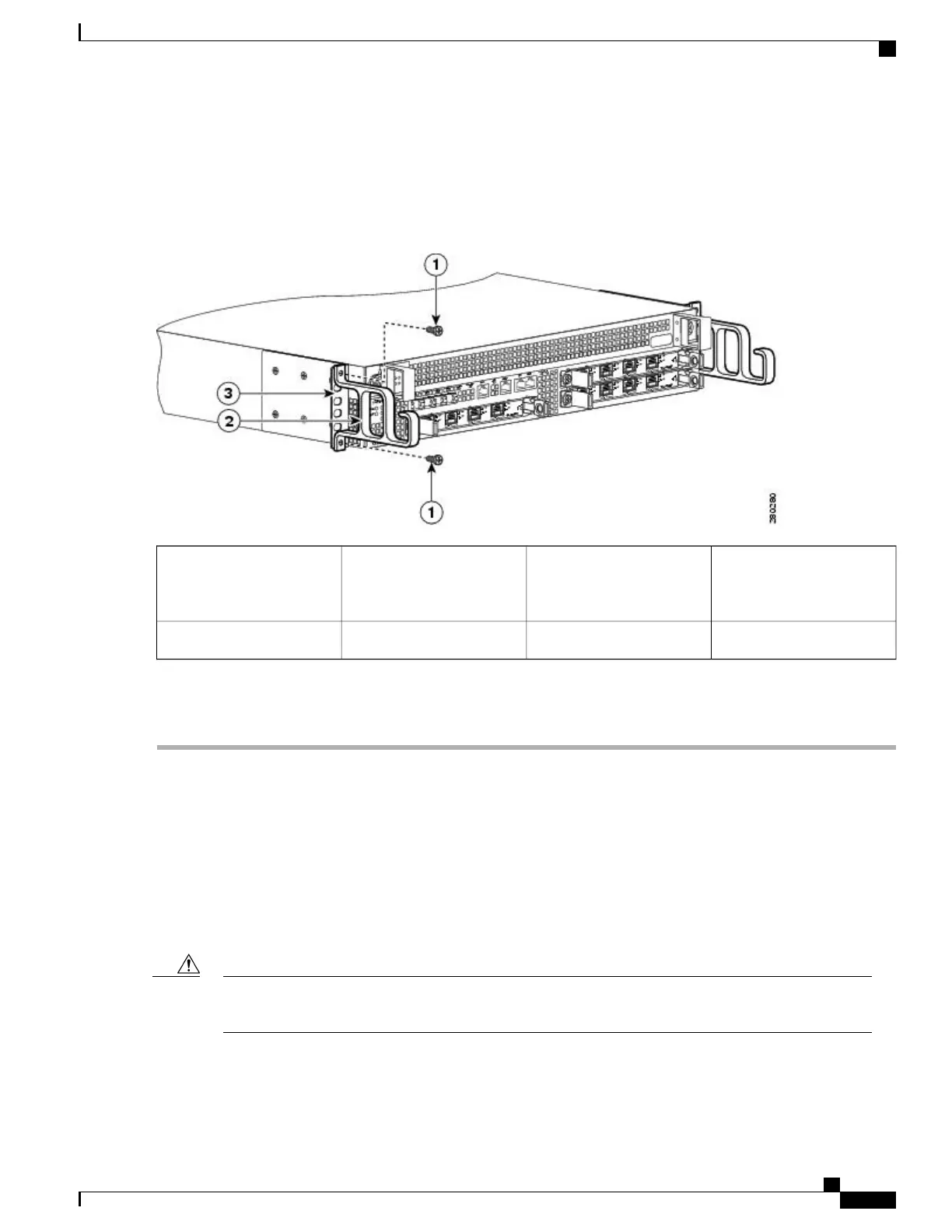

Figure 94: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Brackets
Front rack-mount bracket3Secure the
cable-management top screw
and bottom to this ear hole
1
Cable-management bracket2
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Attaching the Cable-Management Bracket, on page 248).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis.
Attaching a Chassis Ground Connection
Connecting the Cisco ASR 1002 chassis to ground is required for all DC powered installations and any AC
powered installation where compliance with Telcordia grounding requirements is necessary.
The dual-lug chassis ground stud must be installed, all cards or filler plates must be fully inserted and
screwed in and earthed to prevent a potential hazard in a telecom line.
Caution
Have the recommended tools and supplies available before you begin this procedure.
Cisco ASR 1000 Series Router Hardware Installation Guide
249
Cisco ASR 1002 Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
