Cisco ASR 1001 Hardware Installation Guide

The space must be at least 17.7 inches (45 cm) to accommodate the chassis which is 17.25 inches (43.8 cm) wide and
fits between the mounting posts on the rack.

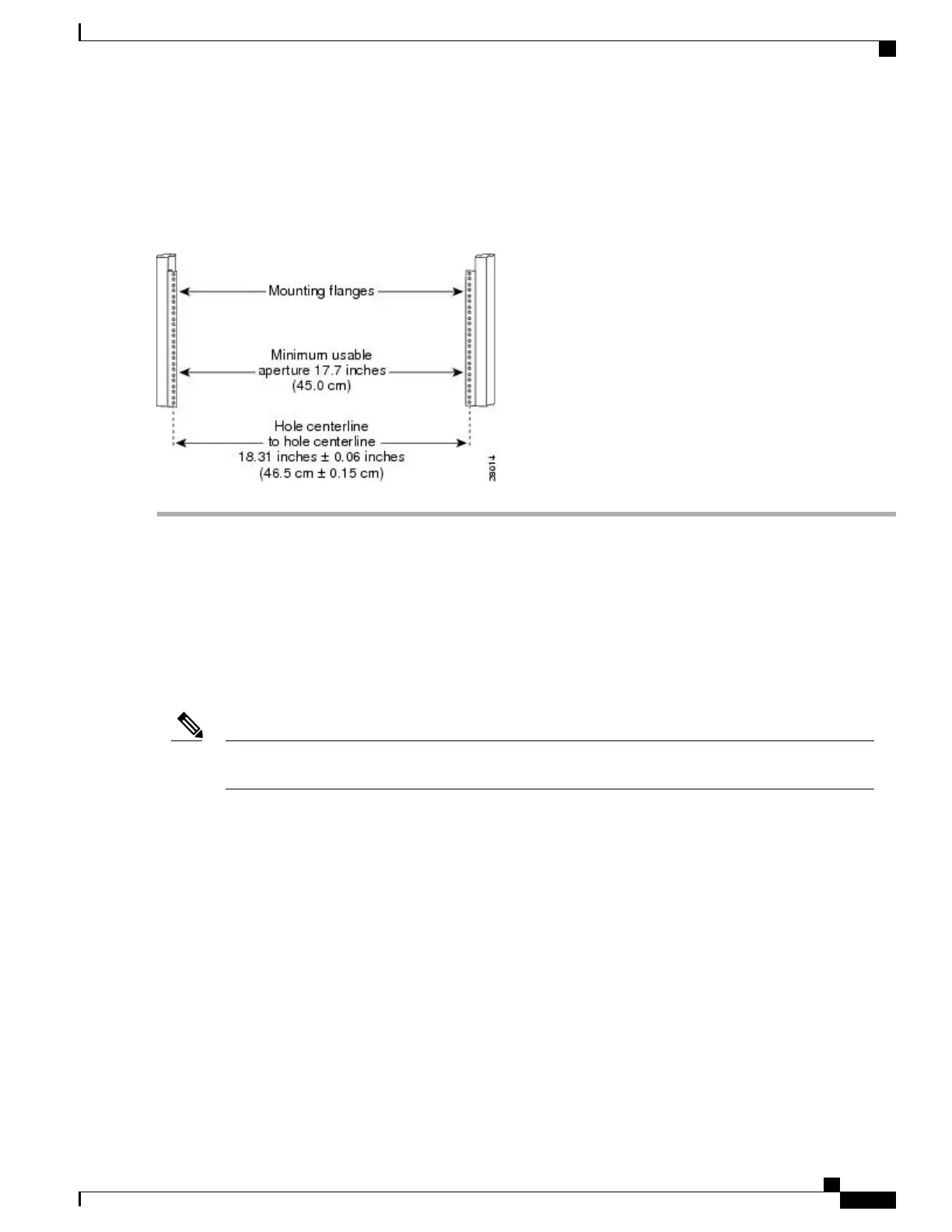

Figure 40: Verifying Equipment Rack Dimensions
Attaching the Chassis Rack-Mount Brackets
This section explains how to attach the front and rear rack-mount brackets to the chassis. Before installing
the chassis in the rack, you must install the rack-mount brackets on each side of the chassis.
The parts and tools required for installing the rack-mount brackets and cable-management brackets are listed
in the “Tools and Equipment” section on page 5-23 .
The cable-management brackets are installed on the chassis after you install the chassis rack-mount brackets
and mount the chassis in the rack.
Note
Chassis Front Rack-Mount Brackets
Determine where in the rack you want the chassis to be mounted. If you are mounting more than one chassis
in the rack, then start from the bottom up or the center of the rack. The following image shows the brackets
attached to the chassis. Depending on the bracket holes you use, the chassis may protrude in the rack.
To install the front rack-mount brackets on the Cisco ASR 1006 Router, perform the following steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
149
Cisco ASR 1006 Router Overview and Installation
Attaching the Chassis Rack-Mount Brackets

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
