Cisco ASR 1001 Hardware Installation Guide

Egress queueing for
interfaces handled by
QFP-3rd-Gen 0
4Egress queueing for
interfaces handled by
QFP-3rd-Gen 2
2

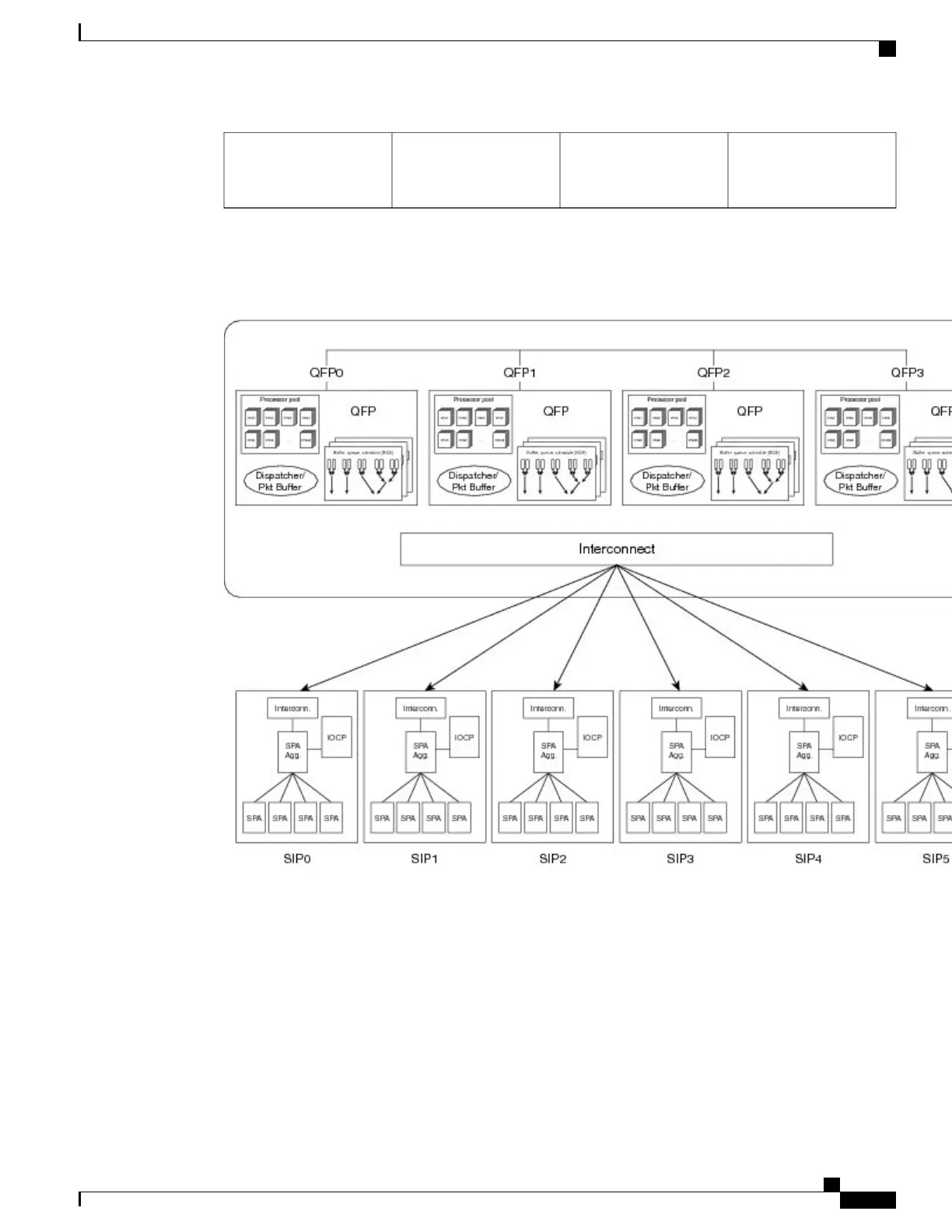

The following figure displays an example of a packet flow in the Cisco ASR 1000 ESP 200.
Figure 26: Packet flow in the Cisco ASR 1000 ESP 200
Implications of SIP and SPA Slot Mapping
Interfaces and sessions that have an egress QoS have their schedules and queues present in the QFP-3rd-Gen
ASIC that services the particular slot. Since there is a limitation of 29000 schedules and 116000 queues per
QFP-3rd-Gen ASIC, multiple QFP-3rd-Gen ASICs should be targeted by placing the SIP and SPA in the
correct order, in order to achieve full system scalability for schedules and queues.
For example, A 5xGE SPA supports more than 32000 point-to-point protocol (PPP) sessions depending on
the ESP. However, if QoS is applied to these sessions, the QFP-3rd-Gen ASIC that supports the SIP and SPA
slot can support only 29000 schedules, and these sessions share the 116000 queue limit. To support PPP
Cisco ASR 1000 Series Router Hardware Installation Guide
93
Cisco ASR 1000 Series Routers Embedded Services Processors
Cisco ASR 1000-ESP200 and Third Generation Cisco QFP

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
