Cisco ASR 1001 Hardware Installation Guide

Rack-Mounting the Cisco ASR 1001 Router
The Cisco ASR 1001 Router can be installed in an existing rack with equipment or in an empty rack with no
equipment: The chassis can be mounted in either rack types:
•
Two-post rack, either 19 inch or 23 inch. Inner clearance (the width between the inner sides of the two
posts or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 3.47 inches (8.8 cm).
Airflow through the chassis is from front to back.
If you are using a two-post rack secure the rack to the floor surface to prevent tipping and avoid bodily.Note
•
Four post, 19-inch equipment rack. Inner clearance (the width between the inner sides of the two posts
or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 1.71 inches (43.43 mm).
Airflow through the chassis is from front to back.
When handling the chassis, always follow proper lifting practices. See the “Chassis-Lifting Guidelines”
section in the Preparing Your Site for Installation chapter.
Note
The Cisco ASR 1001 Router can be installed with both front or rear rack-mount brackets.
Verifying Rack Dimensions
Before you install the chassis, measure the space between the vertical mounting flanges (rails) on your
equipment rack to verify that the rack conforms to the measurements shown in the following image.

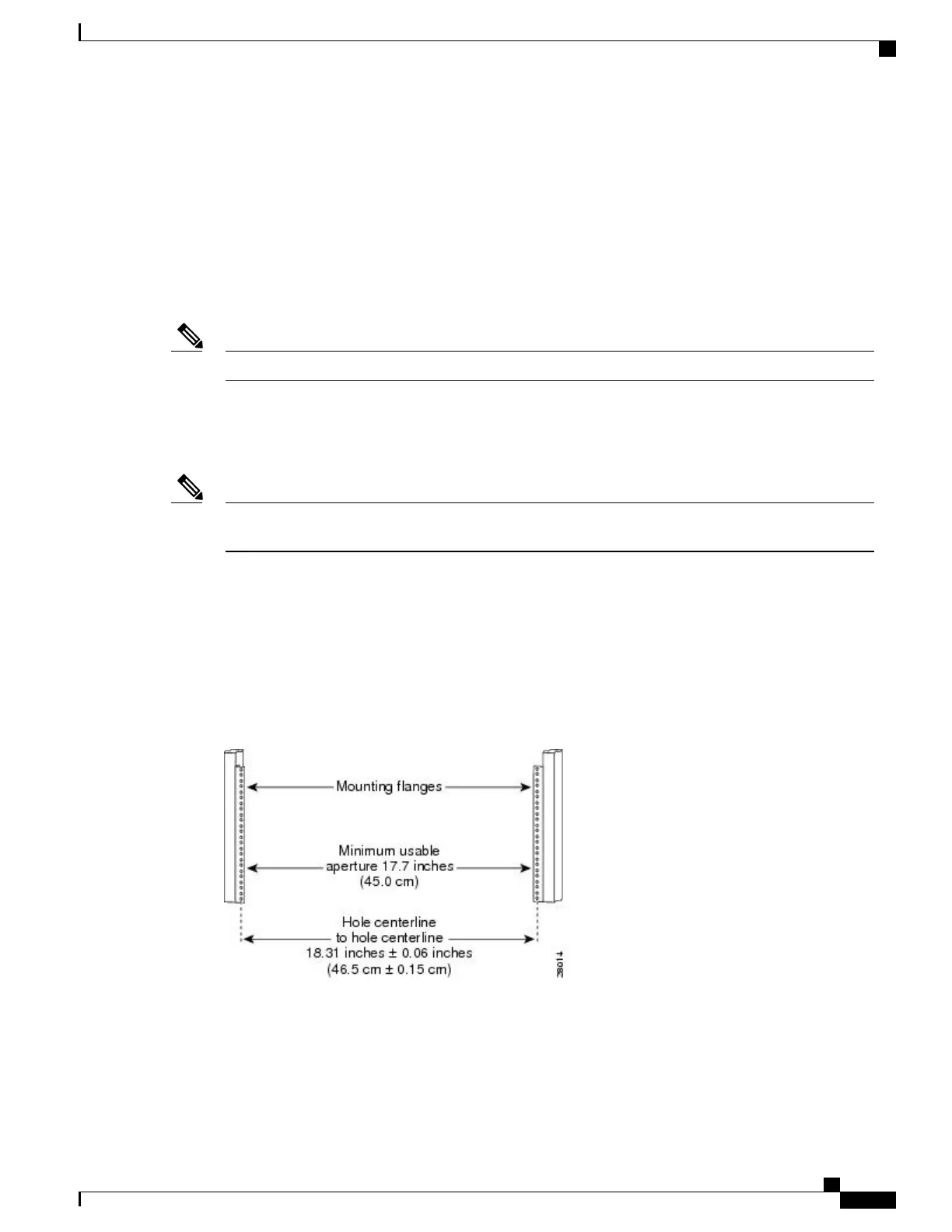

Figure 208: Verifying Equipment Rack Dimensions
Cisco ASR 1000 Series Router Hardware Installation Guide
429
Cisco ASR 1001 Router Overview and Installation
Rack-Mounting the Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
