Cisco ASR 1001 Hardware Installation Guide

DETAILED STEPS
Step 1
Remove any debris and dust from the tabletop or platform, as well as the surrounding area.
Step 2
Lift the chassis into position on the equipment shelf or tabletop.
At least two people are required to lift the chassis onto a tabletop or platform. To prevent injury, keep your
back straight and lift with your legs, not your back. Statement 164
Warning
Step 3
Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first holes beyond the
vent holes) and use the package of black screws that shipped with the chassis.
Step 4
Align the front rack-mount bracket to one side of the chassis.
Step 5
Insert and tighten the screws on one side.
Step 6
Repeat Step 2 through Step 3 on the other side of the chassis. Use all screws to secure the rack-mount brackets to the
chassis.
The chassis rack-mount brackets must be installed first so that you can attach the cable-management brackets
to the chassis rack-mount brackets after the chassis is installed in the rack.
Note
Step 7
Gather the two cable-management brackets and screws shipped with your chassis. The following image shows
cable-management brackets attached on the front of the Cisco ASR 1001 Router.
Make certain that the cable-management ‘U’ feature device has the open end pointing upwards when you attach
it to the chassis.
Note

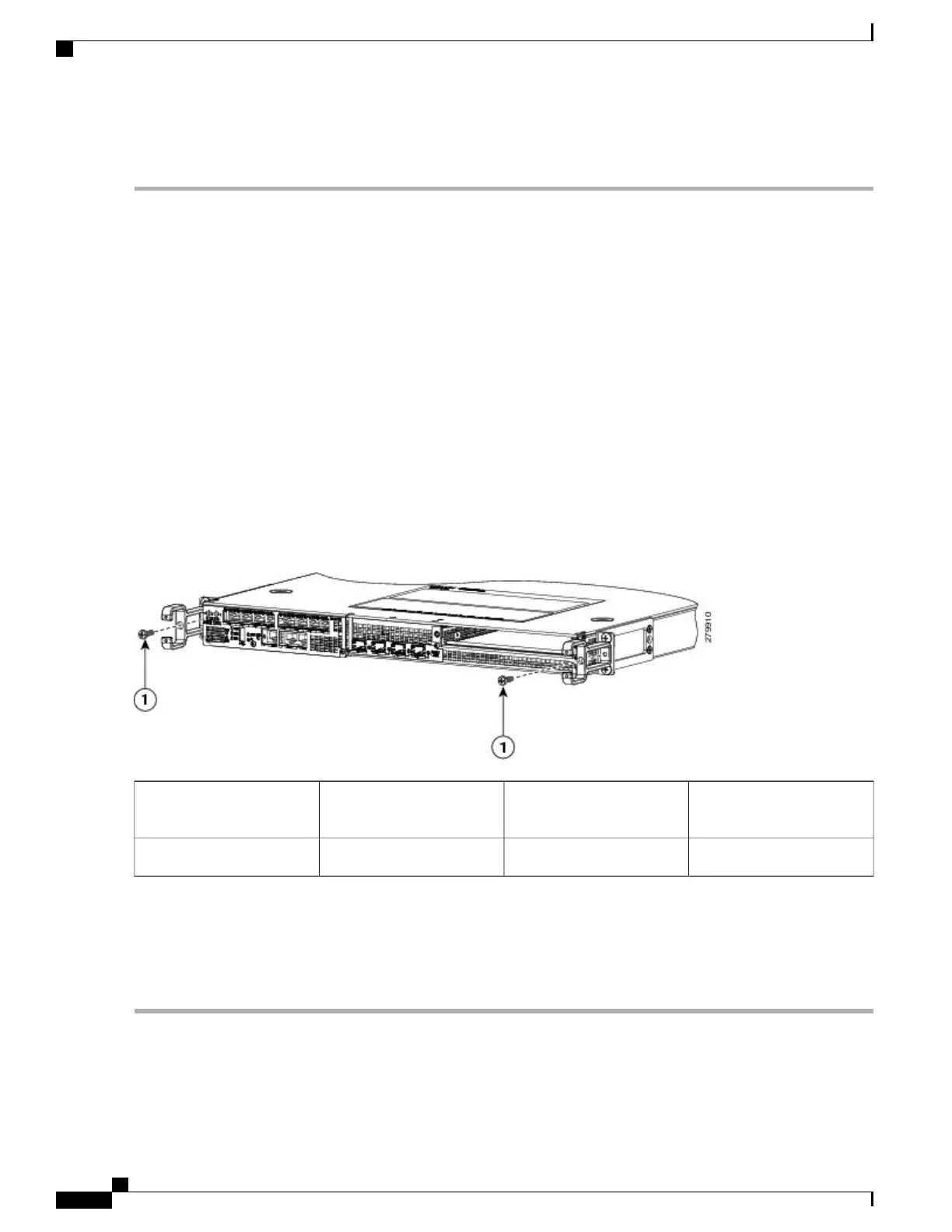

Figure 207: Attaching the Cable-Management Brackets to the Cisco ASR 1001 Router
Chassis front rack-mount
bracket
3Cable-management bracket
top and bottom screws
1
——
Cable-management bracket2
Step 8
Screw the cable-management bracket to each side of the rack-mount brackets that are attached to the chassis. Use two
screws for each cable-management bracket. Use a screw from the package of four screws.
Step 9
Check that all screws are securely tightened.
Step 10
Go to the Attaching a Chassis Ground Connection for instructions about continuing the installation.
Cisco ASR 1000 Series Router Hardware Installation Guide
428
Cisco ASR 1001 Router Overview and Installation
Mounting the Cisco ASR 1001 Router on an Equipment Shelf or Tabletop Installation

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
