Cisco ASR 1001 Hardware Installation Guide

All Cisco ASR 1000 Series Router AC power supplies must be connected to a branch circuit that does
not exceed 20 A.
Note
Read the safety warnings before you begin.
Never install an AC power module and a DC power module in the same chassis. Statement 1050Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074Warning
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority
or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning
This unit might have more than one power supply connection. All connections must be removed to
de-energize the unit. Statement 1028
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: AC power supplies 20 A and DC power supplies 30 A. Statement
1005
Warning
Connecting AC Input Power to the Cisco ASR 1002-F Router
This section provides instructions for installing the AC power supply into the Cisco ASR 1002-F Router.
shows the AC power supply labels. The following image shows the Cisco ASR 1002-F Router AC power
supply.

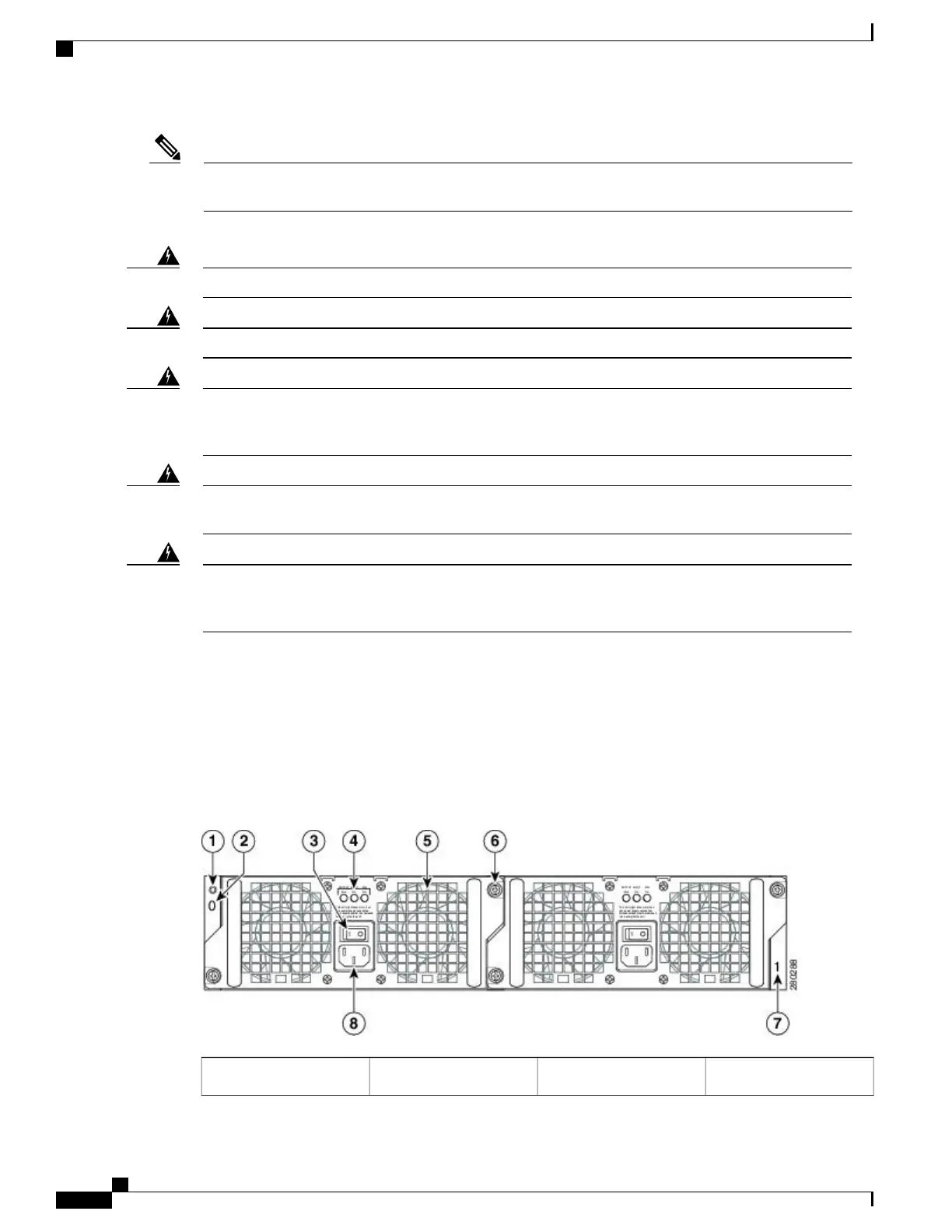

Figure 137: Cisco ASR 1002-F Router AC Power Supply Labels
Fan5Chassis ESD socket1
Cisco ASR 1000 Series Router Hardware Installation Guide
308
Cisco ASR 1002-F Router Overview and Installation
Connecting AC Input Power to the Cisco ASR 1002-F Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
