Cisco ASR 1001 Hardware Installation Guide

Step 2
Position the rear rack-mount bracket top hole with the chassis second top hole from the back.
Step 3
Insert and tighten the screws on one side.
Step 4
After the bracket is secured to the side of the chassis, slide the two remaining components into the side rack-mount
bracket.
Step 5
Repeat Step 1 through Step 3 on the other side of the chassis. Use all the screws to secure the rear rack-mount brackets
to the chassis.
What to Do Next
This completes the steps for attaching the rear rack-mount brackets to the Cisco ASR 1013 Router.
Rack-Mounting the Cisco ASR 1013 Router
The Cisco ASR 1013 Router comes installed with front forward rack-mount brackets. The rear rack-mount
brackets are optional and are shipped in the accessory kit along with a set of front rack-mount brackets. The
chassis rack-mounting flanges must be secured directly to the chassis before you lift it into the rack.
This section includes the following topics:
Verifying Rack Dimensions
Before you install the chassis, measure the space between the vertical mounting flanges (rails) on your
equipment rack to verify that the rack conforms to the measurements shown in the following image.

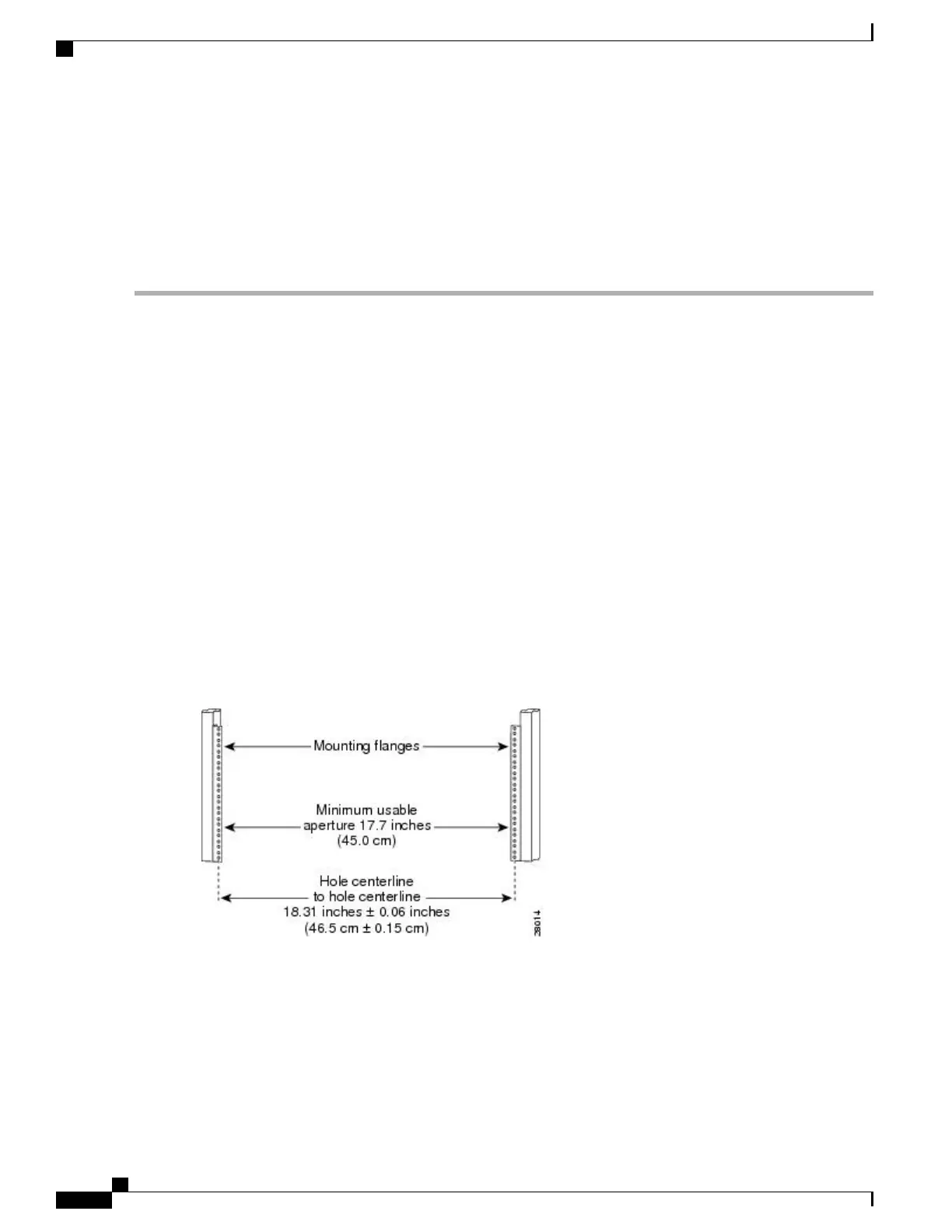

Figure 181: Verifying Equipment Rack Dimensions
SUMMARY STEPS
1.
Mark and measure the distance between two holes on the left and right mounting rails.
2.
Measure the space between the inner edges of the left front and right front mounting flanges on the
equipment rack.
Cisco ASR 1000 Series Router Hardware Installation Guide
376
Cisco ASR 1013 Router Overview and Installation
Rack-Mounting the Cisco ASR 1013 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
