Cisco ASR 1001 Hardware Installation Guide

AUX—One RS-232
auxiliary port
3
MGMT—One RJ-45
10/100/1000 management
Ethernet port
1
——CON—One RS-232
console port
2
Cisco ASR 1001 Chassis Front View

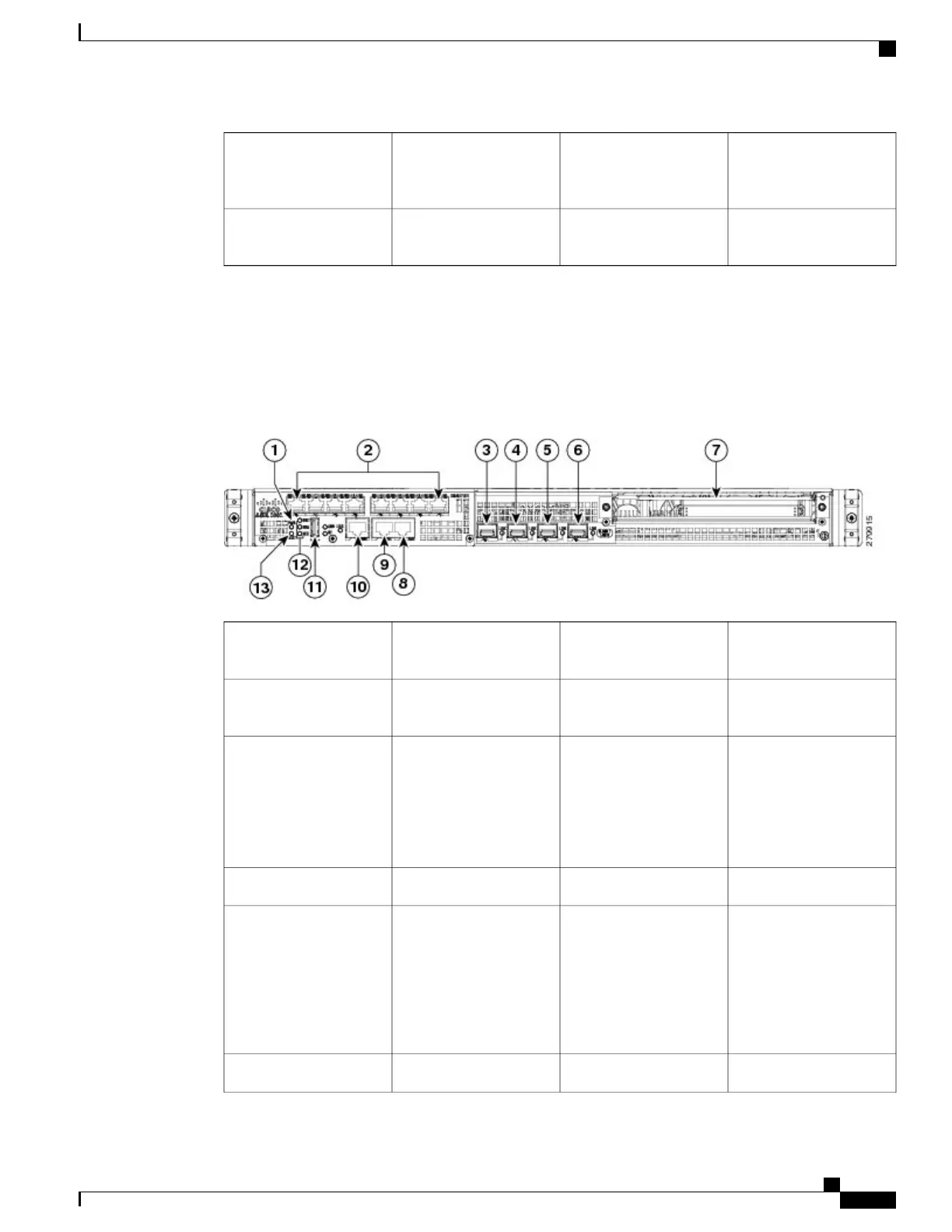

The following image shows the front of the Cisco ASR 1001 Router.
Figure 203: Cisco ASR 1001 Router Front View
AUX—one RS-232
auxiliary port
8
PWR—Power LED
1
CON—one RS-232
console port
9Integrated daughter card
I/O space
2
MGMT —one RJ-45
10/100/1000 management
Ethernet port
10
GE 2/0 and 0/0—The
built-in GE ports use
industry standard
front-panel removable
SFP optics and SFP
copper interfaces.
3
USB port11GE 2/1 and 0/14
CRIT LED—critical
alarm indicator
MAJ LED—major alarm
indicator
MIN LED —minor alarm
indicator
12GE 2/2 and 0/25
STAT—status LED
13GE 2/3 and 0/36
Cisco ASR 1000 Series Router Hardware Installation Guide
417
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Chassis Front View

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
