Cisco ASR 1001 Hardware Installation Guide

Figure 4-3 shows the slot numbering for the shared port adapters on the Cisco ASR 1000 Series SPA Interface
for the Cisco ASR 1006 Router and Cisco ASR 1004 Router.

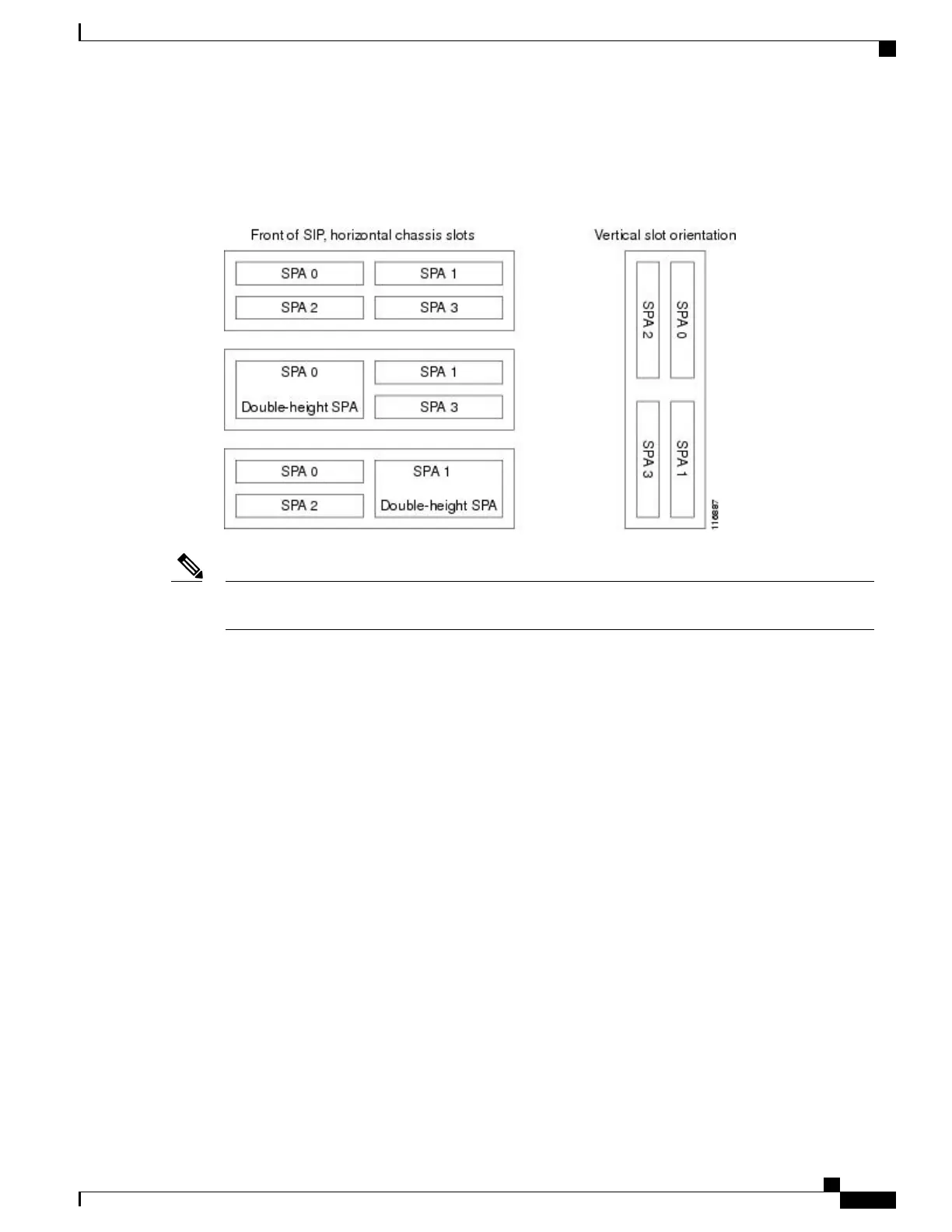

Figure 29: Cisco ASR 1004 Router and Cisco ASR 1006 Router SPA Interface Subslot Numbering
The slot numbering for the SPAs on the Cisco ASR 1004 Router is the same as the numbering on the
Cisco ASR 1006 Router.
Note
Cisco ASR 1002 Router
In the Cisco ASR 1002 Router, the Cisco ASR1002-SIP10 supports:
•
Three removable half-height SPAs on Bay 1, 2, and 3
•
The fourth SPA is a built-in 4xGE SPA on Bay 0 located on the Cisco ASR 1000 Series RP1
Cisco ASR 1000 Series Router Hardware Installation Guide
105
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
