Cisco ASR 1001 Hardware Installation Guide

For information about the SFP transceiver modules that are compatible with the Cisco ASR 1002-X Built-in
Gigabit Ethernet Ports (6x1GE), refer to the “Modular Optics Compatibility” section in the Cisco ASR 1000
Series Aggregation Services Routers SIP and SPA Hardware Installation Guide .
•
An optional hard drive.
The forwarding bandwidth provided by the Cisco ASR 1002-X Router's ESP can be upgraded to 36 Gbps,
depending on the Cisco software license that you install. The power supply modules of the router are
field-replaceable units.
This section contains the following topics:
Front View of the Cisco ASR 1002-X Router
The following image shows the front view of the Cisco ASR 1002-X Router.

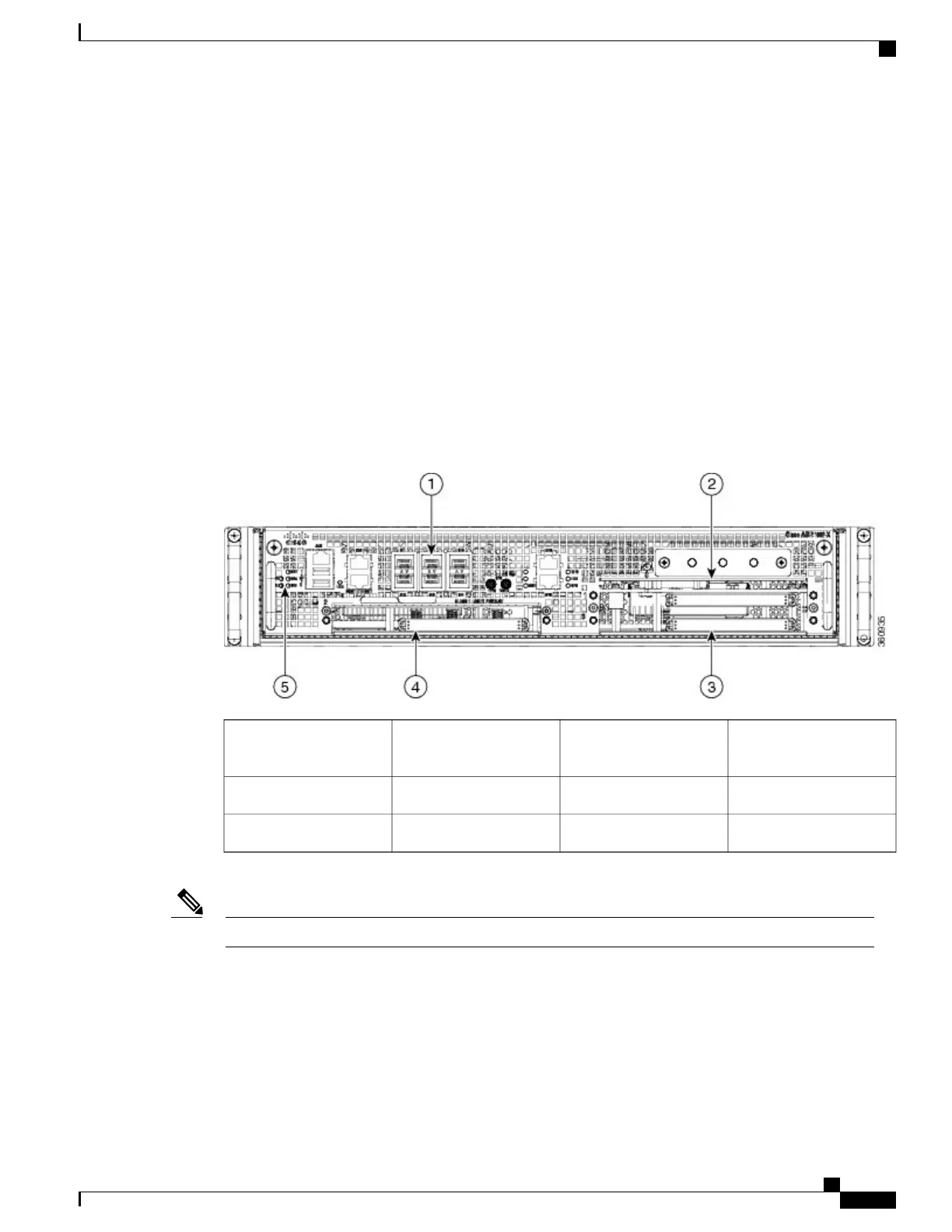

Figure 144: Cisco ASR 1002-X Router — Front View
SPA slot 24Built-in 6x1GE SPA in
slot 0
1
ESP LEDs5SPA slot 12
SPA slot 33
The SPAs that you insert in slots 1 to 3 are field upgradeable.Note
Cisco ASR 1000 Series Router Hardware Installation Guide
319
Cisco ASR 1002-X Router Overview and Installation
Front View of the Cisco ASR 1002-X Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
