Cisco ASR 1001 Hardware Installation Guide

http://www.cisco.com/en/US/partner/docs/interfaces_modules/port_adapters/install_upgrade/pos/
pa-pos-oc3_install_config/paposoc3.html
Connecting the Console and Auxiliary Port Cables
The Cisco ASR 1004 Router has a DCE-mode console port for connecting a console terminal and an auxiliary
port for additional connections to your chassis. The auxiliary port can also be used for diagnostics. The

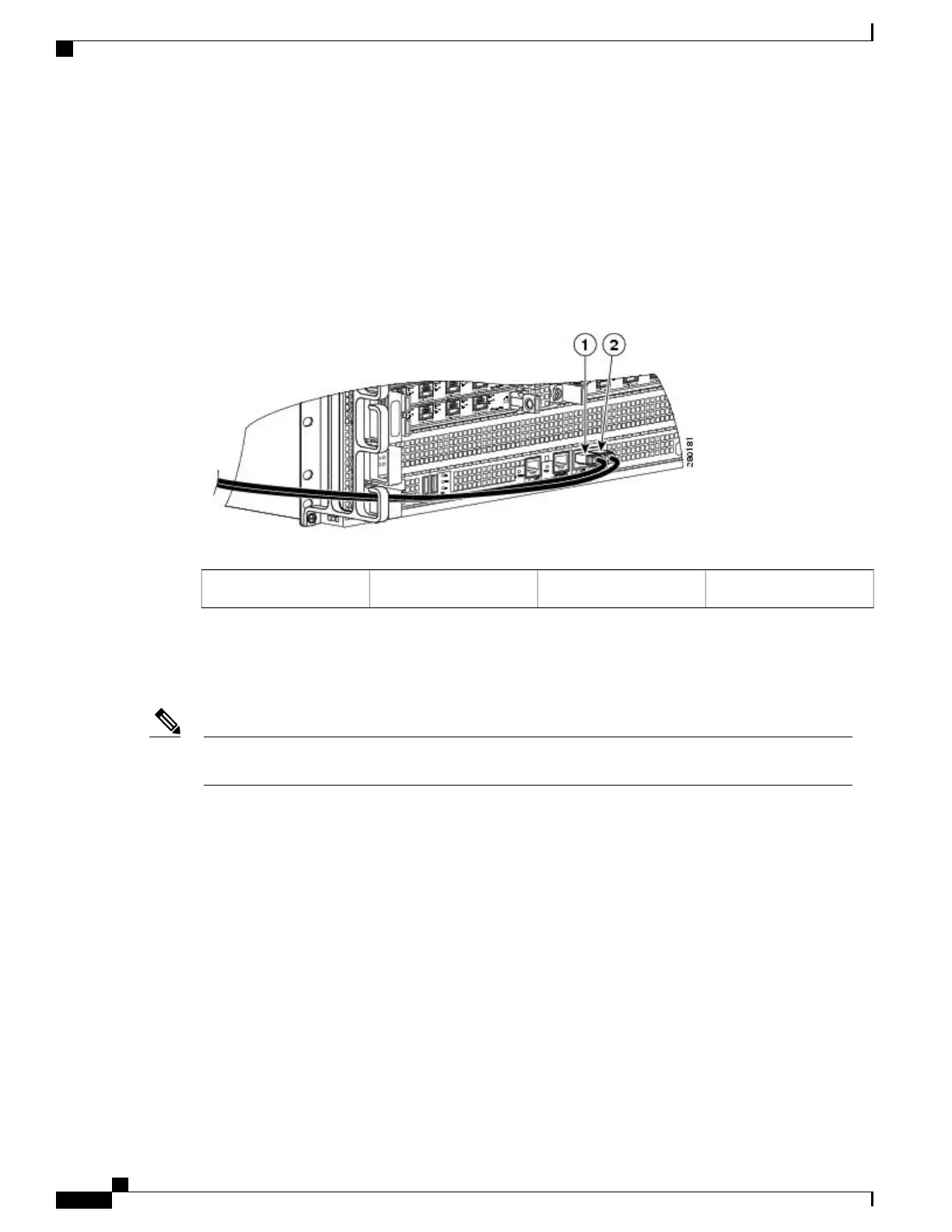

following shows the CON and AUX ports on the Cisco ASR 1000 Series route processor.
Auxiliary port - AUX2Console port - CON1
The Cisco ASR 1004 Router uses RJ-45 ports for both the auxiliary port and the console port. Both the console
and the auxiliary ports are asynchronous serial ports; any devices connected to these ports must be capable
of asynchronous transmission.
A connection will not be established when setting up an out-of-band connection or modem connection in
the auxiliary port and the console port.
Note
For console and auxiliary port pinouts for the RJ-45 connector, see “Cisco ASR 1004 Router Specifications”
section on page A-5 . Both ports are configured as asynchronous serial ports.
SUMMARY STEPS
1.
Before connecting a terminal to the console port, configure the terminal to match the chassis console port
as follows: 9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
2.
After you establish normal router operation, you can disconnect the terminal.
Cisco ASR 1000 Series Router Hardware Installation Guide
206
Cisco ASR 1004 Router Overview and Installation
Connecting the Console and Auxiliary Port Cables

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
