Cisco ASR 1001 Hardware Installation Guide

Slot R0 with ASR 1000
Series RP2
7ASR 1000 Series SIP slot
4
2
ASR 1000 Series SIP slot
2
8ASR 1000 Series SIP slot
3
3
ASR 1000 Series SIP slot
1
9Slot R1 with ASR 1000
Series RP2
4
ASR 1000 Series SIP slot
0
10Slot F1 with ASR 1000
Series ESP-40
5
Note: Slots 10, 9, 8, 7,
and 6 reside in Zone 0
and slots 5, 4, 3, 2, and
1 reside in Zone 1.
For detailed information about specifying SIP subslot location for a SPA and specifying slot location for a
SIP, see Cisco Aggregation Services Router 1000 Series SIP and SPA Software Configuration Guide .
Cisco ASR 1001 Router
In the Cisco ASR 1001 Router, the Cisco ASR1000-SIP10 supports:
•
One flexible integrated daughter card I/O slot
•
One half-height SPA bay
Figure 32: Cisco ASR 1001 Router Slot Numbering , on page 109 shows slot numbering on the Cisco ASR
1001 Router.

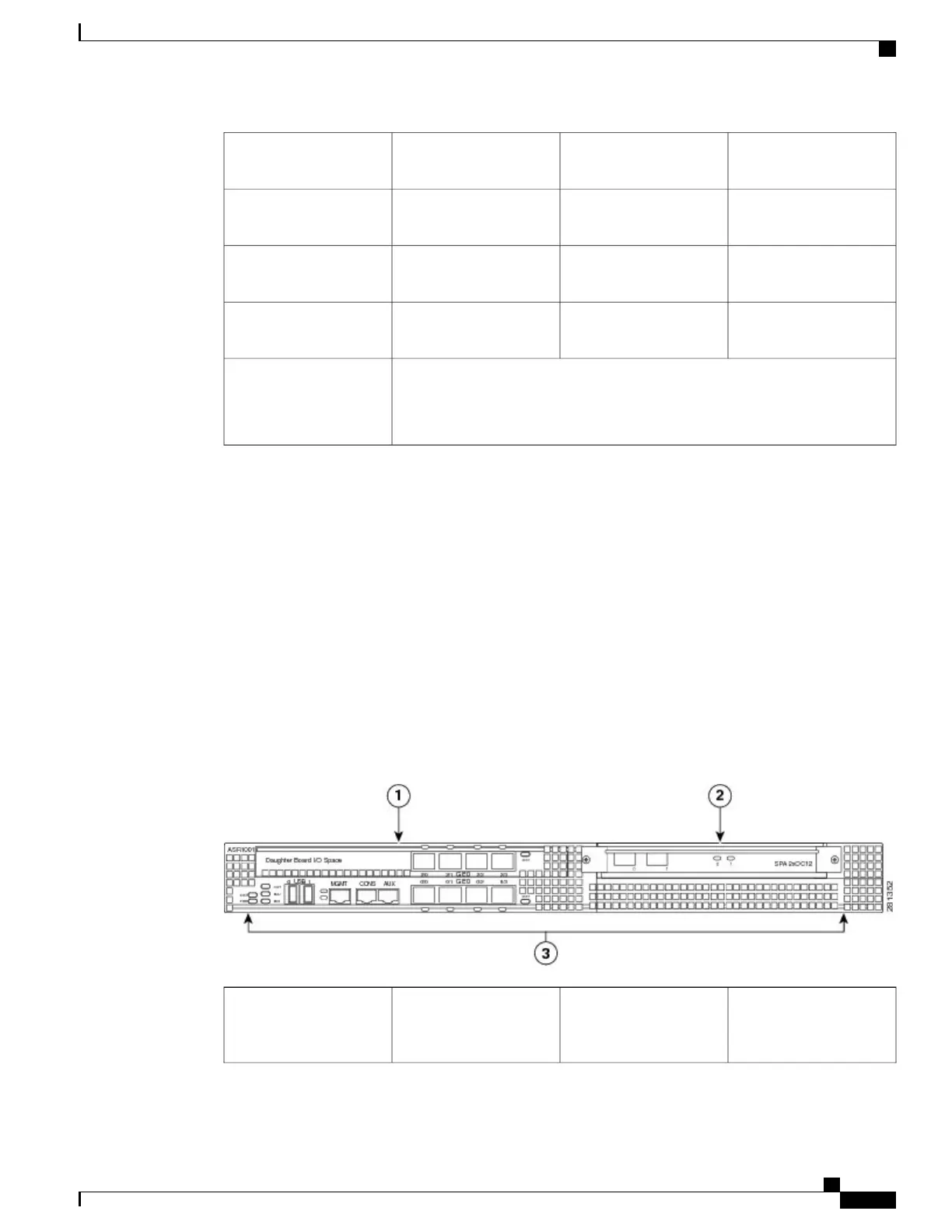

Figure 32: Cisco ASR 1001 Router Slot Numbering
Slot 0 connected to the
built-in 4x1GE SPA on
the mainboard
3Slot 2 connected to the
flexible integrated
daughter card
1
Cisco ASR 1000 Series Router Hardware Installation Guide
109
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
