The following figure is only a sample of how the memory stick is inserted into the port and does not display
the Cisco ASR 1000 Series RP faceplate.
Note

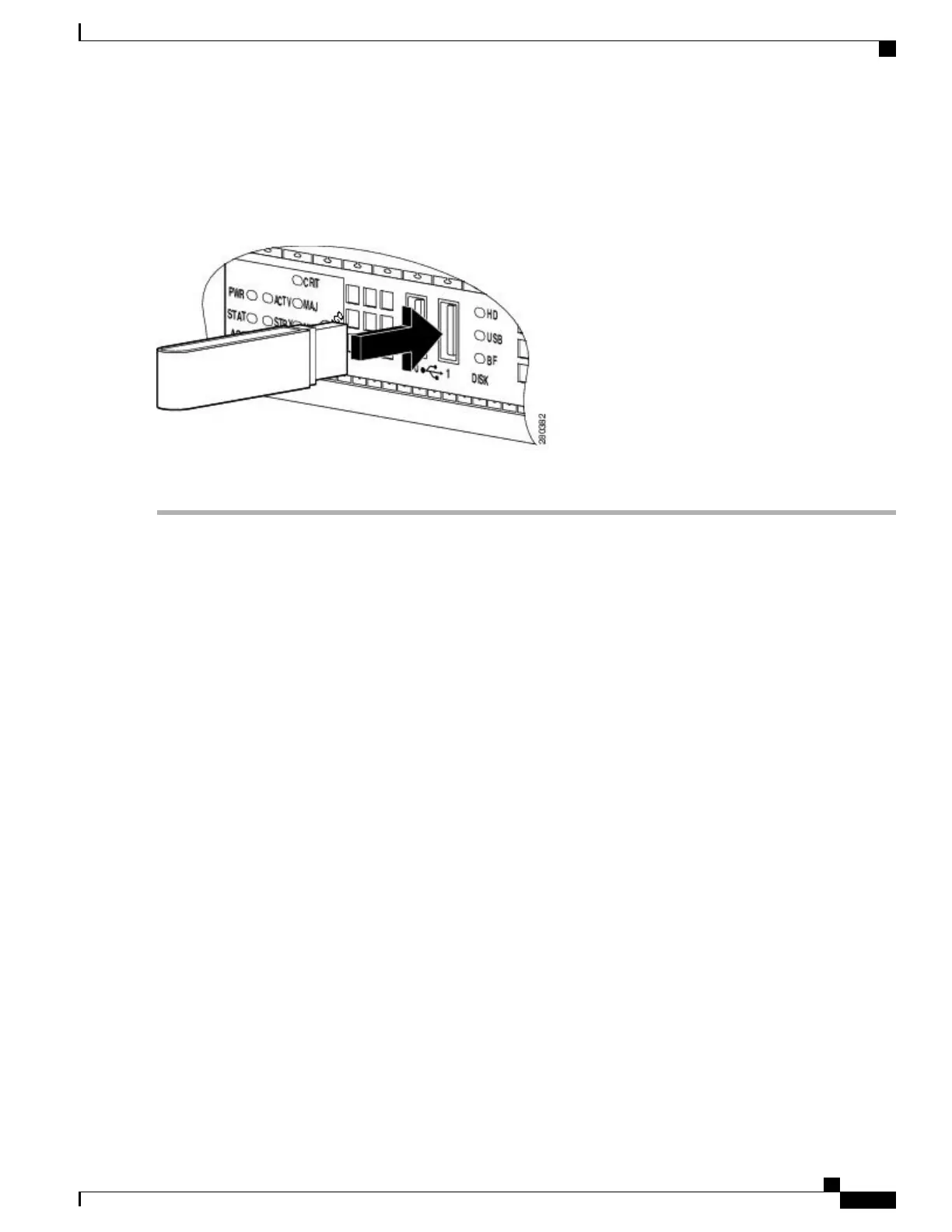

Figure 261: Cisco ASR 1000 Series Route Processor 1 Flash Token Memory Stick
You can insert or remove the memory stick whether the router is powered on or
not.
Note
What to Do Next
This completes the USB Flash memory installation procedure.
Minimum Requirements of eUSB Devices Supported on Cisco
ASR 1000 Series Routers
This section provides details regarding addition of an output message, indicating whether the eUSB device
currently used on the Route Processor (RP) is correct or the eUSB device is of less capacity and is incompatible
with the RP. This additional message has been introduced for the ASR 1000 Chassis Types (2,4,6,13RU) in
Cisco IOS XE Release 2.3.0S. Additionally, this change specifically for Cisco ASR 1001 Router Chassis has
been introduced in the Cisco IOS XE Release 2.4.0S.
Previous Behavior
Some of the Cisco ASR 1000 Series Routers were shipped with low-capacity eUSB devices on the
Route-processor boards. It is not an easy way to detect the presence of an invalid eUSB device with low
capacity on the RP. As the RP boards has already been shipped, it is important to provide information about
the presence of an incorrect eUSB device or a eUSB device with less capacity. Earlier, an additional
informational message was not displayed even if the eUSB device was of less capacity for the RP used on
the system.
Corrective Action Required
If the eUSB device is of less capacity and is not compatible as indicated in the Cisco IOS message then you
need to contact Cisco System Inc. and get the eUSB replaced. Prolonged use of routers with less capacity
eUSB devices would result in unpredictable behavior.
Cisco ASR 1000 Series Router Hardware Installation Guide
529
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Minimum Requirements of eUSB Devices Supported on Cisco ASR 1000 Series Routers

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
