Removing and Replacing an AC Power Supply in Cisco ASR 1002 Router
This section provides information about removing and replacing an AC power supply in the Cisco ASR 1002
Router.
You must have both power supplies installed in the Cisco router.Note
The Cisco ASR 1002 Router has two of the same type power supplies in power supply slot 0 and power supply
slot 1. The following figure shows the Cisco ASR 1002 Router AC power supply.

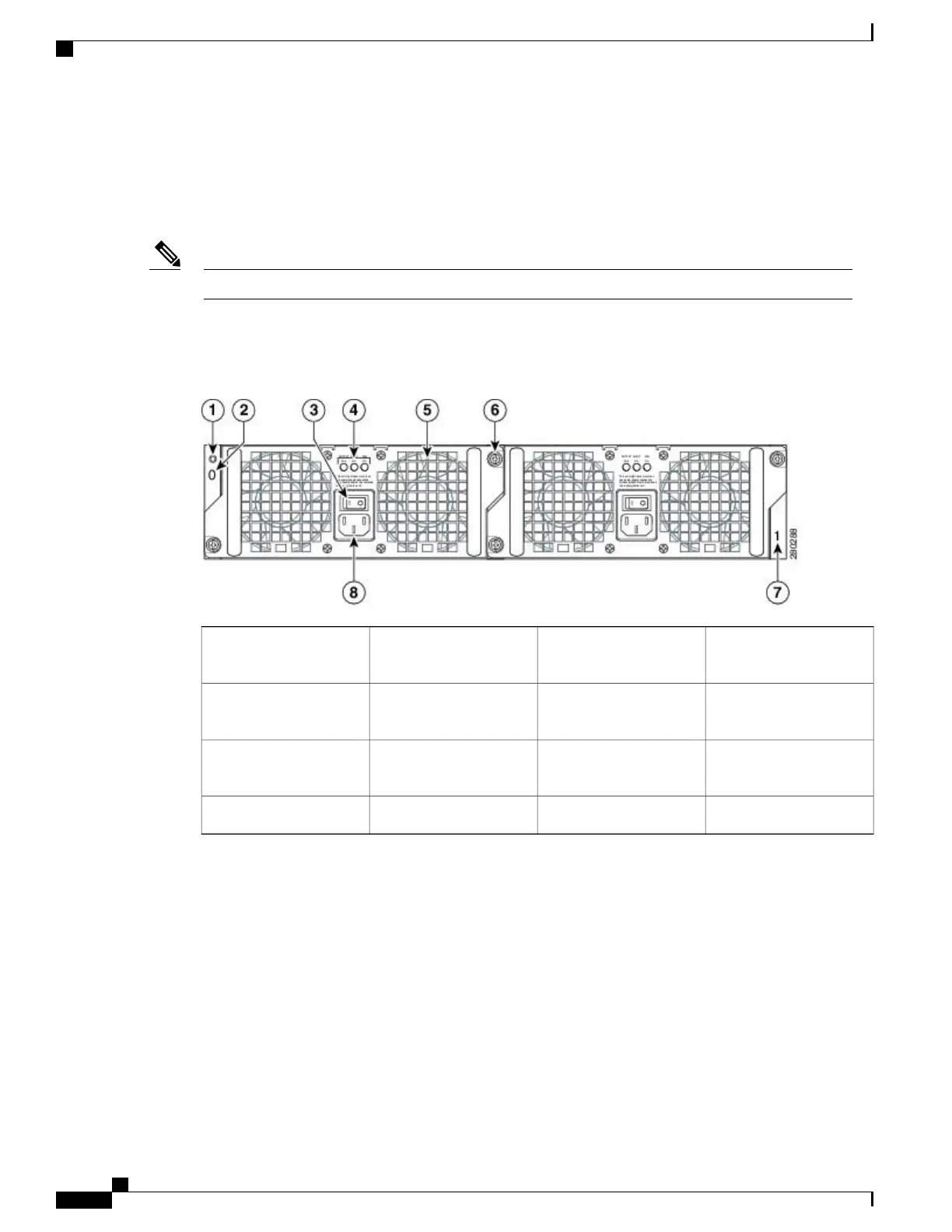

Figure 277: Cisco ASR 1002 Router AC Power Supply
Fan5AC power supply ESD
socket
1
Captive installation screw6AC power supply slot 0
label
2
AC power supply slot 1
label
7AC power supply On (|)
/Off (O) switch
3
AC power inlet8AC power supply LEDs4
Removing the AC Power Supply from Cisco ASR 1002 Router
To remove the AC power supply from the Cisco ASR 1002 Router, follow these steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
566
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing an AC Power Supply in Cisco ASR 1002 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
