Cisco ASR 1001 Hardware Installation Guide

Step 6
Once the power supply fasteners are loosened, grasp the handle with one hand and support the weight of power supply
with the other hand and pull the power supply out of the slot (see the following figure).

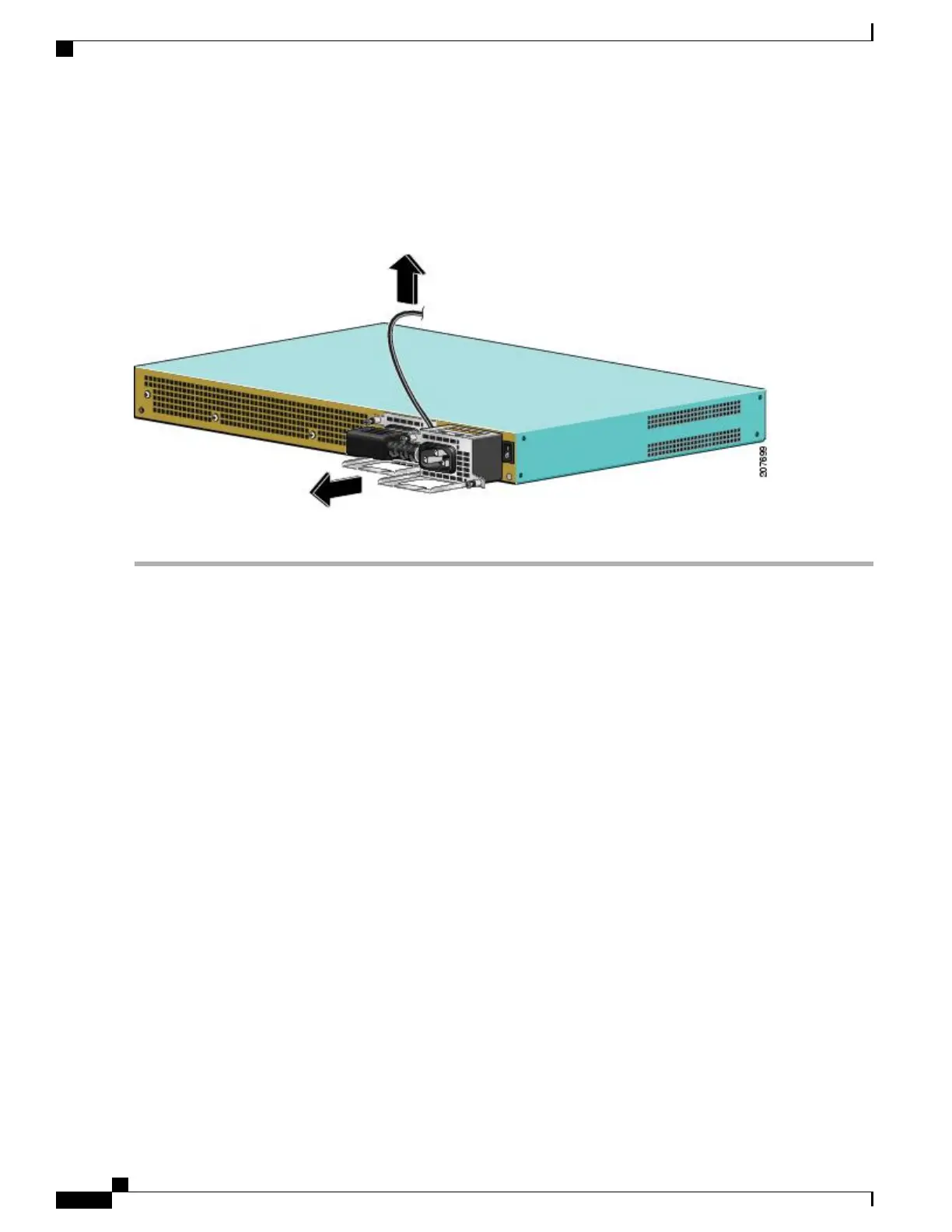

Figure 304: Removing the Cisco ASR 1001 Router AC Power Supply Cables
Step 7
Repeat the same steps to remove the AC power supply from Slot PS0.
What to Do Next
This completes the procedure for removing an AC power supply from the Cisco ASR 1001 Router.
Installing DC Power Supply into Cisco ASR 1001 Router
The Cisco ASR 1001 Router DC input connector is compatible with a pluggable Euro-style plug. The input
connector and plug must be UL recognized under UL 486 for field wiring. The connection polarity shall be
from left to right: negative (–), positive (+), and ground.
Cisco ASR 1000 Series Router Hardware Installation Guide
604
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Installing DC Power Supply into Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
