Cisco ASR 1001 Hardware Installation Guide

The following image shows where to attach the cable-management brackets to the Cisco ASR 1004 Router in a rack.

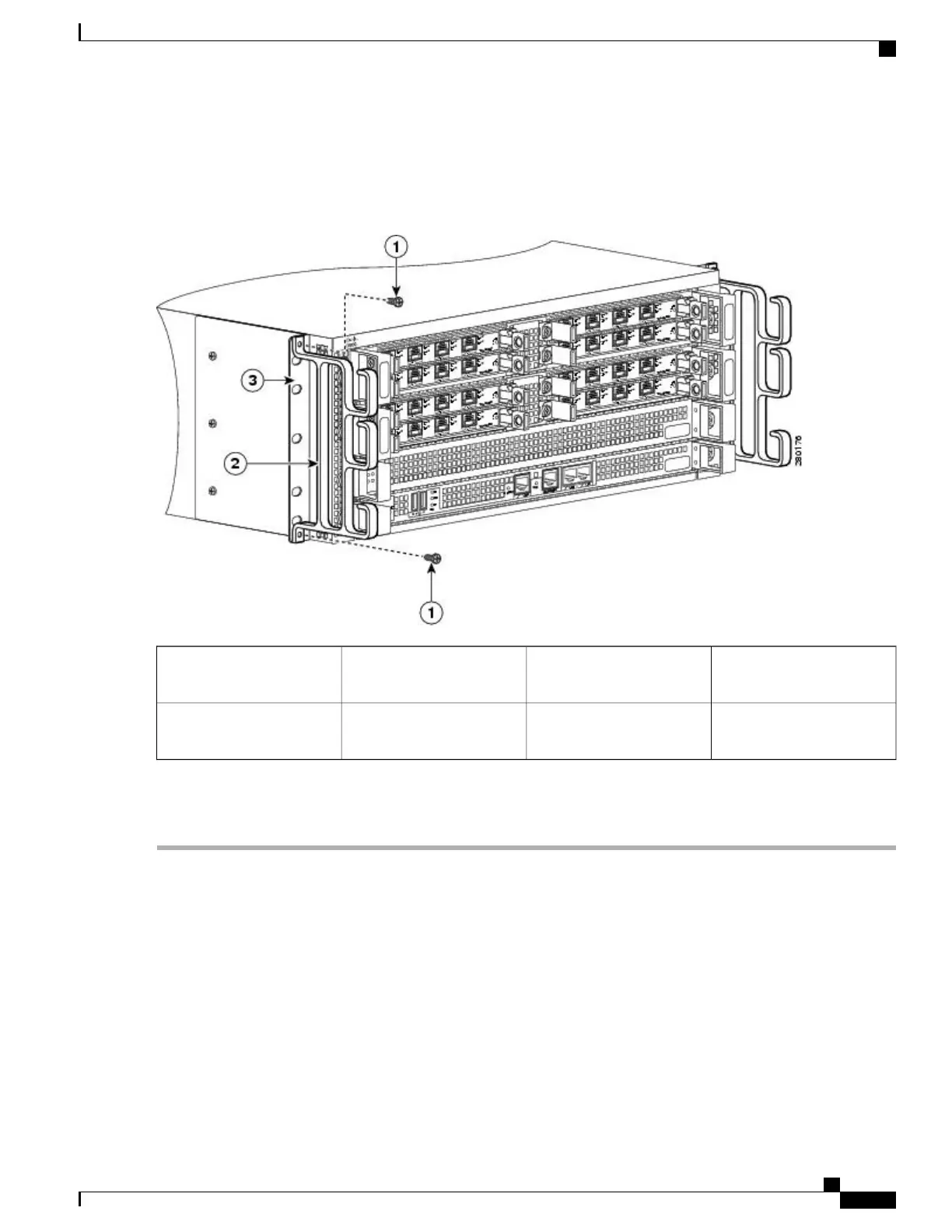

Figure 71: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket
Chassis rack-mount bracket3Cable-management bracket
top and bottom screw
1
——
Cable-management bracket
and U feature device
2
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Figure 71: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket, on page 205).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis in a rack.
Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter installed in the Cisco ASR 1004 Router
are contained in the respective configuration documents for each port adapter. For example, if you are
connecting the optical fiber cables for the PA-POS-OC3 port adapter, see PA-POS-OC3 Port Adapter
Installation and Configuration at the following location:
Cisco ASR 1000 Series Router Hardware Installation Guide
205
Cisco ASR 1004 Router Overview and Installation
Connecting the Shared Port Adapter Cables

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
