Cisco ASR 1001 Hardware Installation Guide

Maximum System SupportDefaultMemory Type
Hard disk drive 40 GB for code storage or
solid-state drive 32 GB support
1 GB (Partitioned: 2x32MB for NVRAM
and the remaining for mass storage
eUSB
Cisco ASR 1006 Router Ethernet RJ-45 Port Pinouts
The Cisco ASR 1006 Router has an RJ-45 port for the 10/100/1000 Ethernet connection. The RJ-45 port
supports IEEE 802.3ab (Gigabit Ethernet) and IEEE 802.3u (Fast Ethernet) interfaces compliant with 10BASET,
100BASETX, and 1000BASET specifications.
The RJ-45 port supports standard straight-through and crossover Category 5 UTP cables with RJ-45 connectors.
Cisco does not supply Category 5 UTP cables; these cables are available commercially.

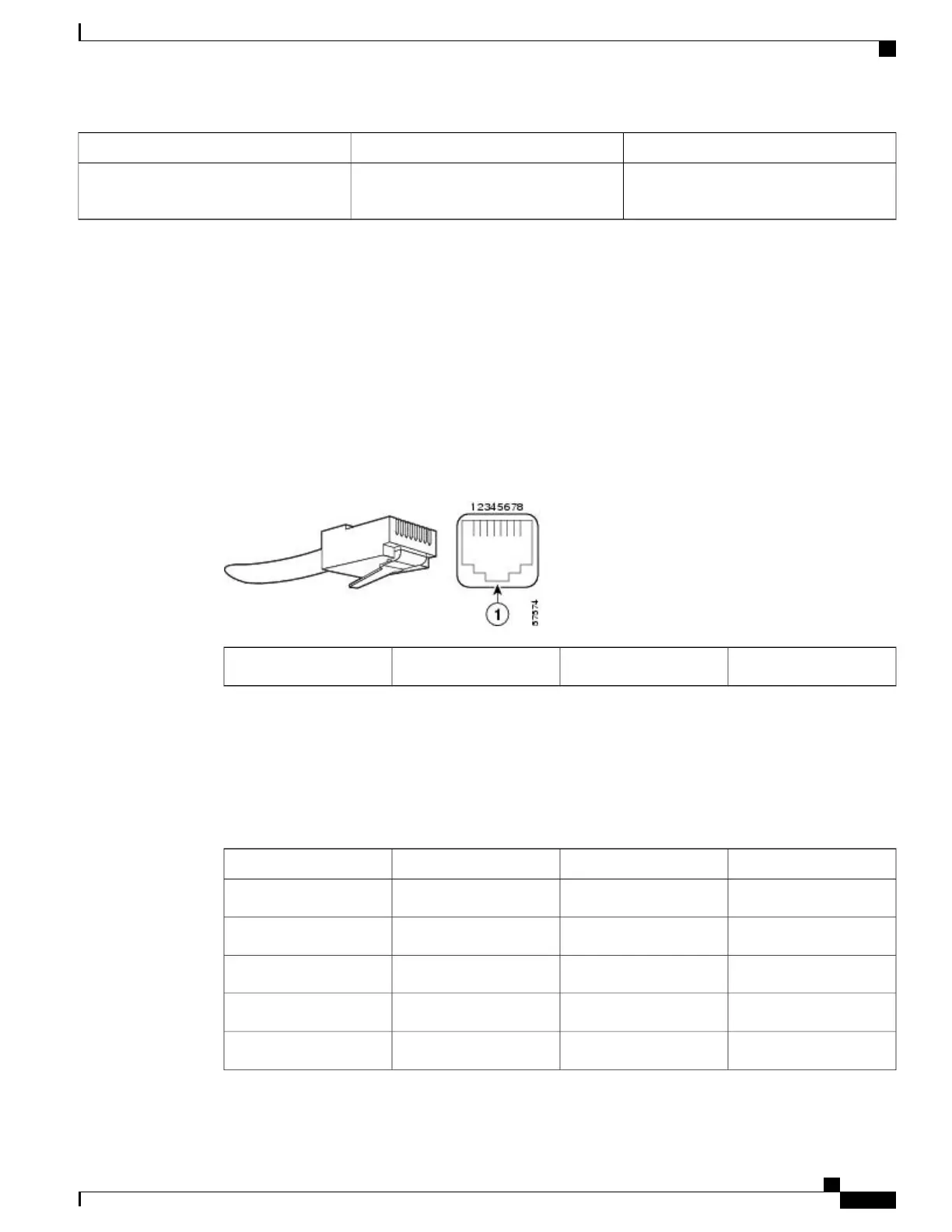

The following figure shows an RJ-45 port and connector.
Figure 312: RJ-45 Port and Connector for Cisco ASR 1006 Router
——
RJ-45 connector1
Cisco ASR 1006 Router MGMT Ethernet Port Pinouts
The following table lists the RJ-45 port pinout for the front panel Management Ethernet port.
Table 97: RJ-45 Management Ethernet Port Pinouts
DescriptionDirectionSignalPin
Transmit DataOutTX Data+1
Transmit DataOut
TX Data–
2
Receive DataInRX Data+3
——
NC4, 5
Receive DataIn
RX Data–
6
Cisco ASR 1000 Series Router Hardware Installation Guide
617
Cisco ASR 1000 Series Router Specifications
Cisco ASR 1006 Router Ethernet RJ-45 Port Pinouts

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
