Cisco ASR 1001 Hardware Installation Guide

Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Installing the AC Power Supply into Cisco ASR 1001 Router
The Cisco ASR 1001 Router has two AC power supplies at the rear of the chassis. The input receptacle is an
IEC60320 C14 type of filtered AC Inlet. The current rating on the connector is 10 A. The following figure
shows the ASR 1001 Router AC power supply.

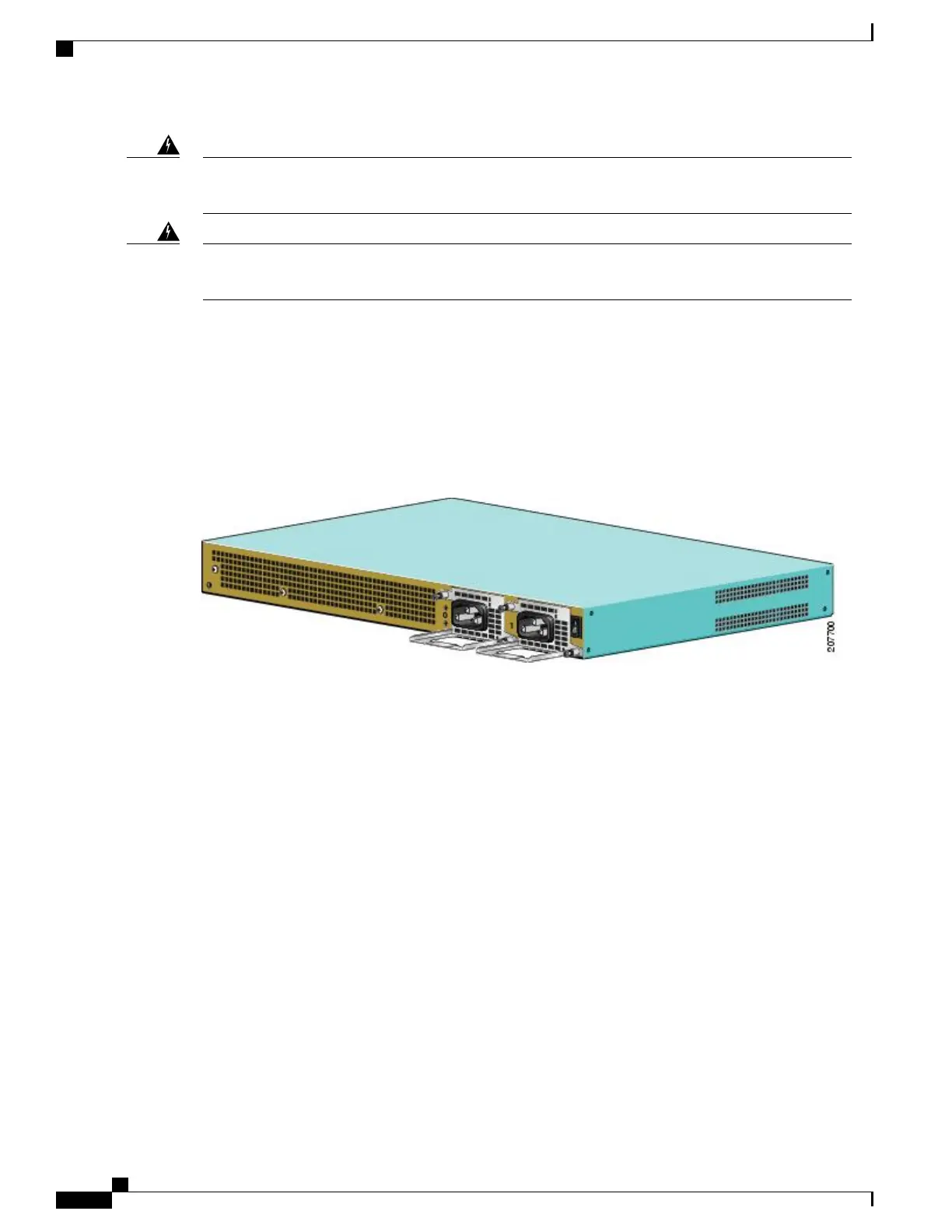

Figure 300: Cisco ASR 1001 Router AC Power Supply
To connect an AC-input power supply to the Cisco ASR 1001 Router, follow these steps:
SUMMARY STEPS
1.
There are two power supplies installed. At the rear of the chassis, check whether the power switch on the
chassis is in the Standby position.
2.
Turn off the circuit breaker to the power supply.
3.
For easier installation, plug the power cable into the inlet on power supply slot 1 first.
4.
Insert the power supply cable into the power supply in slot 0 on the left.
5.
Ensure that the AC power cords are positioned, as shown in the following figure.
6.
Plug the AC power supply cables into the AC power source.
7.
Turn on the AC breaker.
8.
Turn the Standby switch to On (|) on the chassis.
9.
The power supply LEDs illuminate green.
Cisco ASR 1000 Series Router Hardware Installation Guide
600
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Installing the AC Power Supply into Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
