Cisco ASR 1001 Hardware Installation Guide

The following figure shows the Cisco ASR 1002-F Router integrated RP console and auxiliary port connection.

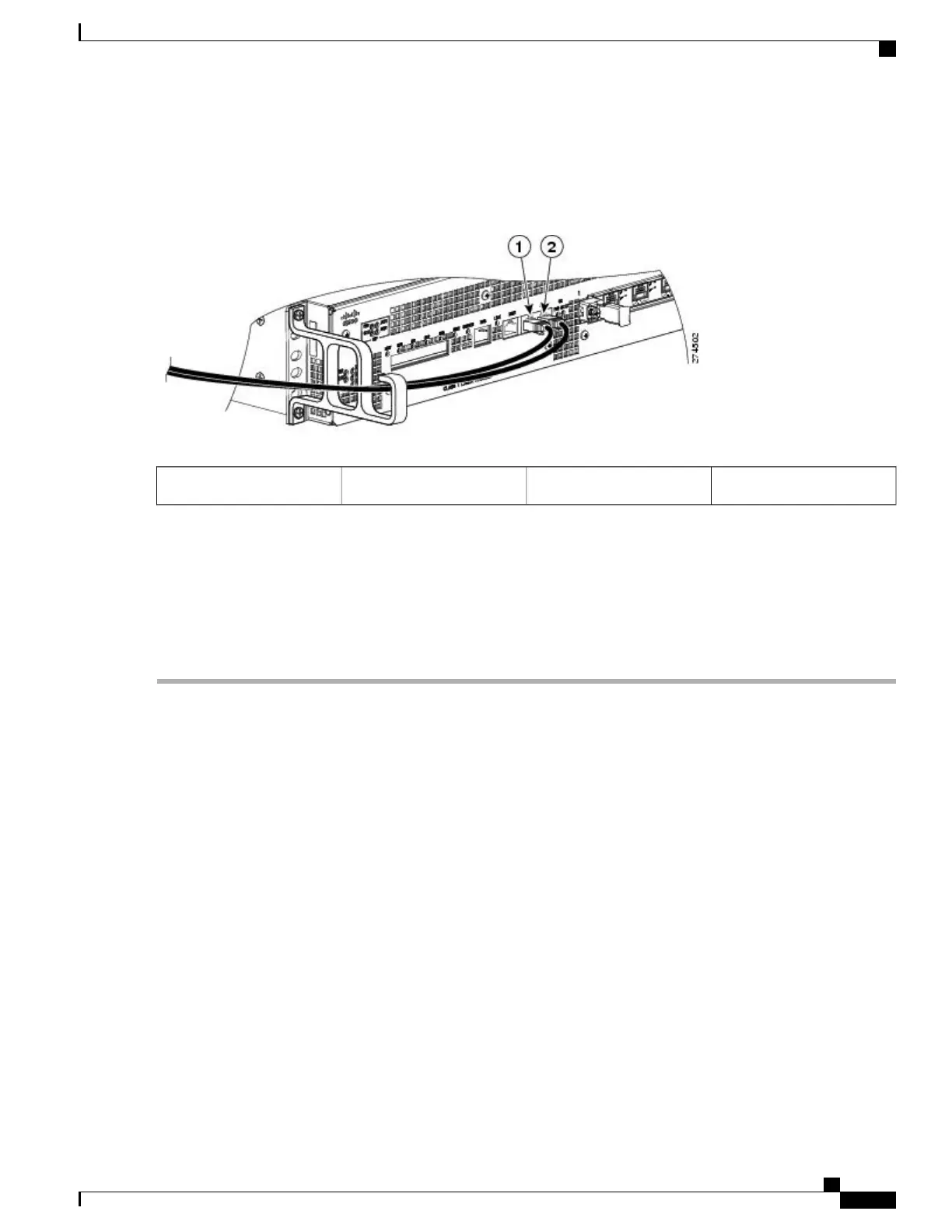

Figure 143: Cisco ASR 1002-F Router Integrated RP Console and Auxiliary Port Connection
Auxiliary port (AUX)2Console port (CON)1
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable to the RJ-45
adapter (see the above figure).
Step 3
Connect the adapter to your video terminal to complete the cable connection.
Step 4
Power on your video terminal.
Step 5
Configure your video terminal to match the following default console port settings: 9600 baud, 8 data bits, no parity
generation or checking, 1 stop bit, and no flow control
What to Do Next
Go to the “Connecting Cables” section to continue the installation.
Connecting Cables
Keep the following guidelines in mind when connecting external cables to the Cisco ASR 1002-F Router:
•
To reduce the chance of interference, avoid crossing high-power lines with any interface cables.
•
Verify all cabling limitations (particularly distance) before powering on the system
.
Cisco ASR 1000 Series Router Hardware Installation Guide
315
Cisco ASR 1002-F Router Overview and Installation
Connecting Cables

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
