The shared port adapters on the Cisco ASR1002-SIP10 support online insertion and removal. However,
the Cisco ASR1002-SIP10 in the Cisco ASR 1002 Router is built into the chassis and is not a
field-replaceable unit and does not support online insertion and removal.Figure 30: Cisco ASR1002-SIP10
Interface Subslot Numbering, on page 106 shows the slot numbering for the shared port adapters on the
Cisco ASR 1000 Series SPA Interface for the Cisco ASR 1002 Router.
Note

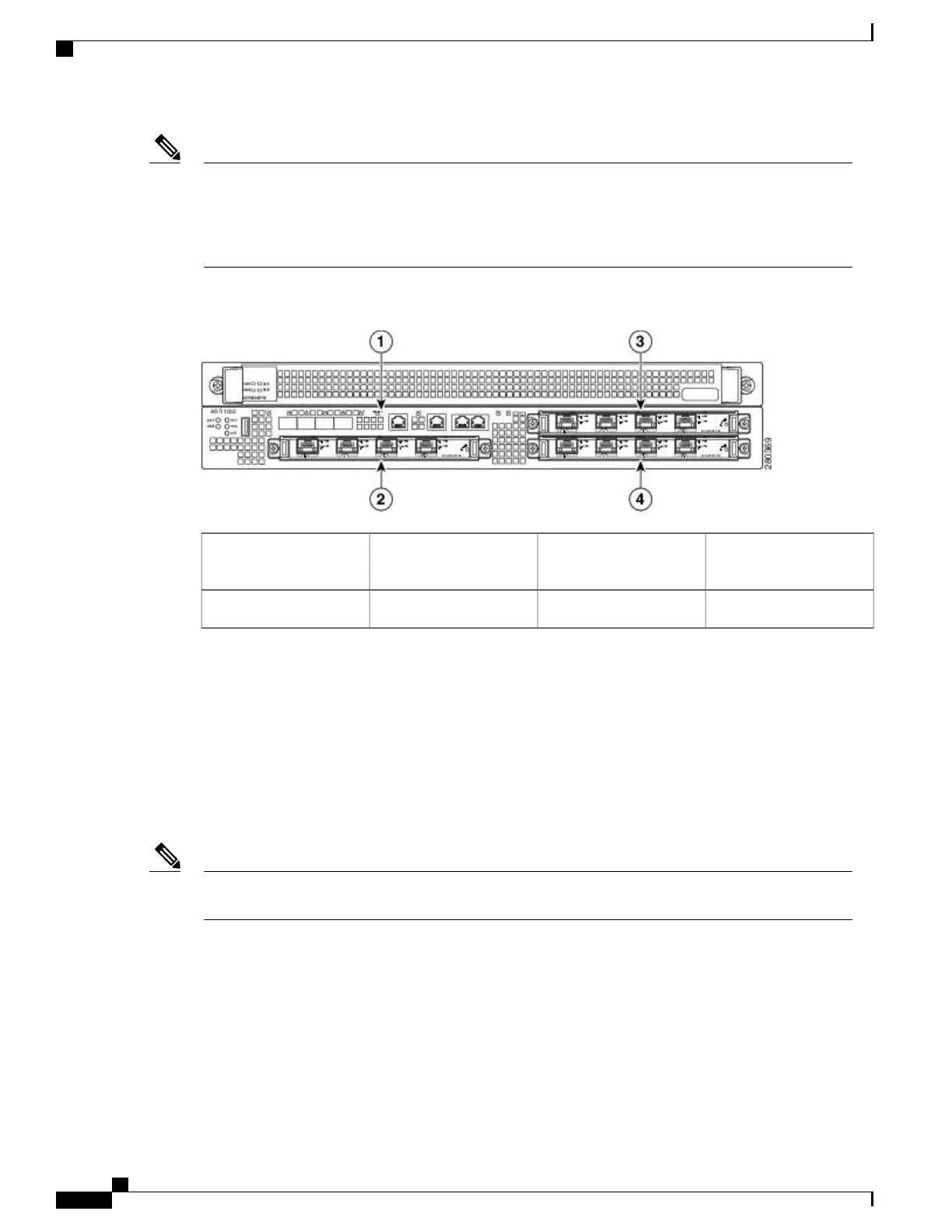

Figure 30: Cisco ASR1002-SIP10 Interface Subslot Numbering
SPA subslot 13Cisco integrated
ASR1000-RP1 subslot 0
1
SPA subslot 34SPA subslot 22
The Cisco integrated ASR1000-SIP10 (in the Cisco ASR 1002 Router) supports one built-in 4xGE SPA and
three half height SPAs in any one of the following configurations:
•
Built-in 4xGE SPA in bay 0 and three half height SPAs in bay 1, 2, 3.
•
Built-in 4xGE SPA in bay 0, one half height SPA in bay 2, and one full height SPA in bay 1.
The Cisco ASR 1000 Series SPA interface processor houses SPA bay 2 and SPA bay 3. SPA bay 0 and SPA
bay 1 are physically located on Cisco integrated ASR1000-RP1. A portion of the Cisco integrated ASR1000-RP1
is reserved to provide connectivity between SPA bay 1 and the Cisco integrated ASR1000-SIP10.
The integrated Cisco ASR1000-RP1 subslot 1 must communicate to subslot 3 of the integrated SIP when
running a full height SPA in subslot 1.
Note
Cisco ASR 1002-F Router
In the Cisco ASR 1002-F Router, the Cisco ASR1002-SIP10-F supports:
•
Three removable half-height SPAs in Bays 1, 2, and 3
•
The fourth SPA is a built-in 4xGE SPA on Bay 0 located on the Cisco ASR 1000 Series RP1
Cisco ASR 1000 Series Router Hardware Installation Guide
106
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002-F Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
