Cisco ASR 1001 Hardware Installation Guide

Connecting the System Cables
Keep the following guidelines in mind when connecting external cables to the Cisco ASR 1006 Router:
•
To reduce the chance of interference, avoid crossing high-power lines with any interface cables.
•
Verify all cabling limitations (particularly distance) before powering on the system.
Attaching Cable Retention Bracket on AC Power Supply
This section explains how to attach the cable retention bracket on AC power supply of the chassis.

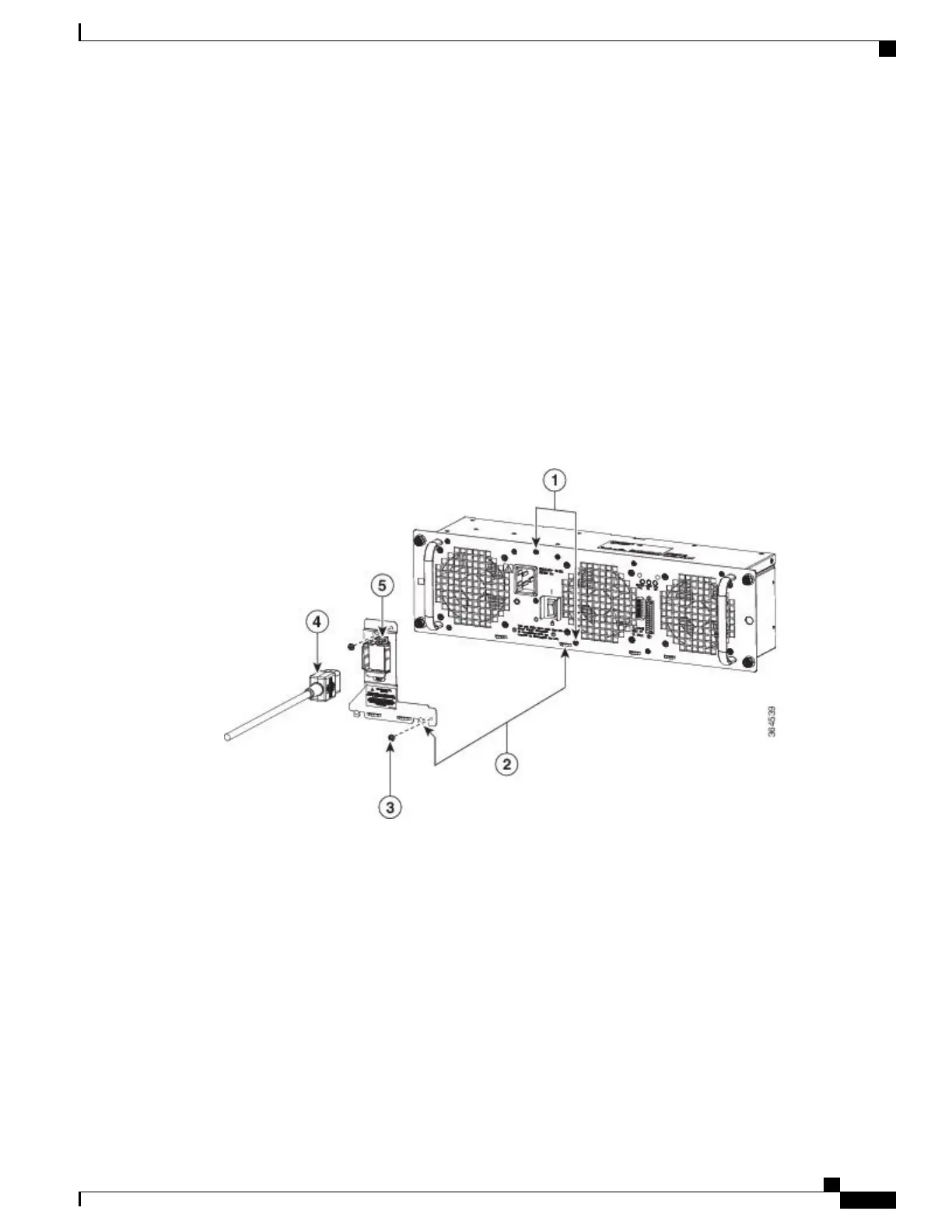

The following shows the cable retention bracket attaching to the AC power supply.
Figure 57: Cable Retention Bracket Attaching to the AC Power Supply
SUMMARY STEPS
1.
Remove the two M3X5mm screws and discard.
2.
Install AC cord retainer by inserting tabs into lance features on panel.
3.
Secure AC cord retainer with two M3X8mm screws included in kit.
4.
Connect AC power cord.
5.
Secure AC cord by tightening retainer screw.
Cisco ASR 1000 Series Router Hardware Installation Guide
179
Cisco ASR 1006 Router Overview and Installation
Connecting the System Cables

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
