Cisco ASR 1001 Hardware Installation Guide

Make certain that the cable-management bracket “U” feature device has the open end pointing upwards when
you attach it to the chassis
Note

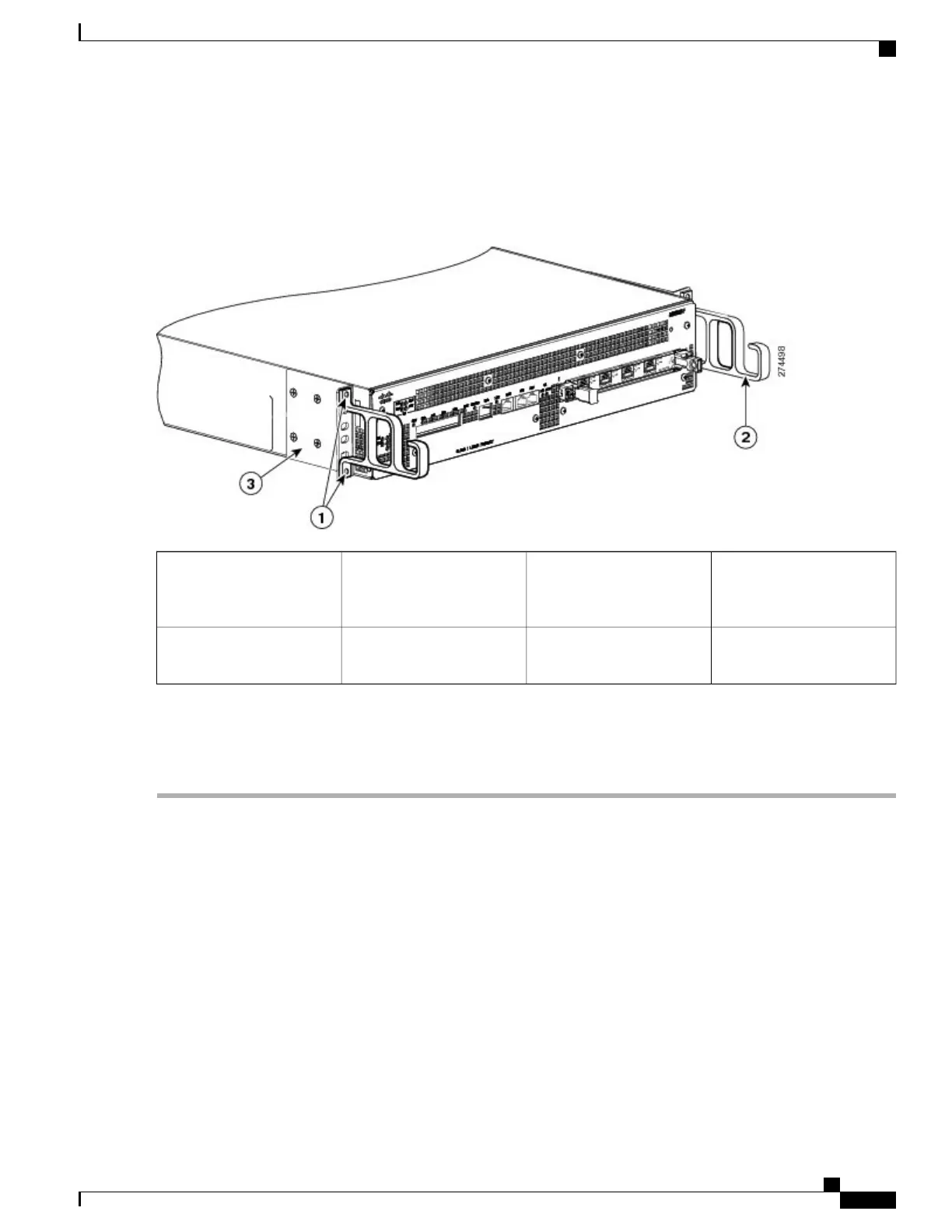

Figure 125: Attaching the Cable-Management Brackets to the Cisco ASR 1002-F Router
Chassis front rack-mount
bracket
3Cable-management bracket
top screw hole and bottom
screw hole
1
——
Cable-management bracket
“U” feature
2
Step 8
Screw the cable-management brackets to each side of the rack-mount brackets already attached to the chassis. Use two
screws for each cable-management bracket.
Step 9
Check that all the screws are securely tightened.
What to Do Next
Go to the Attaching a Chassis Ground Connection, on page 302 to continue the installation.
Rack-Mounting the Cisco ASR 1002-F Router
The Cisco ASR 1002-F Router can be installed in an existing rack with equipment or in an empty rack with
no equipment. The chassis can be mounted in two equipment rack types:
•
Two-post rack, 19-inch or 23-inch equipment rack. Inner clearance (the width between the inner sides
of the two posts or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 3.47 inches
(8.8 cm). Airflow through the chassis is from front to back
.
Cisco ASR 1000 Series Router Hardware Installation Guide
291
Cisco ASR 1002-F Router Overview and Installation
Rack-Mounting the Cisco ASR 1002-F Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
