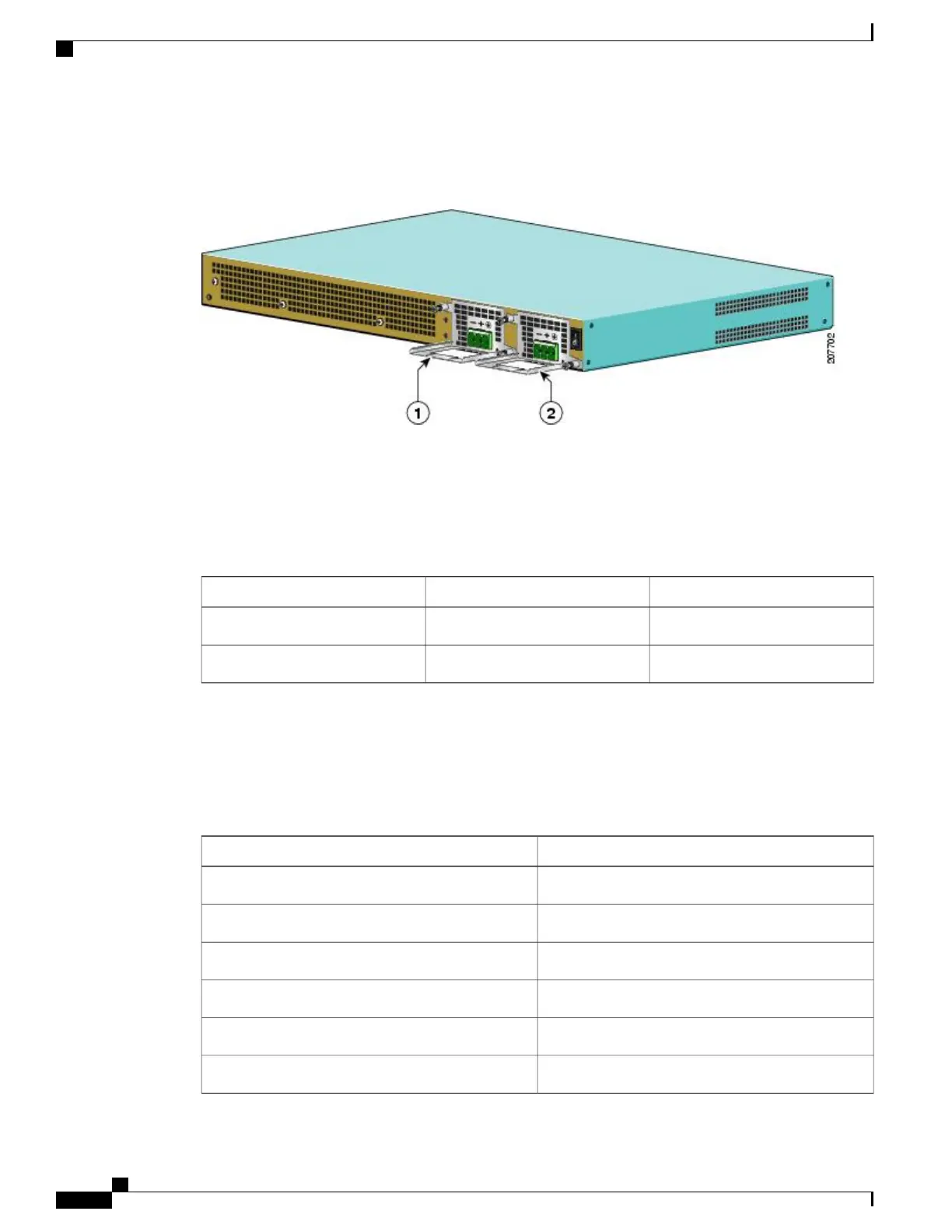

The following image shows the –48 VDC power supplies for the Cisco ASR 1001 Router.
Figure 206: – 48 VDC Power Supply for the Cisco ASR 1001 Router
The output voltage alarm is declared when the output voltage is below the low end of the minimum or above
the high end of the maximum limits. When the output voltage is above the high end of the minimum or below
the low end of the maximum limits, the red state will not be activated.
The following table shows the –48 VDC power supply output voltage alarm ranges.
Table 85: – 48 VDC Power Supply Output Voltage Alarm Threshold Ranges
MaximumMinimumOutput
12.8-13.8V10.0-11.2V12V
None2.6 - 3.0 V3.3V
Power Cords Supported by the Cisco ASR 1001 Router
The following table lists the power cords that are supported by the Cisco ASR 1001 Router.
Table 86: Power Cords Supported by the Cisco ASR 1001 Router
DescriptionPower Cord Item Number
AC Power Cable ANSI 220VAC Right Exit15454-M-ACCBL-R2
Power Cord, 110 V, Right AngleCAB-AC-RA
Plug, Power Cord, Australian, 10 A, Right AngleCAB-ACA-RA
Power Cord China, Right AngleCAB-ACC-RA
Power Cord Europe, Right AngleCAB-ACE-RA
Power Cord, Italian, Right AngleCAB-ACI-RA
Cisco ASR 1000 Series Router Hardware Installation Guide
424
Cisco ASR 1001 Router Overview and Installation
Power Supplies in the Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
