Cisco ASR 1001 Hardware Installation Guide

Slot 3 (U102D)Slot 2 (U100D)Slot 1 (U103D)Slot 0 (U101D)Memory PID Option
4 GB Module4 GB Module4 GB Module4 GB ModuleM-ASR1K-1001-16GB
Ensure that the vendor and manufacturing part number (MPN) for all DIMMs are the same.Note
When upgrading memory from 4 GB to 8 GM, remove all existing memory DIMMS in the Cisco ASR
1001 Router, and then populate the DIMM Slots with the new 8 GB memory upgrade kit.
Note
This section describes how to remove the chassis cover and then remove and replace the Cisco ASR 1001
Router DIMM. The following figure shows the location of the DIMM and eUSB in the Cisco ASR 1001
Router.

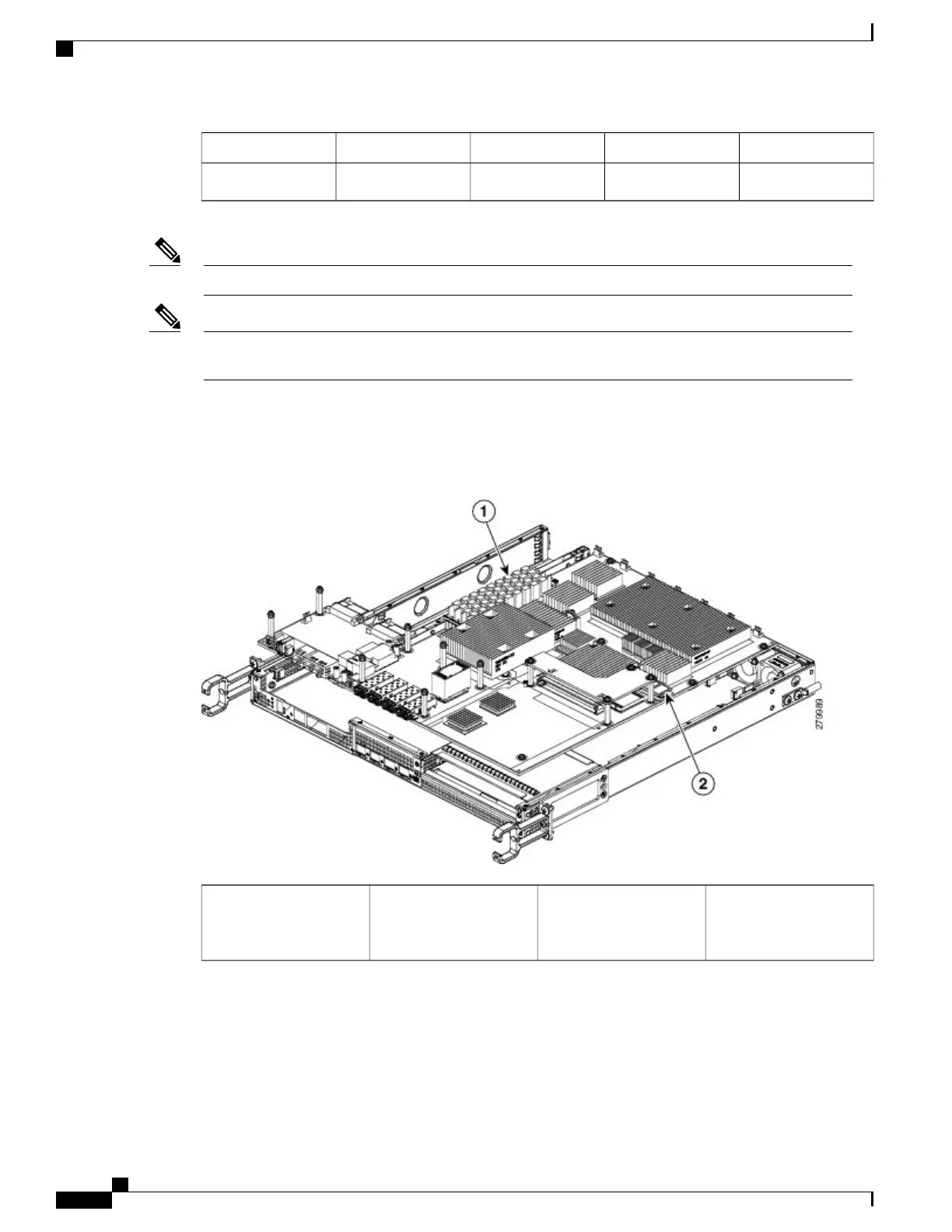

Figure 246: Cisco ASR 1001 Router Internal Component Location
Cisco ASR 1001 Router
eUSB location
2Cisco ASR 1001 Router
DIMM location (four
slots)
1
Removing the Cisco ASR 1001 Router DIMMs
Follow these steps to remove the Cisco ASR 1001 Router DIMM:
Cisco ASR 1000 Series Router Hardware Installation Guide
508
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1001 Router DIMM Memory Modules

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
