Cisco ASR 1001 Hardware Installation Guide

Attaching a Chassis Ground Connection
Connecting the Cisco ASR 1000 Series Router to ground is required for all DC powered installations and any
AC powered installation where compliance with Telcordia grounding requirements is necessary.
The dual-lug chassis stud must be installed, the SIP and SPA must be fully inserted and screwed in and
earthed to prevent a potential hazard in a telecom line.
Caution
Have the recommended tools and supplies available before you begin this procedure.
Recommended Tools and Supplies
The following tools, equipment, and supplies necessary to connect the system ground to the chassis:
•
Phillips screwdriver
•
3.5 mm flat blade screwdriver (Phoenix # 1205053 or equivalent 3.5 mm flat blade)
•
Dual-lug chassis ground component
•
Grounding wire

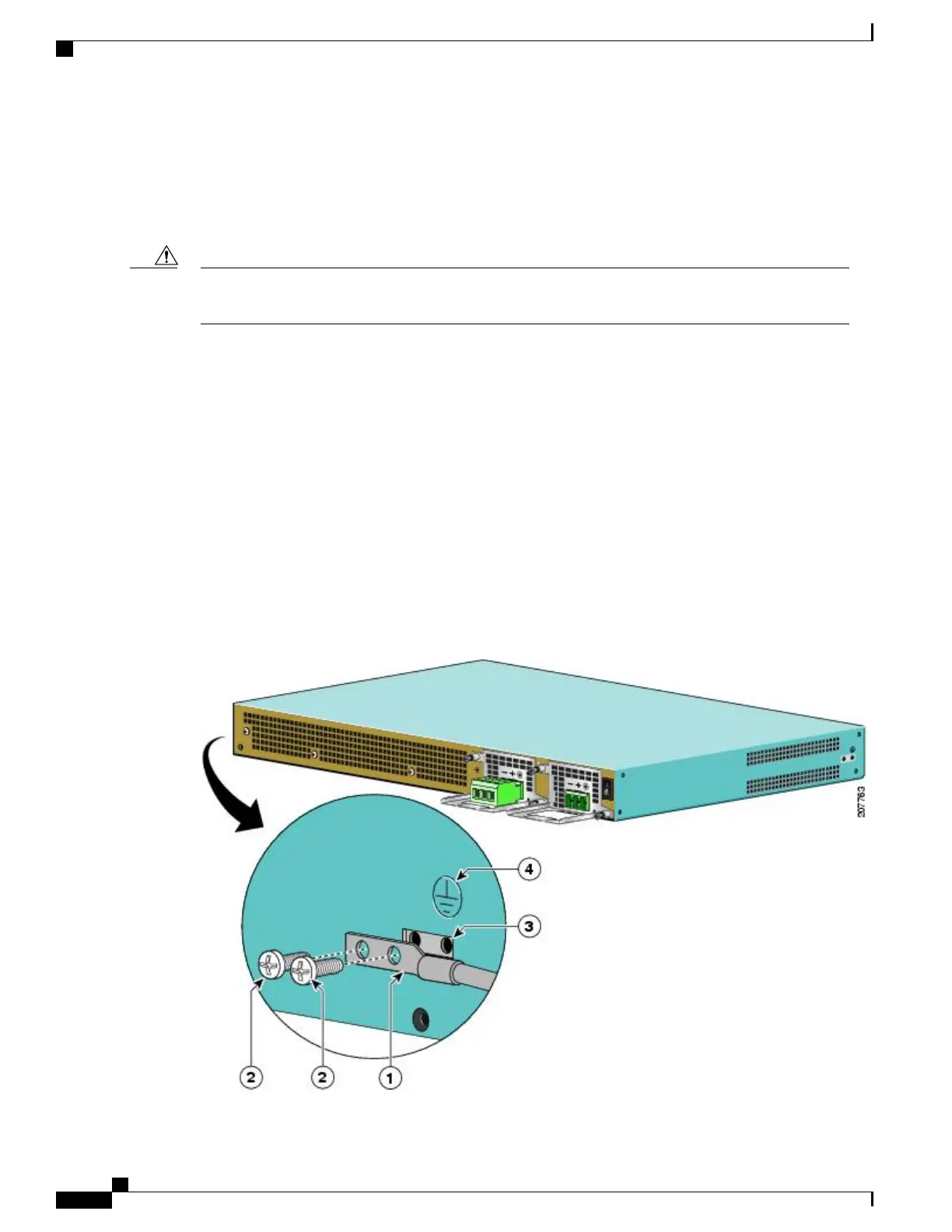

The following image shows how to attach the ground lugs on the Cisco ASR 1000 Series chassis. The location
of the ground lug on Cisco ASR 1000 Series Routers may not be the same on all routers; but the ground lug
attachment instructions are similar.
Cisco ASR 1000 Series Router Hardware Installation Guide
438
Cisco ASR 1001 Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
