Cisco ASR 1001 Hardware Installation Guide

Make certain that the cable-management ‘U’ feature device has the open end pointing upwards when you attach
it to the chassis after the chassis is installed in a rack.
Note

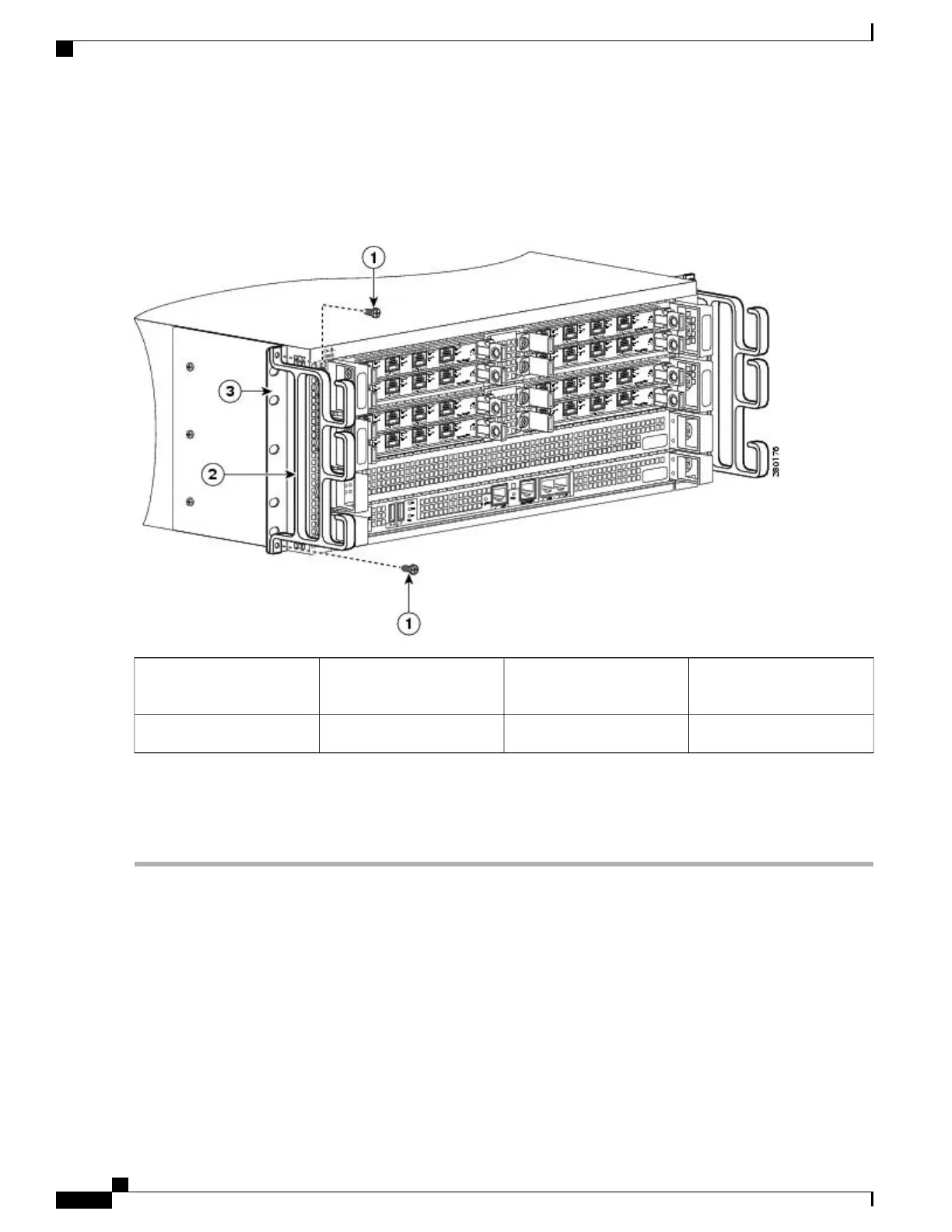

Figure 63: Attaching the Cable-Management Brackets to the Cisco ASR 1004 Router
Chassis front rack-mount
bracket ear
3Cable-management bracket
screws
1
——
Cable-management bracket2
Step 6
Screw the cable-management bracket to each side of the rack-mount brackets already attached to the chassis. Use two
screws for each cable-management bracket. Use the package of four screws.
Step 7
Check that all screws are securely tightened.
What to Do Next
You have completed a tabletop or equipment shelf chassis installation. Go to the Attaching a Chassis Ground
Connection, on page 201 to continue the installation.
Rack-Mounting the Cisco ASR 1004 Router
The Cisco ASR 1004 Router can be installed with both front or rear rack-mount brackets.
Cisco ASR 1000 Series Router Hardware Installation Guide
190
Cisco ASR 1004 Router Overview and Installation
Rack-Mounting the Cisco ASR 1004 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
