Cisco ASR 1001 Hardware Installation Guide

Cisco ASR 1002-F Router Description
The Cisco ASR 1002-F Router is one of the Cisco ASR 1000 Series Aggregation Services Routers. The Cisco
ASR 1002-F Router supports all the general-purpose routing and security features of the Cisco ASR 1002
Router, and uses the same internal control and data-plane architecture as Cisco ASR 1002 Router.
The Cisco ASR 1002-F Router supports:
•
The same features and components as the Cisco ASR 1002 Router
•
An integrated 4xGE SPA interface
•
Fixed 2.5 GB of system bandwidth and 4 GB DRAM
•
A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0
.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002 Built-in Gigabit
Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in Cisco ASR 1000 Series
Aggregation Services Routers SIP and SPA Hardware Installation Guide .
Only Cisco software release four code supports the Cisco ASR 1002-F Router. Do not use earlier versions
of Cisco software.
Note
This section contains the following topics:
Front View
Figure 115: Cisco ASR 1002-F Router—Front View, on page 276 shows the front of the Cisco ASR 1002-F
Router with the Cisco ASR 1002-ESP-F, Cisco ASR 1000 route processor, and a SPA-4XOC12-POS installed.

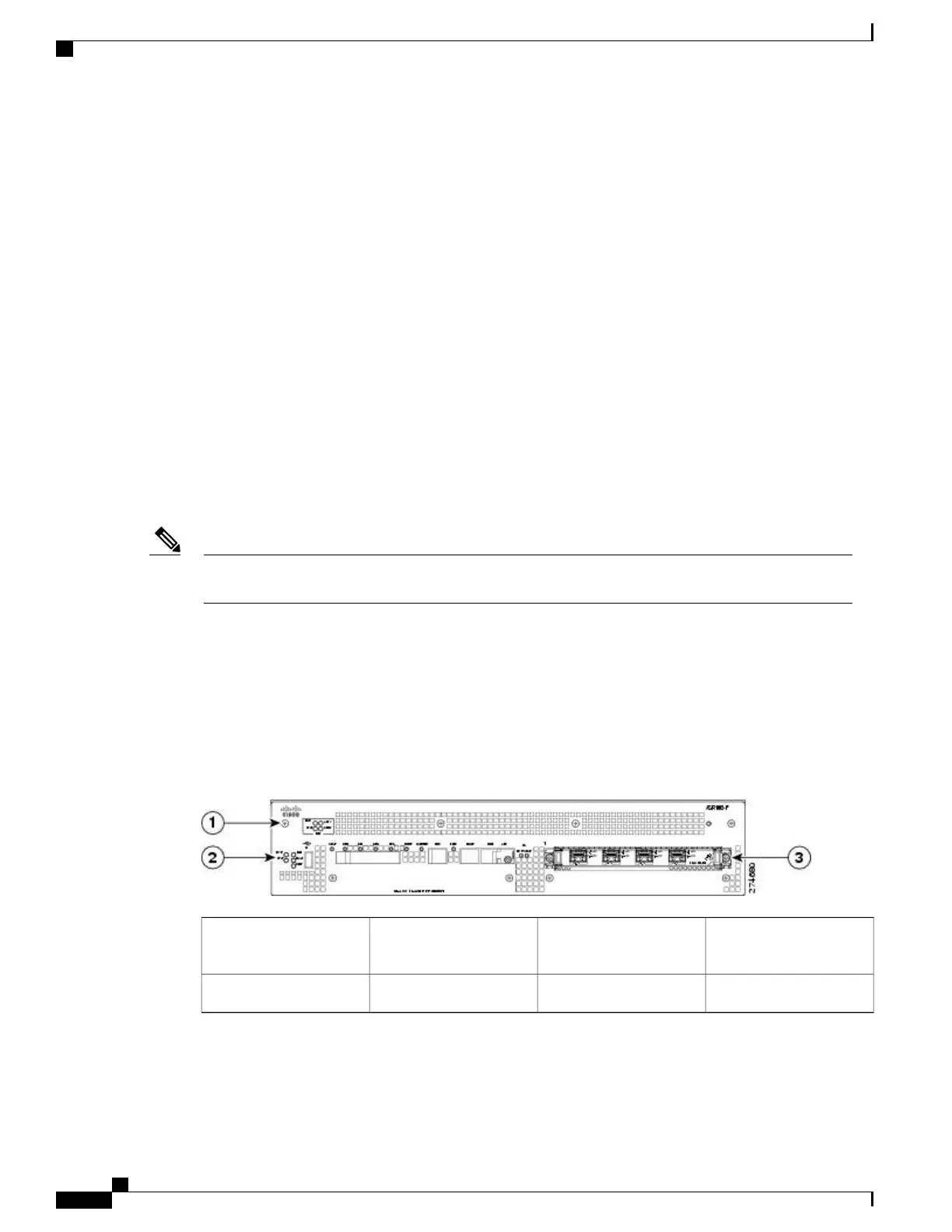

Figure 115: Cisco ASR 1002-F Router — Front View
Cisco ASR 1002-SIP10-F
with a SPA installed
3Integrated Cisco ASR
1002-ESP-F
1
——
Integrated Cisco RP2
Cisco ASR 1000 Series Router Hardware Installation Guide
276
Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Description

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
