The following image shows front and rear rack-mounting of the Cisco ASR 1001 Router on a four-post rack.

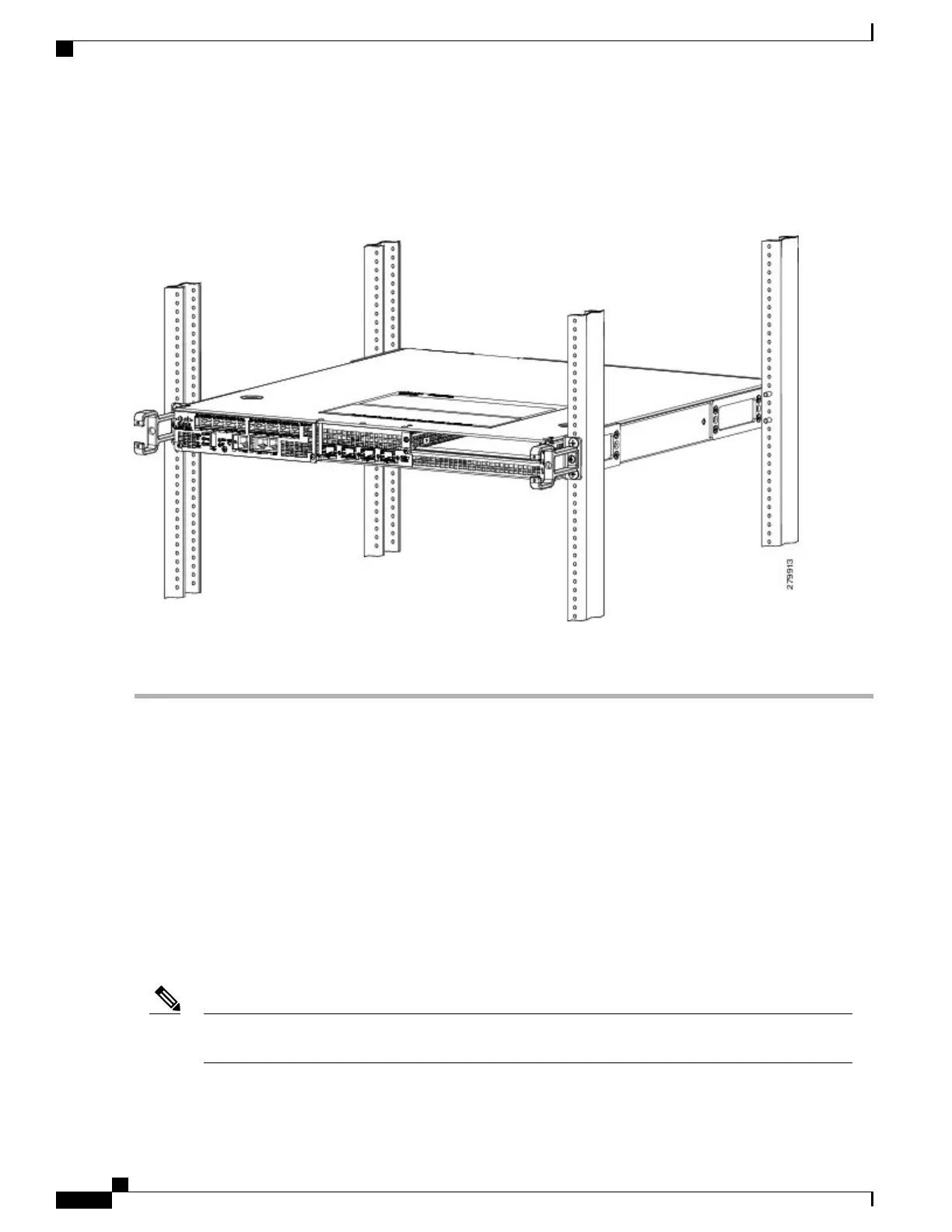

Figure 211: Cisco ASR 1001 Router in a Four Post Rack — Front and Rear Rack-Mounting
Step 6
Use a level to verify that the tops of the two brackets are level, or use a measuring tape to verify that both brackets are
the same distance from the top of the rack rails.
What to Do Next
This completes the procedure for installing the chassis in the rack. Proceed to the Attaching the
Cable-Management Bracket, on page 436 to continue the installation.
Attaching the Cable-Management Bracket
The cable-management brackets mount to each rack-mount bracket on the chassis to provide cable-management
to both sides of the chassis (parallel with card orientation). These brackets are screw mounted to the rack-mount
brackets to allow easy installation and removal of cables.
The cable-management brackets for the Cisco ASR 1001 Router contain one independent cable-management
“U” type features with four screws and provides cable dressing of each card module slot.
Make certain that the cable-management bracket “U” type feature is facing upwards when you attach it to
the chassis.
Note
Cisco ASR 1000 Series Router Hardware Installation Guide
436
Cisco ASR 1001 Router Overview and Installation
Attaching the Cable-Management Bracket

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
