The following image shows the +24 VDC power supply for the Cisco ASR 1002 Router.

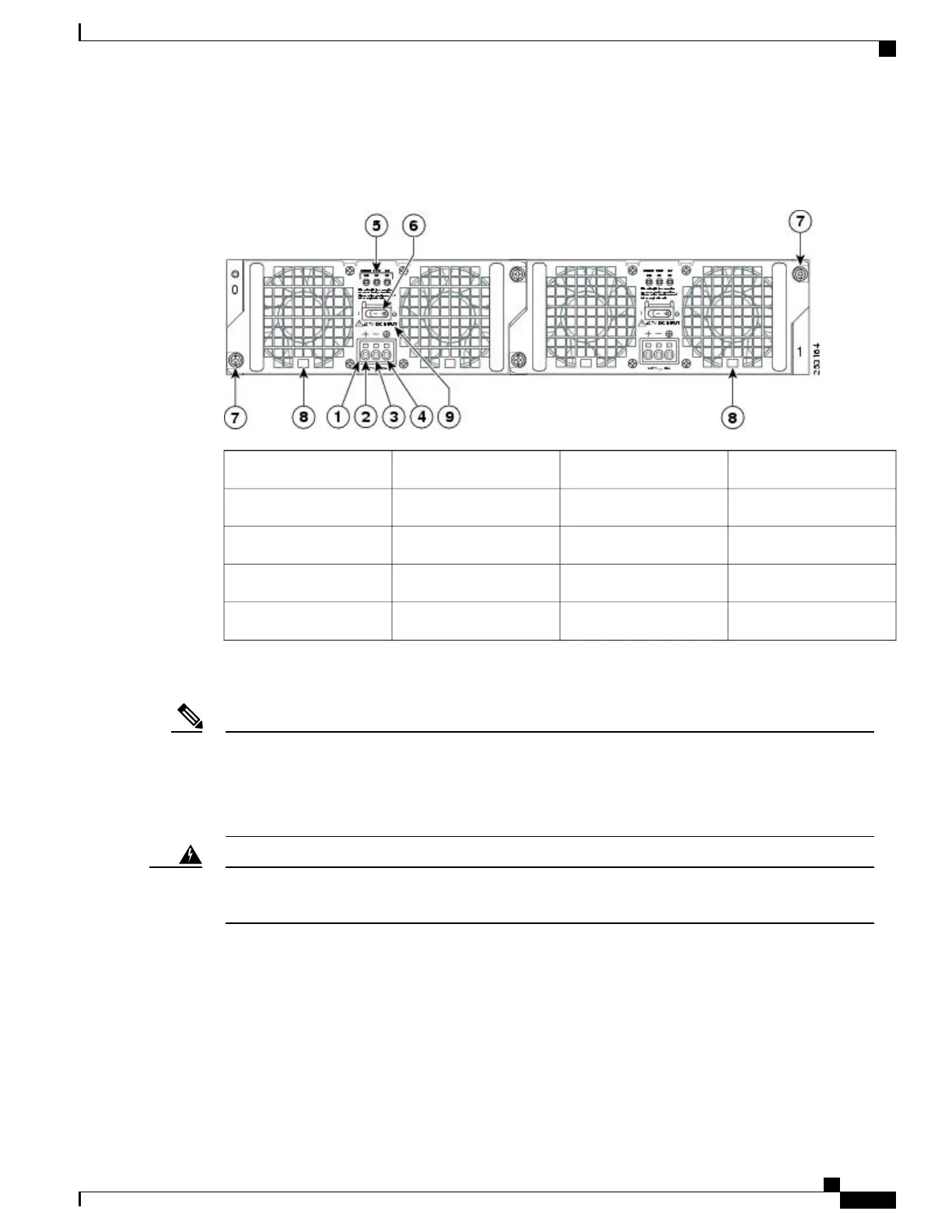

Figure 106: +24 VDC Power Supply for the Cisco ASR 1002 Router Components
Standby/On switch6+24 VDC terminal block1
Captive fastener7Positive (+) lead2
Power supply tabs8Negative (-) lead3
+27 VDC INPUT label9Ground (GND) lead4
——
Power supply LEDs5
This section describes how to connect the +24 VDC power supply in the Cisco ASR 1002 Router.
The color coding of the +24 VDC input power supply leads depends on the color coding of the +24 VDC
power source at your site. Typically, green or green/yellow is used for ground. Make certain the lead color
coding you choose for the +24 VDC input power supply matches lead color coding used at the +24 VDC
power source. Most commonly used wire color-coding is red for positive (+) lead and black for negative
(–) lead.
Note
When you install the unit, the ground connection must always be made first and disconnected last. Statement
1046
Warning
To connect +24 VDC power supply in the Cisco ASR 1002 Router, follow these steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
265
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
