Cisco ASR 1001 Hardware Installation Guide

——
Lead wire stripping area1
Remove the covering from exactly the specified length of each wire. If you strip too much of the covering,
exposed wire protruding from the terminal block will create an electrical hazard. If you strip too little of the
covering, the wire might not make a good contact with the terminal, or it might not be held securely in place
in the terminal.
Warning
Step 4
Using a 3.5mm screwdriver, insert the screwdriver at an angle to release the spring while you install the stripped lead
wire as shown in the image.

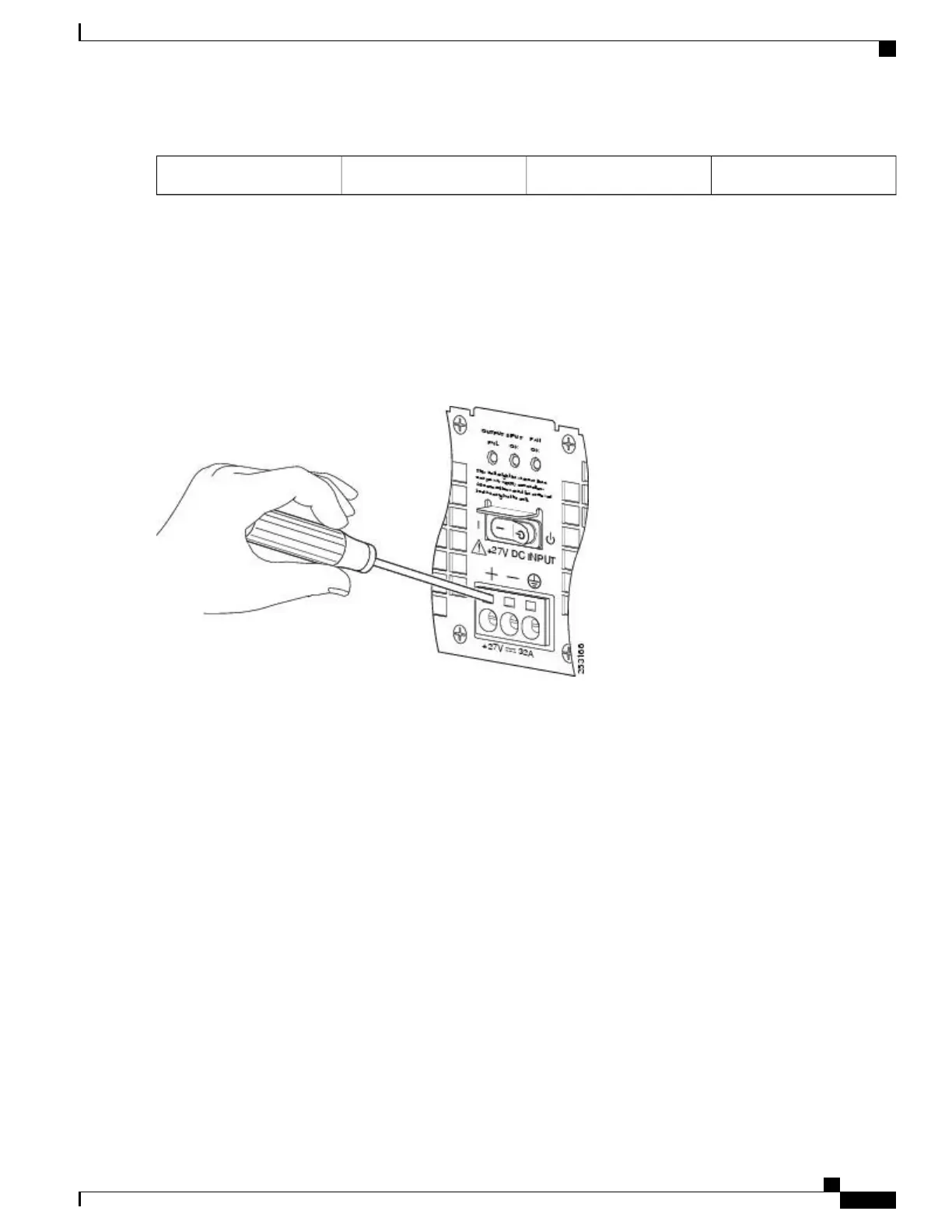

Figure 108: Inserting a Screwdriver Into the +24 VDC Power Supply Terminal Block
Step 5
Carefully push the screwdriver at an angle forward until you relieve the spring contact.
Step 6
With the screwdriver still inserted, gently push the lead wire (ground lead first) in until the copper wire, as shown in the
image, is no longer visible (see in the following image).
Check that there is no copper portion of the lead wire exposed. You only want the wire insulation visible.Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
267
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
